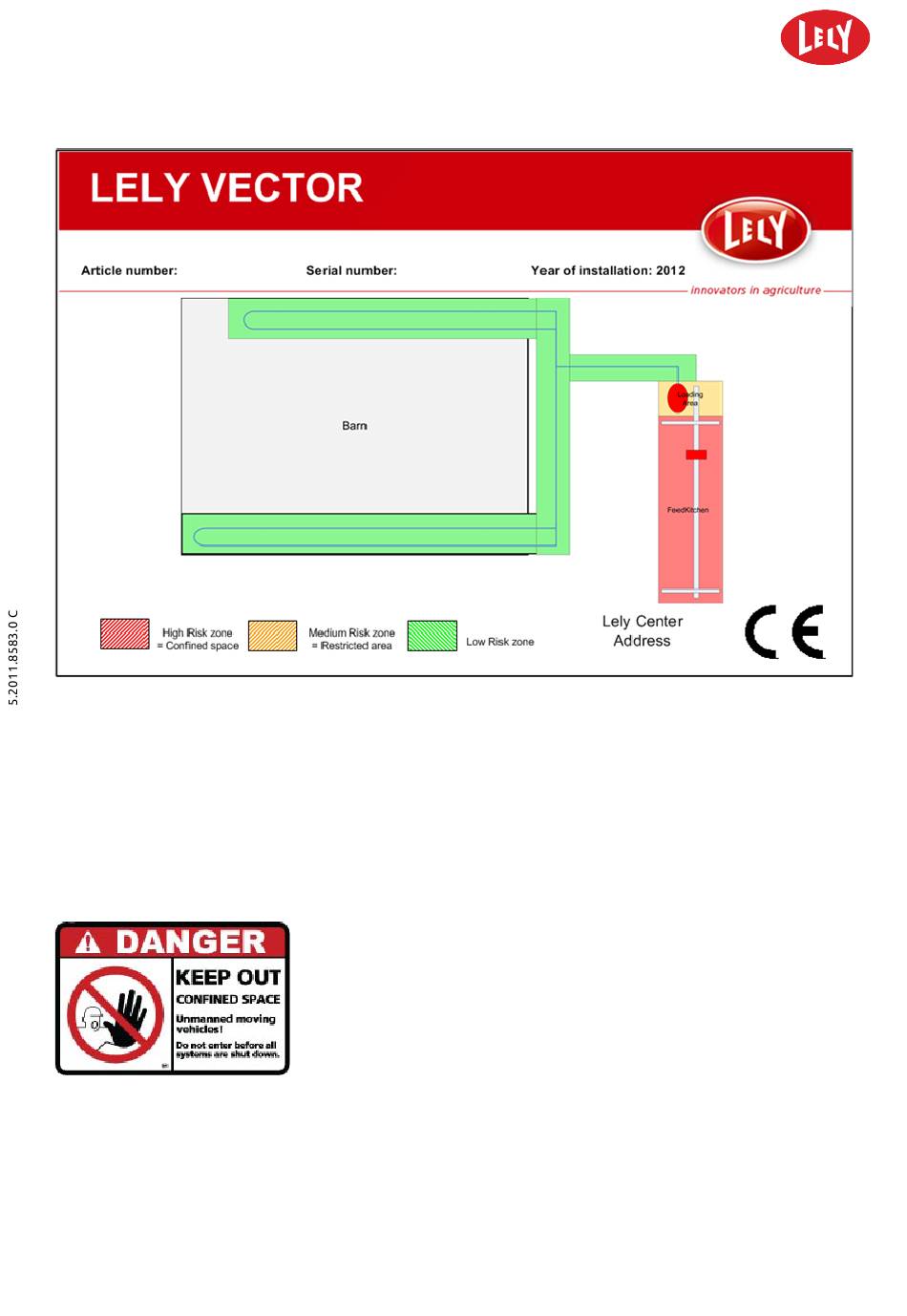

Figure 18. Example of Vector type plate
2.5.2

Red Zone - High Risk Zone

The feed kitchen is marked on the Vector type plate (see figure 18 on page 2-27) as a red zone. Persons
are not admitted in this red zone because of the moving:
Feed Grabber
•
• Bridge Crane
To mark the red zone the following decal is attached at the entrance(s) of the feed kitchen:
2.5.3

Yellow Zone - Medium Risk Zone

The feed loading zone and small passages are marked on the Vector type plate (see figure 18 on page 2-
27) as a yellow zone. In this zone persons (or animals) risk being trapped by the Mixing and Feeding Robot.
In that case the Mixing and Feeding Robot is stopped when:
Safety
in n o vato rs in ag ric u ltu re
2-27
