Hydraulic Schematic - SPX FLOW Bolting Systems PE55TWP-4-BS Operating Instructions And Parts List Manual

1
M
HP
LP
© SPX FLOW, Inc.

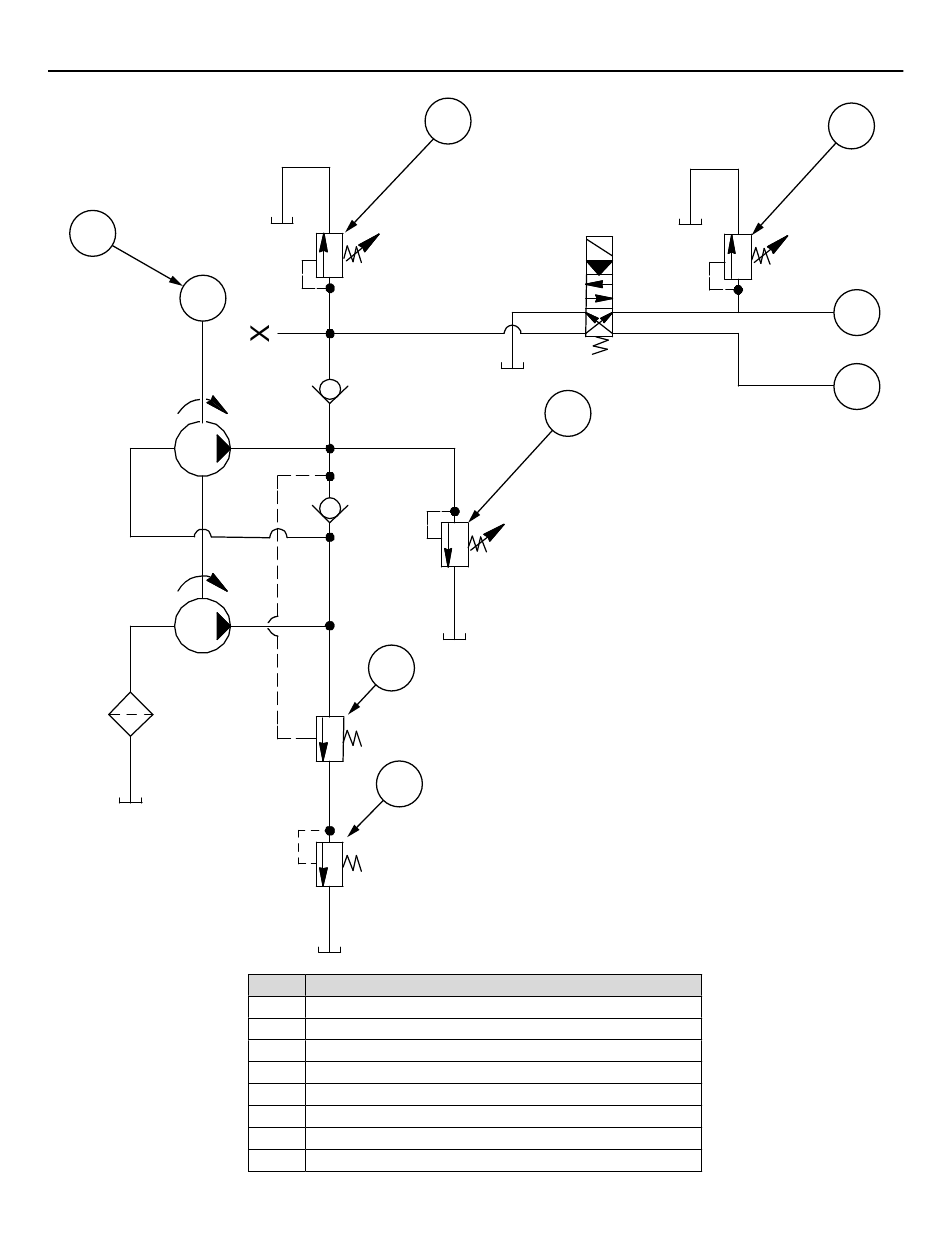

HYDRAULIC SCHEMATIC

2
7
8
ITEM
1 MOTOR
2 HIGH PRESSURE RELIEF VALVE 717 BAR (10,400 PSI)
3 RETRACT PORT PRESSURE CONTROL 110 BAR (1,600 PSI)
4 RETRACT
5 ADVANCE
6 EXTERNAL PRESSURE REGULATOR 703 BAR (10,200 PSI)
7 LOW PRESSURE UNLOADING VALVE 69 BAR (1,000 PSI)
8 SUPERCHARGE PRESSURE REGULATOR 14 BAR (200 PSI)
T B
P
A
6
DESCRIPTION
20
3
4
5
Form No. 1000679
Rev. 7 Nov. 6, 2023
