Hydraulic Schematic - SPX FLOW Power Team PE55TWP-E110 Operating Instructions Manual

M
HP
LP
© SPX FLOW, Inc.

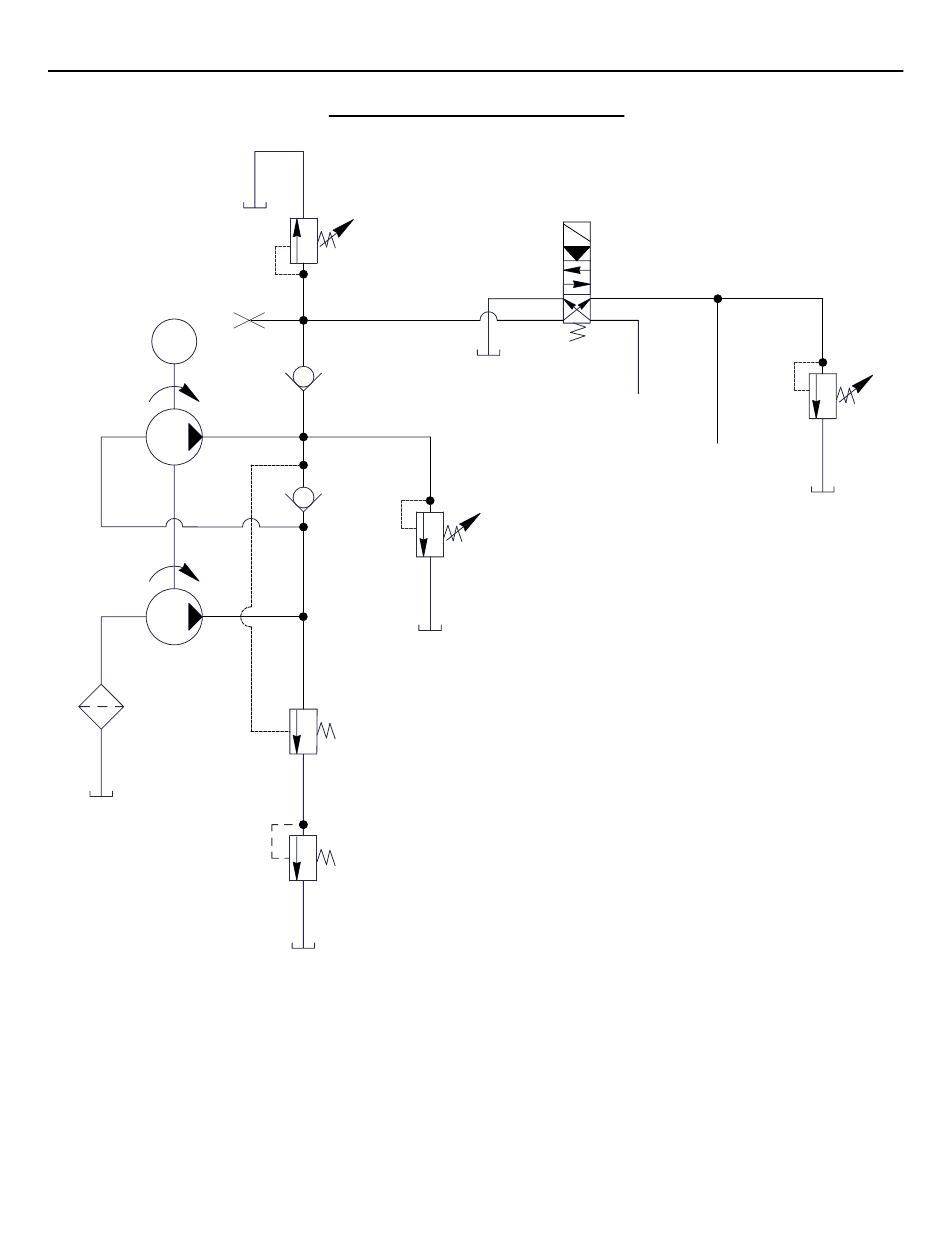

HYDRAULIC SCHEMATIC

For PE55TWP and PE55TWP-220
High Pressure
Relief Valve 720 bar
(10,400 PSI)
External Pressure
Regulator 705 bar
(10,200 PSI)
Low Pressure Unloading
Valve 69 bar (1,000 PSI)
Supercharge Pressure
Regulator 15 bar (200 PSI)
21
T B
P A
Advance
Retract
Form No. 1000090
Rev. 5 Nov. 6, 2023
