Parts List Continued
11
ITEM PART NO.
1 10177
2 251599
3
4
5 3000113BK
6 351095
7 251906
8 10575
9 40164
10 350925
11 250447
© SPX FLOW, Inc.

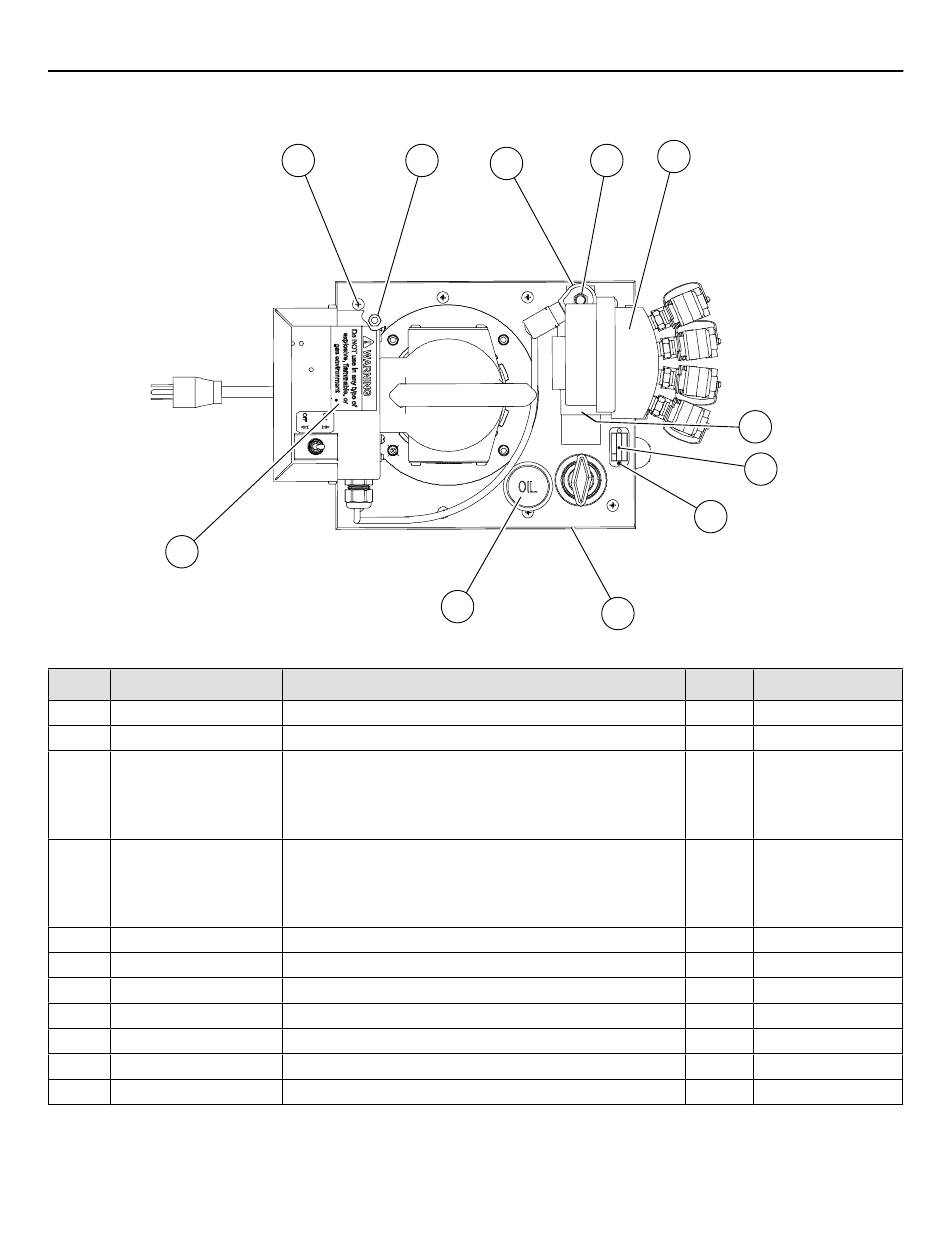

Basic Pump Assembly Top View
1 2
10
DESCRIPTION
ROUND SCREW
BREATHER FILTER VENT
DIRECTIONAL VALVE
VALVE GASKET
PRODUCT NAME PLATE
DRIVE SCREW
RESERVOIR RECT GASKET
FILLER CAP
DECAL, WARNING NO USE HAZ ENVIROMENT
23
5
4
3
9
6
7
8
QTY. NOTES
10
1
Torque cartridge
valve body to
12-14 Nm
(110-120 in-lbs)
Torque valve
solenoid retaining
nut to �6 Nm
(5 in-lbs)
1
1
1
2
1
1
1
