SPX FLOW PE8 Series Operating Instructions Manual
SPX FLOW PE8 Series Operating Instructions Manual

SPX FLOW PE8 Series Operating Instructions Manual

Electric-powered hydraulic pump

Advertisement

Quick Links

SPX FLOW US, LLC
5885 11th Street
Rockford, IL 61109-3699 USA
spxflow.com/bolting-systems
© SPX FLOW, Inc.
Tech Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031
Electric-Powered
PE8 Series
Hydraulic Pump
Operating Instruction For:

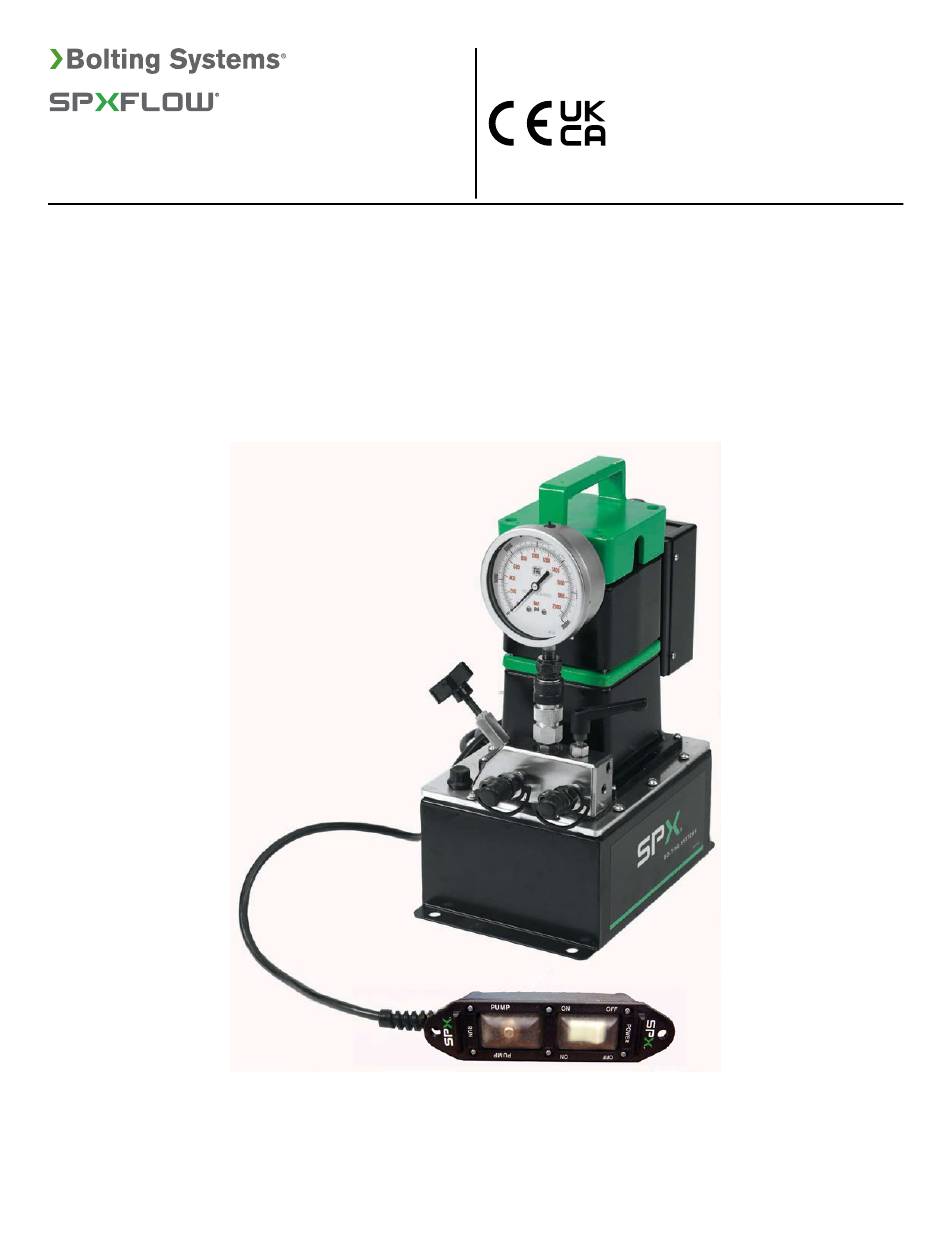

PE8LXX3L
PE8PXX3L
Form No.
1000591
Rev. 2
May. 30, 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the PE8 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SPX FLOW PE8 Series

  • Page 1 Operating Instruction For: PE8LXX3L PE8PXX3L Tech Services: (800) 477-8326 SPX FLOW US, LLC Fax: (800) 765-8326 5885 11th Street Rockford, IL 61109-3699 USA Order Entry: (800) 541-1418 spxflow.com/bolting-systems Fax: (800) 288-7031 Electric-Powered PE8 Series Hydraulic Pump © SPX FLOW, Inc.
  • Page 2 TABLE OF CONTENTS DESCRIPTION ���������������������������������������������������������������������������������������������������������������������������������������������������� 2 PE8 Series Electric/Hydraulic Pumps ������������������������������������������������������������������������������������������������������� 2 SAFETY SYMBOLS AND DEFINITIONS ��������������������������������������������������������������������������������������������������������� 3 SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������� 3 Pump ��������������������������������������������������������������������������������������������������������������������������������������������������������� 3 Electric Motor �������������������������������������������������������������������������������������������������������������������������������������������� 4 Hoses �������������������������������������������������������������������������������������������������������������������������������������������������������� 4 INITIAL SETUP �������������������������������������������������������������������������������������������������������������������������������������������������� 5 OPERATING INSTRUCTIONS ������������������������������������������������������������������������������������������������������������������������ 11 PERFORMANCE SPECIFICATIONS �������������������������������������������������������������������������������������������������������������...
  • Page 3 PE8 SERIES ELECTRIC/HYDRAULIC PUMPS Description : The PE8 series hydraulic pumps are designed to have a maximum of 1500 bar (21,750 psi) at a flow rate of 131 cc/min (8 cu. in/min). All pumps come fully assembled, less fluid, and ready for work.
  • Page 4 • Retract the system before adding fluid to prevent overfilling the pump reservoir. An overfill can cause personal injury due to excess reservoir pressure created when cylinders are retracted. © SPX FLOW, Inc. Form No. 1000591 Rev. 2...
  • Page 5 Consult the manufacturer before painting a hose. Never paint the couplers. Hose deterioration due to corrosive materials may result in personal injury. © SPX FLOW, Inc. Form No. 1000591 Rev.
  • Page 6 The electric motor is wired for nominal 115 or nominal 230 volts, 50/60 Hz� Nominal 230 volt electric motors are shipped without a plug attached� Please obtain and install the applicable plug for your area� © SPX FLOW, Inc. Form No.
  • Page 7 Maximum Hyd. Pressure 0-8 m 8-15 m 15-30 m 30-46 m 0-25 ft 25-50 ft 50-100 ft 100-150 ft 0.75 0.75 Table 2. Minimum Recommended Gauge Table © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 8 Figure 6. Pump RUN turn off� 6� See Figure 4� Press the STOP (red) switch to remove power from the pendant� © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 9 To remove the air: 3� See Figure 9� Open the filler cap two full turns� Figure 9. Filler Cap © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 10 Stop (Red) Lamp (White) Start (Green) Figure 12. Power Switch 8� See Figure 13� Using the pendant, press the POWER rocker switch to ON� Figure 13. Power ON © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 11 Figure 15. Release Position 11� See Figure 16� Press the STOP (red) switch to remove power from the pendant� Item Description Stop (Red) Lamp (White) Start (Green) Figure 16. Power Switch © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 12 : To help prevent personal WARNING injury, check the voltage rating Figure 19. Connected to Power Source on the motor nameplate to be sure the outlet has the appropriate voltage. © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 13 8� See Figure 23� To release the pressure, rotate the system pressure manual release valve to the release (lever away from the motor) position� HOLD HOLD RELEASE RELEASE Figure 23. Release Position © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 14 1� See Figure 25� Turn the pressure regulating knob a few turns in the counterclockwise direction� This decreases the pressure� INCR + INCR - DECR DECR Figure 25. Pressure Regulating Valve © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 15 5� See Figure 28� Using the pendant, press the POWER switch to ON� 6� See Figure 29� Press and hold the PUMP RUN switch� Figure 28. Power ON Figure 29. Pump RUN © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 16 8� Cycle the system several times to verify the pressure is set correctly� NOTE: Pressure is retained until it is released with system pressure manual release Figure 30. Pressure Regulating Valve lever. © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 17 (1,000 psi) (5,000 psi) (21,750 psi) PE8 Series 1500 bar 15-13 15-13 13-11 (21,750 psi) * Typical delivery. Actual flow varies with field conditions. Table 4. Fluid Pressure Chart © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 18 300 hours of use� The frequency of fluid changes depends upon general working conditions, severity of use, the overall cleanliness and care given to the pump� Fluid should be changed more frequently when the system is not operated regularly indoors� © SPX FLOW, Inc. Form No. 1000591 Rev.
  • Page 19 9� Remove the filler cap and insert a clean funnel with a filter� Figure 33. Filter Screen 10� Fill the reservoir with hydraulic fluid to 2�6 cm (1 in�) from the cover plate� © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 20 18� Fill the reservoir� See Filling the Pump Reservoir� 19� See Figure 35� Remove the protective backing and install the new reservoir gasket with the adhesive side down� Figure 35. Reservoir Gasket © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 21 Figure 37. 80W90 Oil Level 22� See Figure 38� Clean motor gasket surfaces and install new motor gasket� 23� Position the motor assembly back onto the pump assembly� Figure 38. Motor Gasket © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 22 @ 38°C (237 SUS @ 100°F) or equivalent� If low temperature requirements are needed, use hydraulic fluid 5�1 cSt @ 100°C (451 cSt @ Figure 41. Filler Cap -40°C)� Fill to the proper level� © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 23 4.7 mm (3/16" or less) 4.7 mm (3/16") or less less� 3� Install brush assemblies and brush holder caps� 22 mm (7/8") 22 mm (7/8") (new) (new) Figure 43. Brush Inspection © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 24 2� Contact a SPX Hydraulic Technologies Service Center� Pump delivers excess fluid 1� Faulty pressure gauge� 1� Replace gauge� pressure. 2� Relief valve set incorrectly� 2� Contact a SPX Hydraulic Technologies facility� © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 25 Seal leaking pipe fittings with pipe sealant� 2. Loose fittings. 2. Tighten fittings. 3� Internal check is leaking� 3� Contact a SPX Hydraulic Technologies Service Center� © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 26 3� Attached component sticking or 3� Refer to manufacture's information for binding� attached component� 4� Malfunctioning valve� 4� Verify connections� Contact authorized SPX Hydraulic Technologies facility� © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 27 15A time delay 250VAC 5x20mm fuse, 230V (nominal) replace 10A time delay 250VAC 5x20mm fuse. 4� To install, reverse the removal procedure� Figure 45. External Fuse Holder Cap © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 28 Corpus Christi, Texas USA India India Australia Australia 318 Centaurus Street 318 Centaurus Street SPX Flow Technology (India) Pvt� SPX Flow Technology (India) Pvt� SPX Flow Technology Austra- SPX Flow Technology Austra- Corpus Christi, Texas 78405 USA Corpus Christi, Texas 78405 USA Limited...
  • Page 29 European Community Directive(s) and Standard(s) as per the currently valid revision. The Netherlands SPX Hydraulic Technologies is certified and registered to ISO 9001: 2015. The Netherlands September 1 , 2020 ------------------------------------------ Andreas J. Klemm, PhD © SPX FLOW, Inc. Form No. 1000591 Rev. 2 May. 30, 2022...
  • Page 30 Ocean House, Wilmslow Road UK Legislation and international Standard(s) as per the currently valid revision. Manchester, M20 2LY, UK SPX FLOW Europe Ltd. - Netherlands is certified and registered to ISO 9001: 2015. Andreas J. Klemm SPX Flow Europe Ltd. – Netherl.
