Parts List Continued
ITEM PART NO.
14 20786
15
16
17 61901WH2

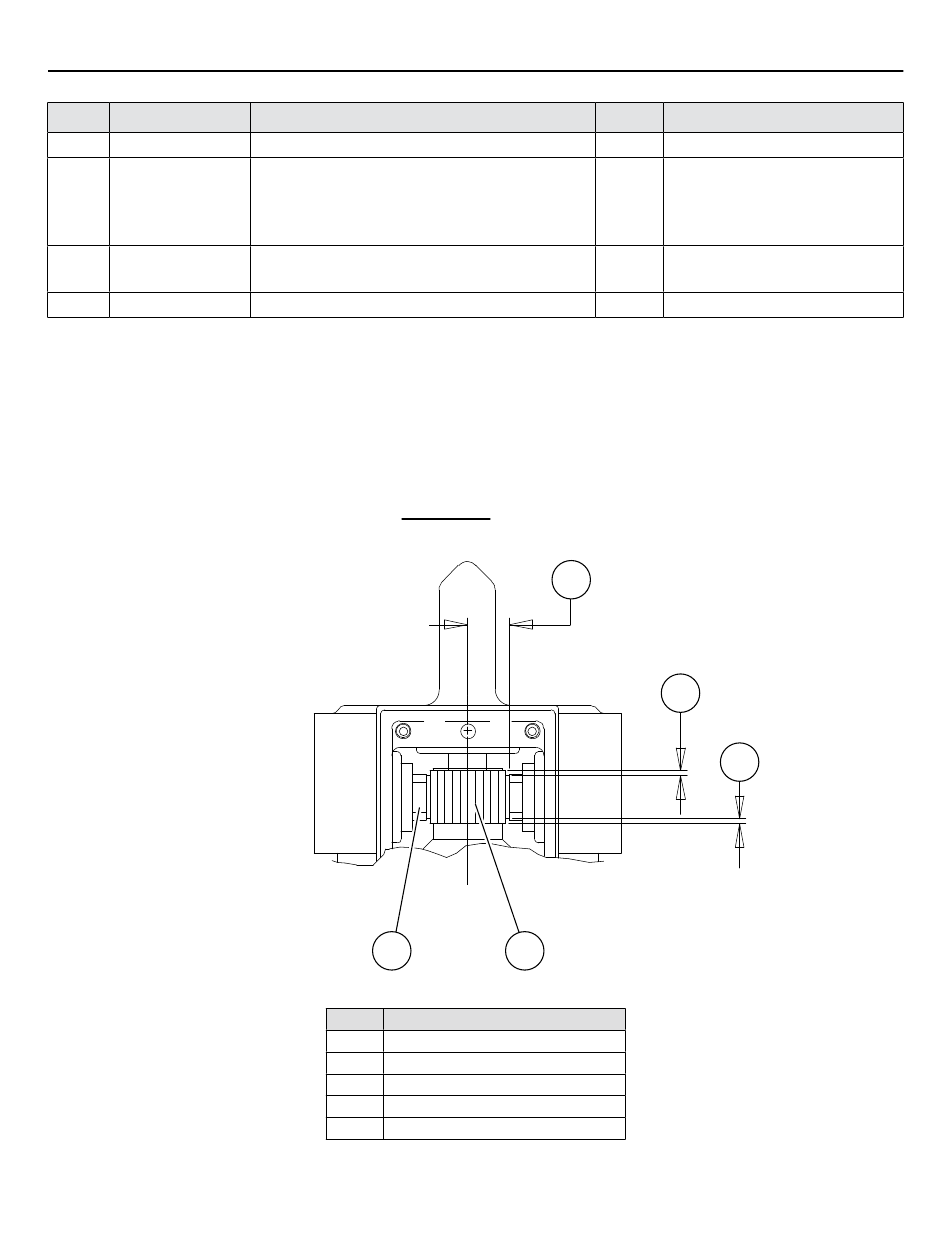

Brush Holder and Armature Installation Specifications
When replacing brushes or the armature, the dimensions shown must be specified.
© SPX FLOW, Inc.
DESCRIPTION
BAFFLE PLATE
MOTOR SHELL

Brush Holder

VIEW "A-A"
5
ITEM
1 17-18 MM (�677 - �702) BOTH SIDES
2 �51 MM (�020) MINIMUM TYPICAL
3 �51 MM (�020) MINIMUM TYPICAL
4 ARMATURE
5 BRUSHES
QTY.
1
1
1
4
DESCRIPTION
34
NOTES
Line leads must be rotated
through the rectangular
opening in the motor shell
casing�
Insert flag terminals into
adjacent brush holders�
2
3
Form No. 1000679
Rev. 7 Nov. 6, 2023
