2 PANEL DESCRIPTION

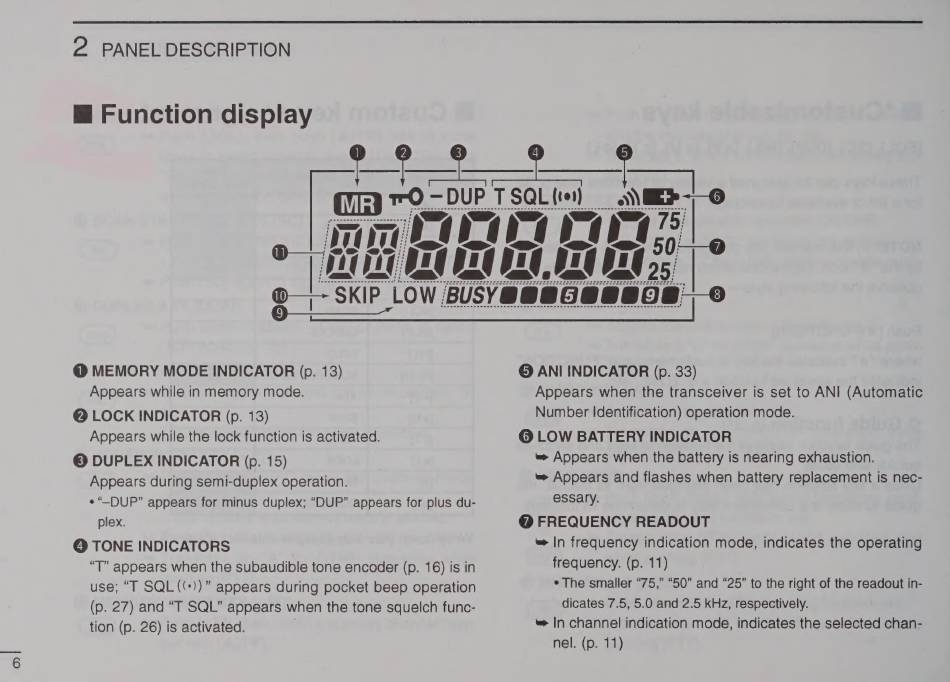

@ Function display
pe cenncnnceenennna---y!
@ MEMORY MODE INDICATOR (p. 13)
Appears while in memory mode.
@ LOCK INDICATOR (p. 13)
Appears while the lock function is activated.
© DUPLEX INDICATOR (p. 15)
Appears during semi-duplex operation.
e"—DUP" appears for minus duplex; "DUP" appears for plus du-
plex.
@ TONE INDICATORS
"T" appears when the subaudible tone encoder (p. 16) is in
use; "T SQL((+))" appears during pocket beep operation
(p. 27) and "T SQL" appears when the tone squelch func-
tion (p. 26) is activated. .
ea
o)) ~-@
L (tos)
© ANI INDICATOR (p. 33)
Appears when the transceiver is set to ANI (Automatic
Number Identification) operation mode.
© LOW BATTERY INDICATOR
» Appears when the battery is nearing exhaustion.
> Appears and flashes when battery replacement is nec-
essary.
@ FREQUENCY READOUT
> In frequency indication mode, indicates the operating
frequency. (p. 11)
¢ The smaller "75," "50" and "25" to the right of the readout in-
dicates 7.5, 5.0 and 2.5 kHz, respectively.
» In channel indication mode, indicates the selected chan-
nel. (p. 11)
