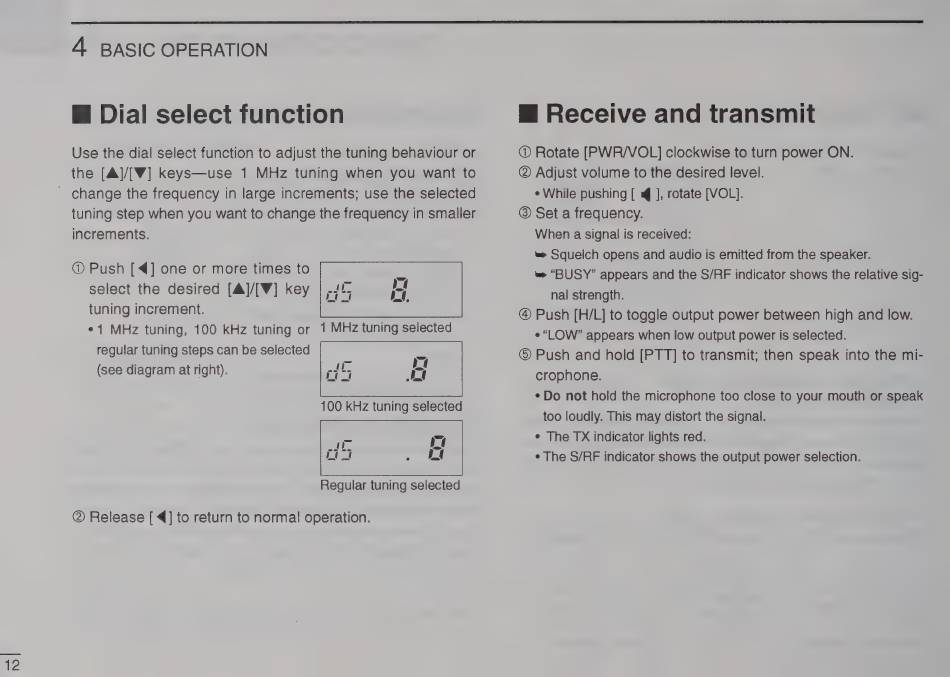

4 BASIC OPERATION
— Dial select function
Use the dial select function to adjust the tuning behaviour or
the [A]/[W] keys—use 1 MHz tuning when you want to
~ change the frequency in large increments; use the selected
tuning step when you want to change the frequency in smaller
increments.
@® Push [4] one or more times to petty
select the desired [A]/[W] key
tuning increment.
¢1 MHz tuning, 100 kHz tuning or 1 MHz tuning selected
regular tuning steps can be selected
(see diagram at right). ty x
r
Li A o l
Regular tuning selected
@ Release [ €] to return to normal operation.
@ Receive and transmit
@ Rotate [PWR/VOL] clockwise to turn power ON.
@ Adjust volume to the desired level.
¢ While pushing [ ], rotate [VOL].
@ Set a frequency.
When a signal is received:
> Squelch opens and audio is emitted from the speaker.
= "BUSY" appears and the S/RF indicator shows the relative sig-
nal strength.
@ Push [H/L] to toggle output power between high and low.
e "LOW" appears when low output power is selected.
© Push and hold [PTT] to transmit; then speak into the mi-
crophone.
¢Do not hold the microphone too close to your mouth or speak
too loudly. This may distort the signal.
e The TX indicator lights red.
e The S/RF indicator shows the output power selection.
