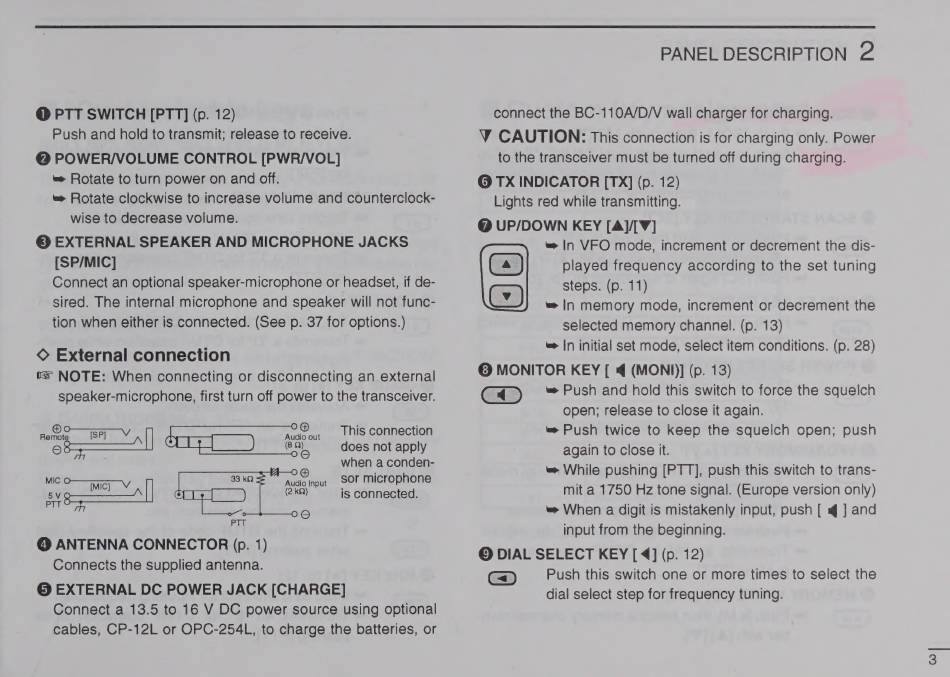

Panel Description - Icom IC-T2H Instruction Manual

@ PTT SWITCH [PTT] (p. 12)
Push and hold to transmit; release to receive.
@ POWER/VOLUME CONTROL [PWR/VOL]
> Rotate to turn power on and off.
=» Rotate clockwise to increase volume and counterclock-
wise to decrease volume.
© EXTERNAL SPEAKER AND MICROPHONE JACKS
[SP/MIC]
Connect an optional speaker-microphone or headset, if de-
sired. The internal microphone and speaker will not func-
tion when either is connected. (See p. 37 for options.)
© External connection
t= NOTE: When connecting or disconnecting an external
speaker-microphone, first turn off power to the transceiver.
when a conden-
MIC O— 33 kQ oa ae sor microphone
5V ik) is connected.
PIT
iS)
PTT
@ ANTENNA CONNECTOR (p. 1)
Connects the supplied antenna.
@ EXTERNAL DC POWER JACK [CHARGE]
Connect a 13.5 to 16 V DC power source using optional
cables, CP-12L or OPC-254L, to charge the batteries, or
PANEL DESCRIPTION 2
connect the BC-110A/D/V wall charger for charging.
VY CAUTION: This connection is for charging only. Power
to the transceiver must be turned off during charging.
© TX INDICATOR [TX] (p. 12)
Lights red while transmitting.
@ UP/DOWN KEY [A]/[¥]
=» In VFO mode, increment or decrement the dis-
played frequency according to the set tuning
() steps. (p. 11)
> In memory mode, increment or decrement the
selected memory channel. (p. 13)
=» In initial set mode, select item conditions. (p. 28)
© MONITOR KEY [ @ (MONI)] (p. 13)
C4) Push and hold this switch to force the squelch
open; release to close it again.
™ Push twice to keep the squelch open; push
again to close it.
=» While pushing [PTT], push this switch to trans-
mit a 1750 Hz tone signal. (Europe version only)
> When a digit is mistakenly input, push [ @ ] and
input from the beginning.
© DIAL SELECT KEY [ 4] (p. 12)
(ep) Push this switch one or more times to select the
dial select step for frequency tuning.
=
