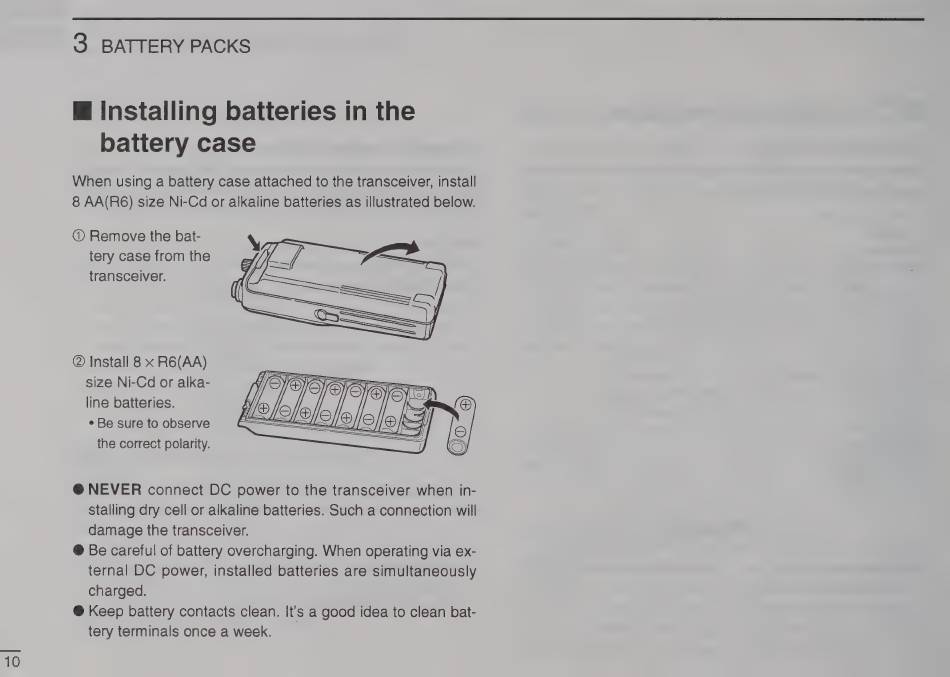

3 BATTERY PACKS

@ Installing batteries in the

battery case

When using a battery case attached to the transceiver, install

8 AA(R6) size Ni-Cd or alkaline batteries as illustrated below.

@ Remove the bat-

tery case from the

transceiver.

@ Install 8 x R6(AA)

size Ni-Cd or alka-

line batteries.

¢ Be sure to observe

the correct polarity.

@ NEVER

connect DC power to the transceiver when in-

stalling dry cell or alkaline batteries. Such a connection will

damage the transceiver.

@ Be careful of battery overcharging. When operating via ex-

ternal DC power, installed batteries are simultaneously

charged.

@ Keep battery contacts clean. It's a good idea to clean bat-

tery terminals once a week.
