Icom IC-T2H Instruction Manual page 8

a

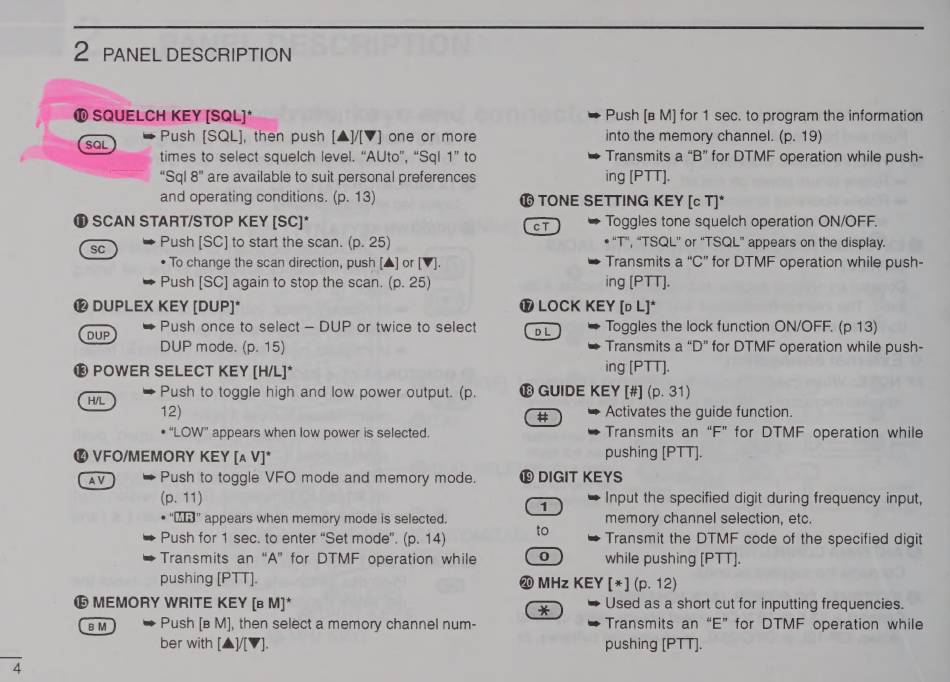

2 PANEL DESCRIPTION
Push [SQL], then push [A]/[¥] one or more
=>
' eer times to select squelch level. "AUto", "Sql 1" to
. "Sql 8" are available to suit personal preferences
and operating conditions. (p. 13)
@ SCAN START/STOP KEY [SC]*
Ge) =» Push [SC] to start the scan. (p. 25)
¢ To change the scan direction, push [A] or [¥].
"» Push [SC] again to stop the scan. (p. 25)
@ DUPLEX KEY [DUP]*
"> Push once to select — DUP or twice to select
DUP mode. (p. 15)
@® POWER SELECT KEY [H/L]*
Ci) "> Push to toggle high and low power output. (p.
12)
¢ "LOW" appears when low power is selected.
@® VFO/MEMORY KEY [a V]*
» Push to toggle VFO mode and memory mode.
(p. 11)
¢ "(1G)" appears when memory mode is selected.
> Push for 1 sec. to enter "Set mode". (p. 14)
" Transmits an "A" for DTMF operation while
pushing [PTT].
@® MEMORY WRITE KEY [s M]*
> Push [B M], then select a memory channel num-
ber with [A}/[¥].
DUP
> Push [B M] for 1 sec. to program the information
into the memory channel. (p. 19)
= Transmits a "B" for DTMF operation while push-
ing [PTT].
@ TONE SETTING KEY [c T]*
> Toggles tone squelch operation ON/OFF.
¢"T", "TSQL" or "TSQL" appears on the display.
"» Transmits a "C" for DTMF operation while push-
ing [PTT].
@® LOCK KEY [p L]*
> Toggles the lock function ON/OFF. (p 13)
Transmits a "D" for DTMF operation while push-
ing [PTT].
@® GUIDE KEY [#] (p. 31)
» Activates the guide function.
Transmits an "F" for DTMF operation while
pushing [PTT].
® DIGIT KEYS
G) > Input the specified digit during frequency input,
memory channel selection, etc.
"> Transmit the DTMF code of the specified digit
Co ) while pushing [PTT].
@ MHz KEY [*] (p. 12)
» Used as a short cut for inputting frequencies.
"= Transmits an "E" for DTMF operation while
pushing [PTT].
to
