8. To remove an expansion card, hold the card at each end and carefully rock it back and forth
until the connectors pull free from the socket. Lift the expansion card straight up to release it
from the carrier. Be sure not to scrape the card against other components.

5.9.3 AGP Card

Some graphics cards (such as the nVIDIA Quadro4 400 NVS) will require you to remove the
diskette drive (or hard drive, if installed) from bay 1 to allow enough remove to install the
graphics card.
1. If you have locked the Smart Cover Lock, use Computer Setup to unlock the lock
(Section 5.2).
2. Prepare the workstation for disassembly (Section 5.1).
3. Remove the workstation access panel (Section 5.5).

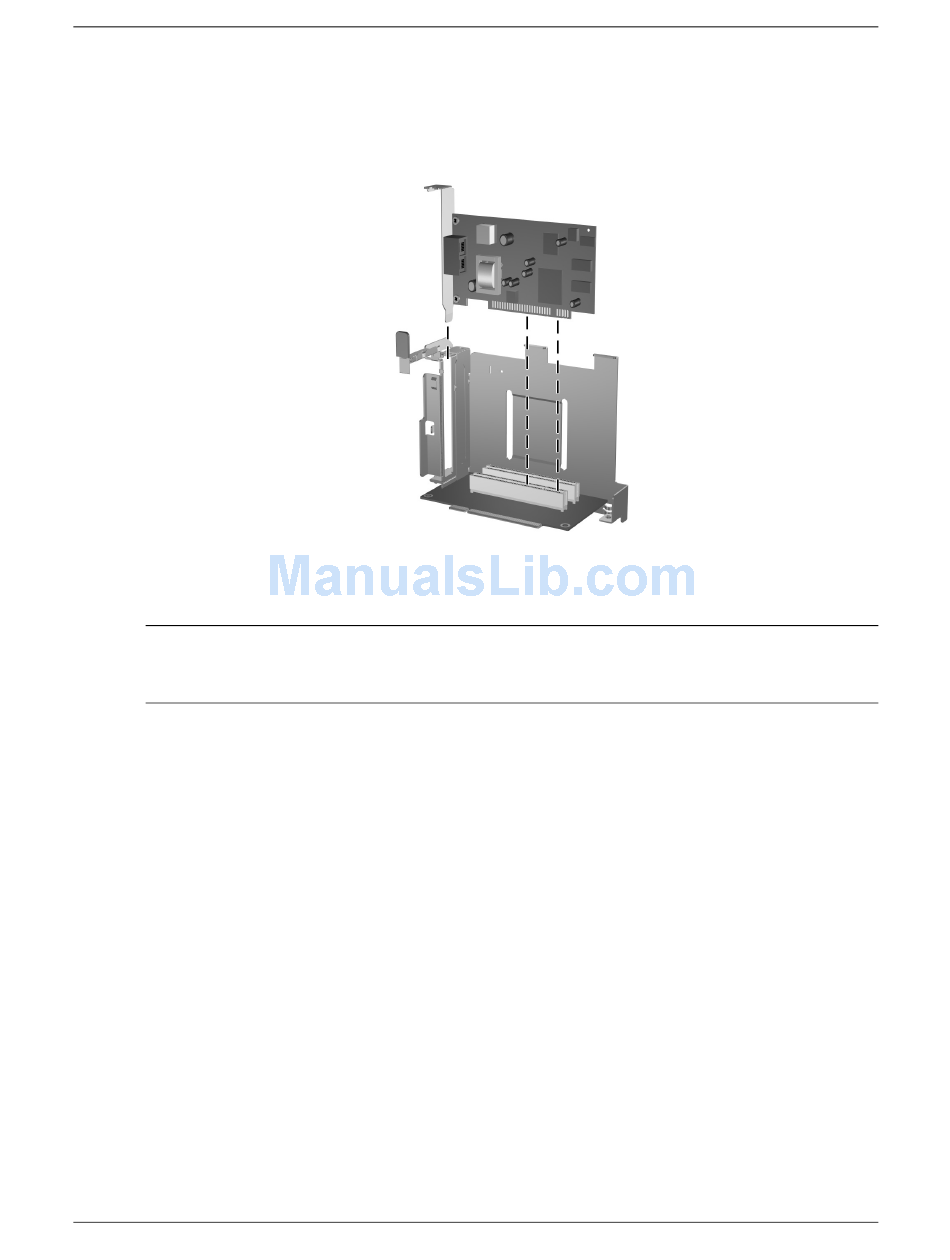

4. Lift the green lever to unlock the AGP card.
Service and Technical Reference Guide, xw3100
Removal and Replacement Procedures
338611-001 5–13
