HP xw3100 Service And Technical Reference Manual page 94

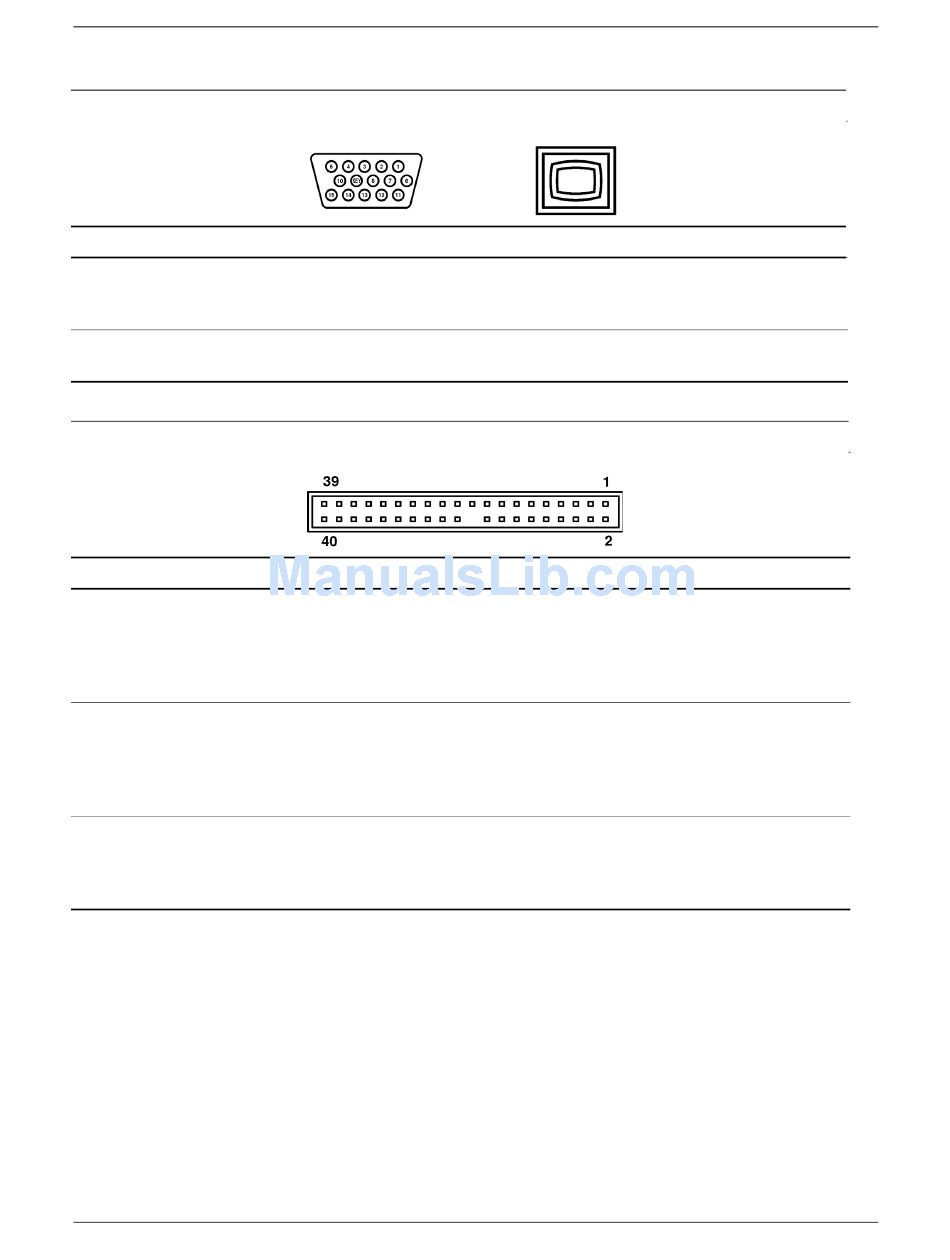

Connector Pin Assignments
Monitor
Pin Signal
1 Red Analog
2 Green Analog
3 Blue Analog
4 Not used
5 Ground
ATA/ATAPI (IDE) Standard Drive Cable
Pin Signal
1 Reset
2 Ground
3 DD7
4 DD8
5 DD6
6 DD9
7 DD5
8 DD10
9 DD4
10 DD11
11 DD3
12 DD12
13 DD2
14 DD13
A–4
Connector and Icon
Pin Signal
6 Ground
7 Ground
8 Ground
9 +5V (fused)
10 Ground
Connector
Pin Signal
15 DD1
16 DD14
17 DD0
18 DD15
19 Ground
20 (Key)
21 DMARQ
22 Ground
23 DIOW
24 Ground
25 DIOR
26 Ground
27 IORDY
28 CSEL
338611-001
Pin Signal
11 Monitor ID
12 DDC Serial Data
13 Horizontal Sync
14 Vertical Sync
15 DDC Serial Clock
Pin Signal
29 DMAK
30 Ground
31 INTRQ
32 IOCS16
33 DA1
34 PDIAG (cable detect)
35 DA0
36 DA2
37 CS1FX
38 CS3FX
39 DASP
40 Ground
Service and Technical Reference Guide, xw3100
