12-4. Restrictions
In this section, restrictions are described for conforming to the EMC Directive.
● SSI cable
Install the cramp filter (accessory ) to the SSI cable.
The installation position was set within 300 mm of the host controller.
The shielded SSI cable should be connected to the ground of the converter's power terminal block.
It close to the host controller should be connected to the ground.
● Sensor cable

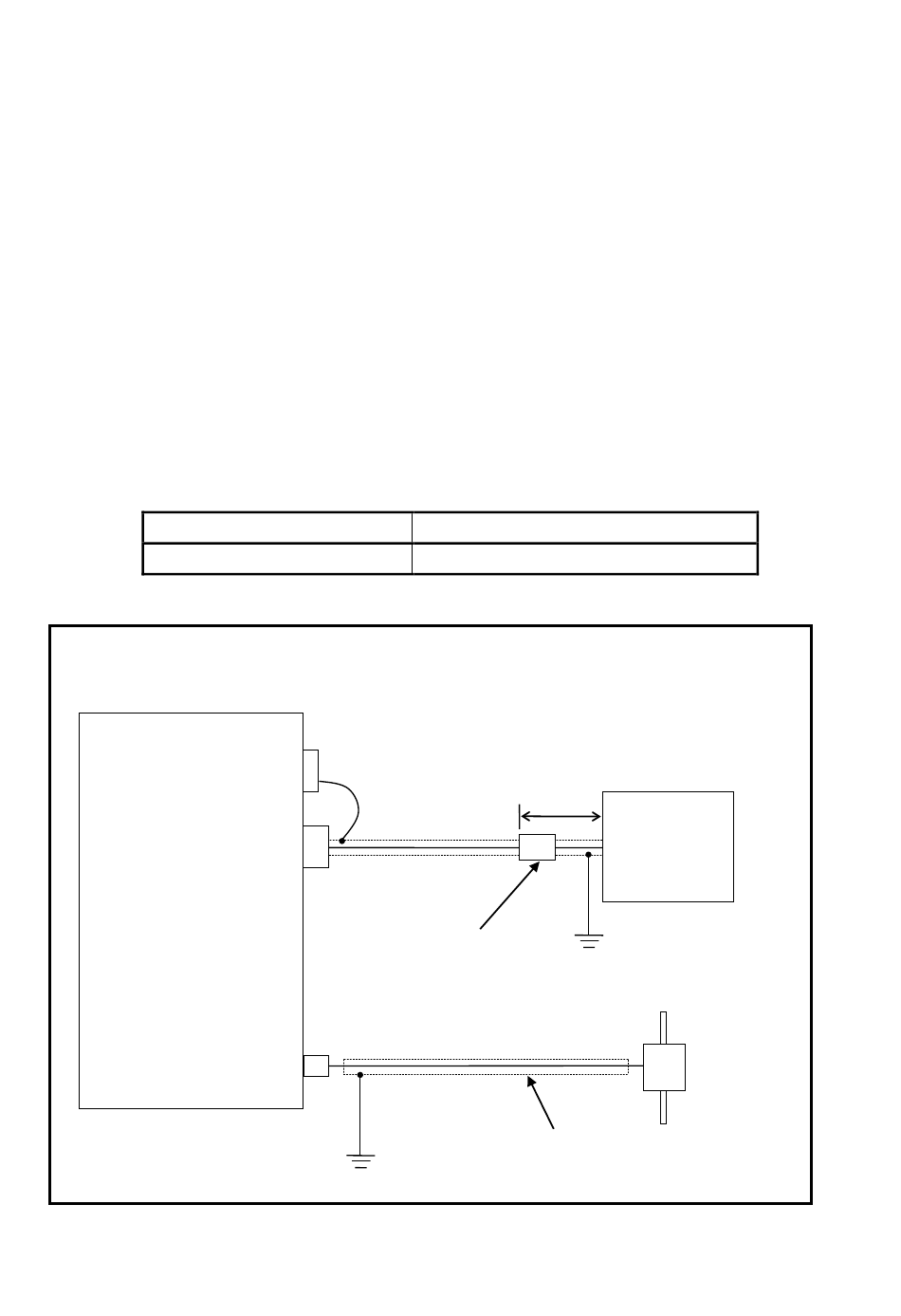

The sensor cable should be covered with the zippertubing with a shield, and the shield should be grounded close
to the converter.
Recommendation zippertubing
Converter
Model
MTFS 20φ
The shield should be connected
to the ground of the terminal
block for the power supply.
Shielded SSI cable
ZCAT3035-1330 (Accessory)
GND
(Ground resistance
of 100 ohm or less)
Manufacturer
ZIPPERTUBING (JAPAN), LTD.
Within 300mm
Clamp filter

ABSOCODER sensor

Sensor cable
Zippertubing
51

Host controller

GND
(Ground resistance
of 100 ohm or less)
