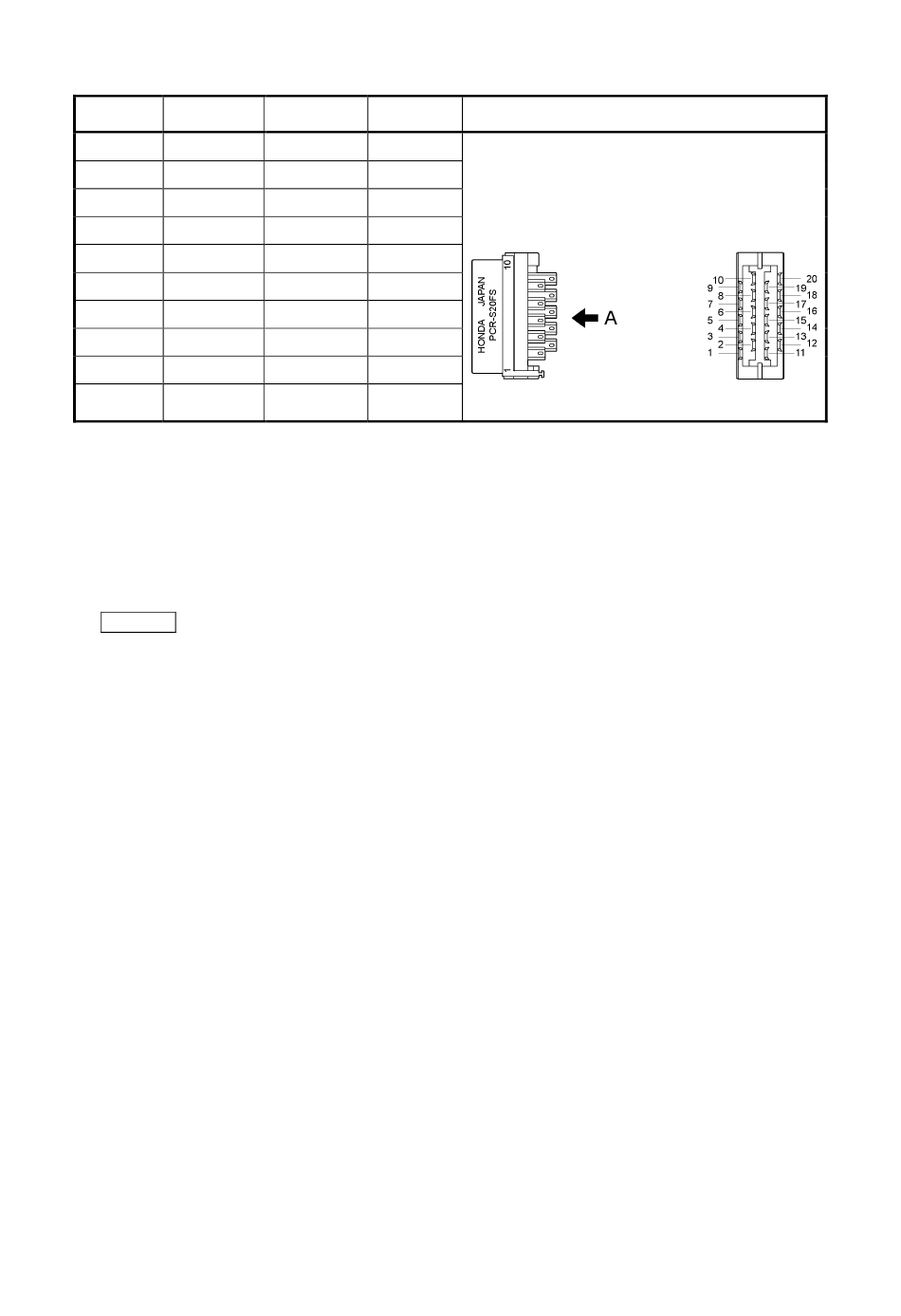

3-1-4. SSI connector pin arrangement

Signal
Pin No.
name
1 ZPS2-
2 ZPS2+
3 CLR-
4 CLR+
5 NOR2-
6 SG (0V)
7 CLK2-
8 CLK2+
9 CLK1-
10 CLK1+
● Accessary
Connector model: PCR-S20FS+ / PCR-LS20LA1 (Manufacturer: HONDA TSUSHIN KOGYO CO., LTD)
● Usage cable
Use the cable for RS-422 / RS-485 (twist-pair cable with shield).
Sheath diameter: Maxφ10 or less
Reference
We conduct the operation check with using the following cable.
CO-SPEV-SB (A) 10P x 0.2SQ LF (Manufacturer: Hitachi Cable, Ltd.)
Signal
Pin No.
name
11 ZPS1-
12 ZPS1+
13 NOR1-
14 NOR1+
15 NOR2+
16 SG (0V)
17 DATA2-
18 DATA2+
19 DATA1-
20 DATA1+
Wire size: 0.2mm
8
Connector dimension
Shows the pin arrangement as viewed from the
soldering terminals side.
(AWG24)
2
View A
