9-4. Error Clear Input (CLR)

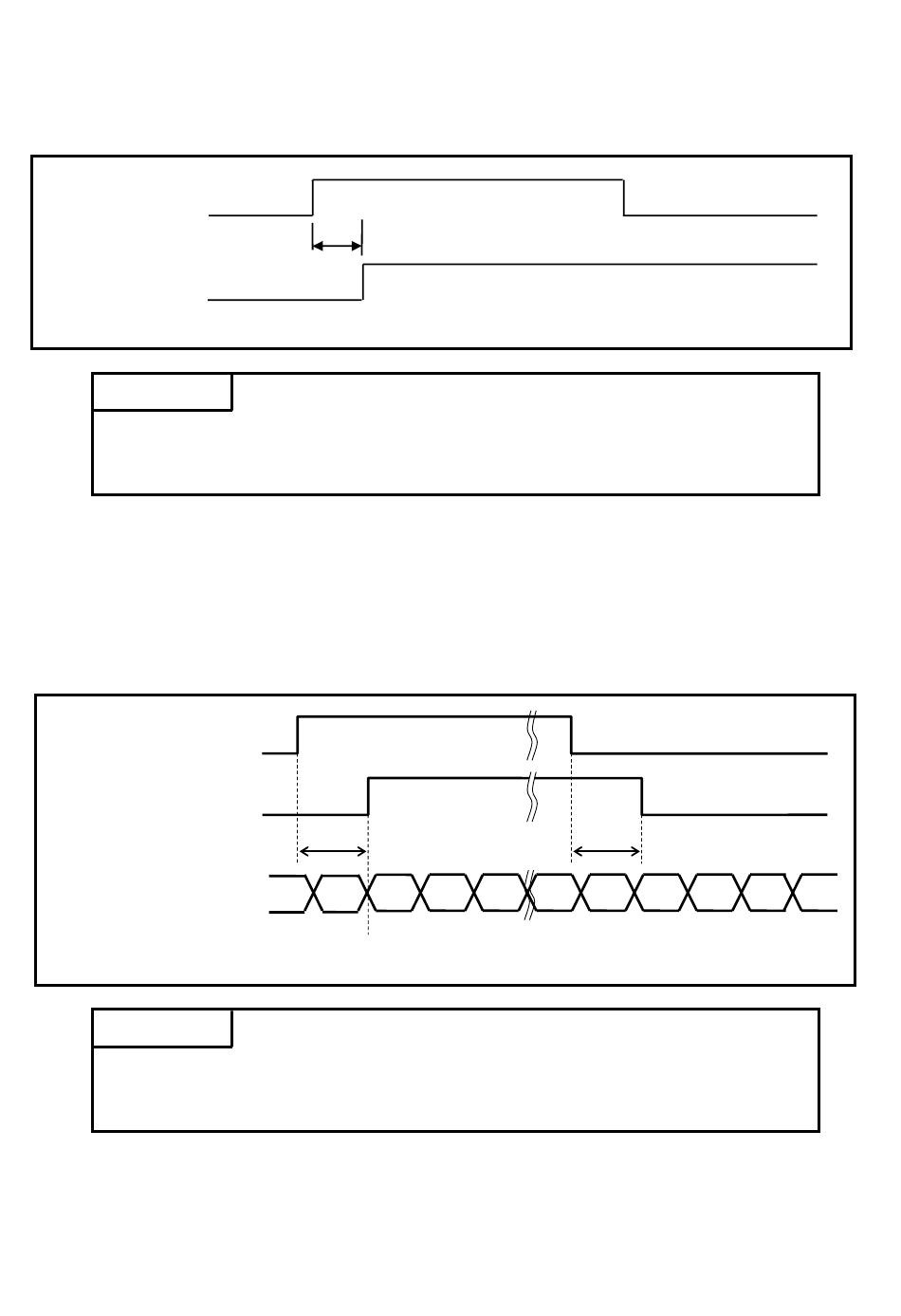

The chart below indicates the error clear input timing.
ON
Error clear input
OFF
ON
System ready
output
OFF
t1: The holding time of the error clear signal should be 20ms or more.
Important
The error clear input must be ON 20ms or more.
The error clear signal must be turned OFF after clearing the error.

9-5. Zero Point Setting Input (ZPS1, ZPS2)

The chart below indicates the zero point setting input timing.
Zero point setting input
Input acceptance
Position data
* t1≦20ms
Important
The zero point setting input must be ON 20ms or more.
The zero point setting signal must be turned OFF after setting the zero point.
t1
ON
OFF
ON
OFF
t1
0
t1
