2. MODEL SELECTION WHEN ORDERING

The following figure indicates the connection configuration of NCV-220HSSI.
Before ordering, refer to the connection configuration and model list. Please prepare by customer except 1 to 3 in the
connection configuration.

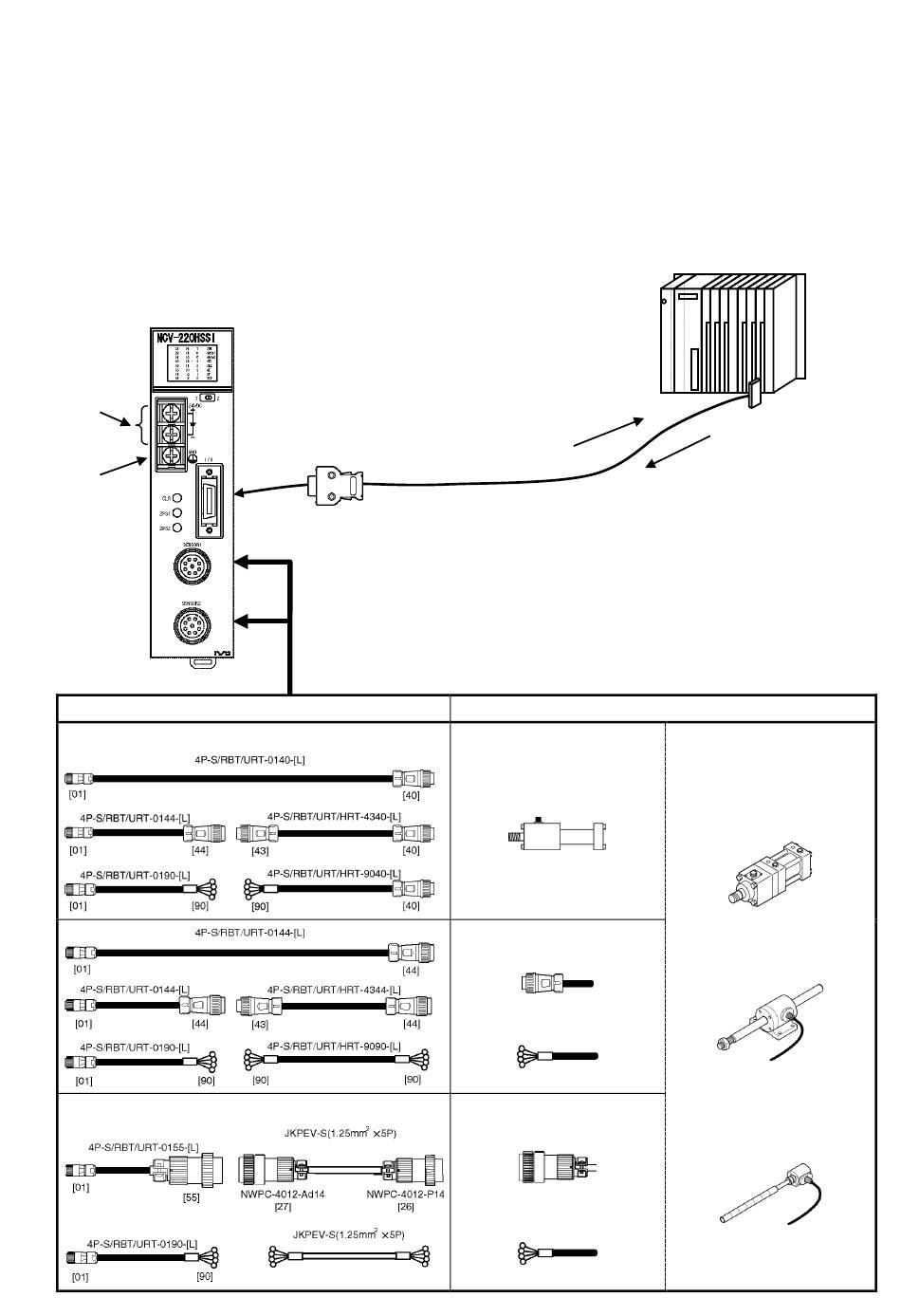

● Connection configuration
(1) Converter
Power
Supply
+24V
0V
Ground
(3) Extension sensor cable
In the case of using the NSD special cable
In the case of using the commercially available cable
Connector at cable side
(It is included in the converter.)
PCR-S20FS+: Soldered socket
PCR-LS20LA1: Cover
Connectors are manufactured by
Honda Tsushin Kogyo Co., LTD.
External output signal
-System ready
-SSI communication data
SSI cable
(2) ABSOCODER sensor
No cable
(SCM,SCJ,SCMJ,SCJJ)
Connector type
B
R
P
R
4
Host controller
PLC etc.
External input signal
-Zero point setting
-SSI communication CLK
-Error clear
CYLNUC Cylinder
CYLNUC MarkⅡ Cylinder
VLS-12.8PRA28
VLS-12.8MHP28
IRS-51.2P
IRS-32.8P
