6-2. ABSOCODER Sensor Installation Conditions and Precautions

The installation conditions and precautions for ABSOCODER sensor are described in this section.

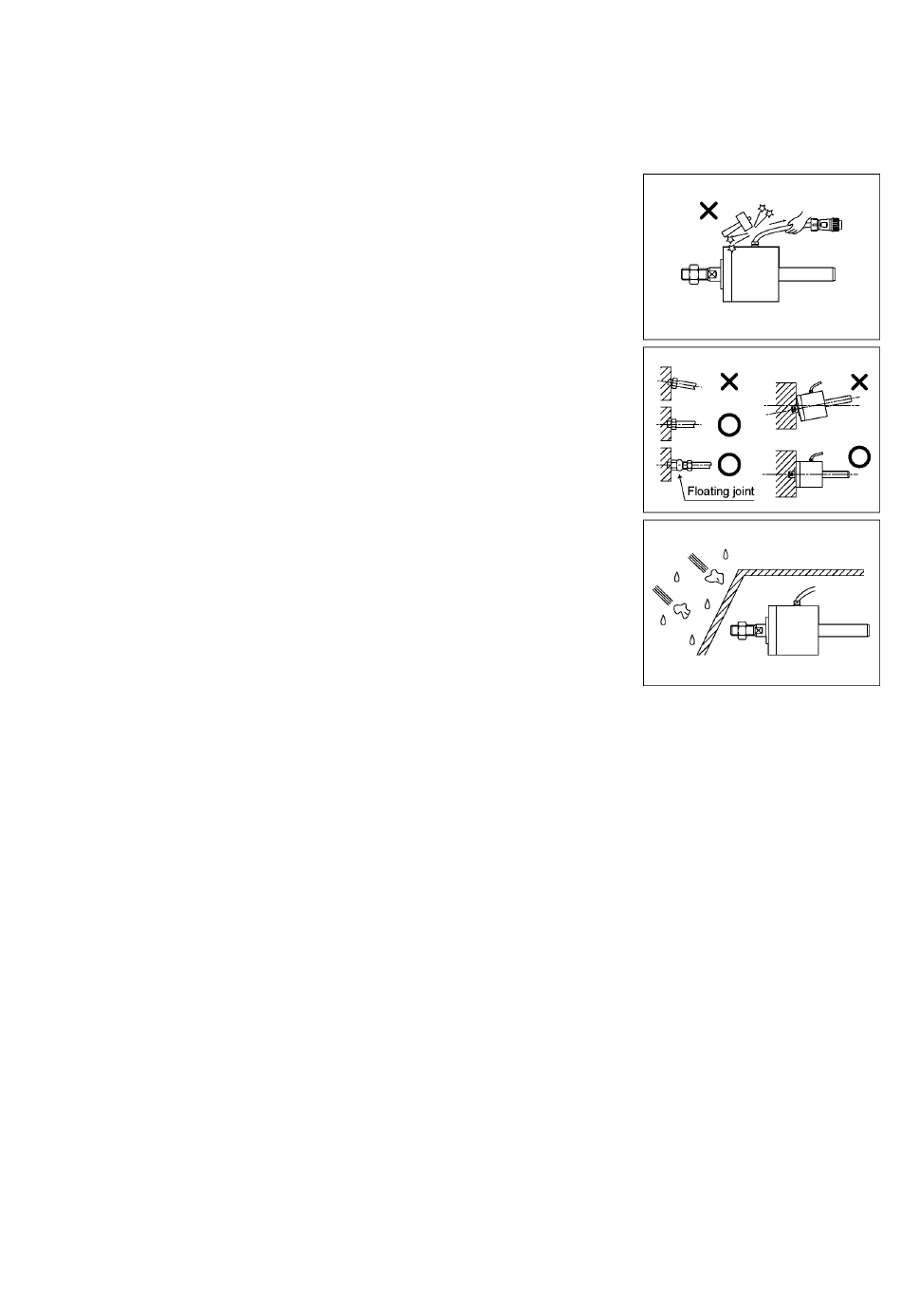

1) Do not apply excessive forces to the cable terminal area,
and avoid damaging the cable.
2) The part of a machine mounted the sensor rod must travel in the same
direction as the sensor rod extends and contracts.
3) When the cable port is exposed, a shielding plate should be installed
as shown in the right figure.
Contact your NSD representative for details of the installation conditions and precautions
for ABSOCODER sensor.
