Filling systems
The pipe system must be completely full to ensure optimum measurement.
1
2
3

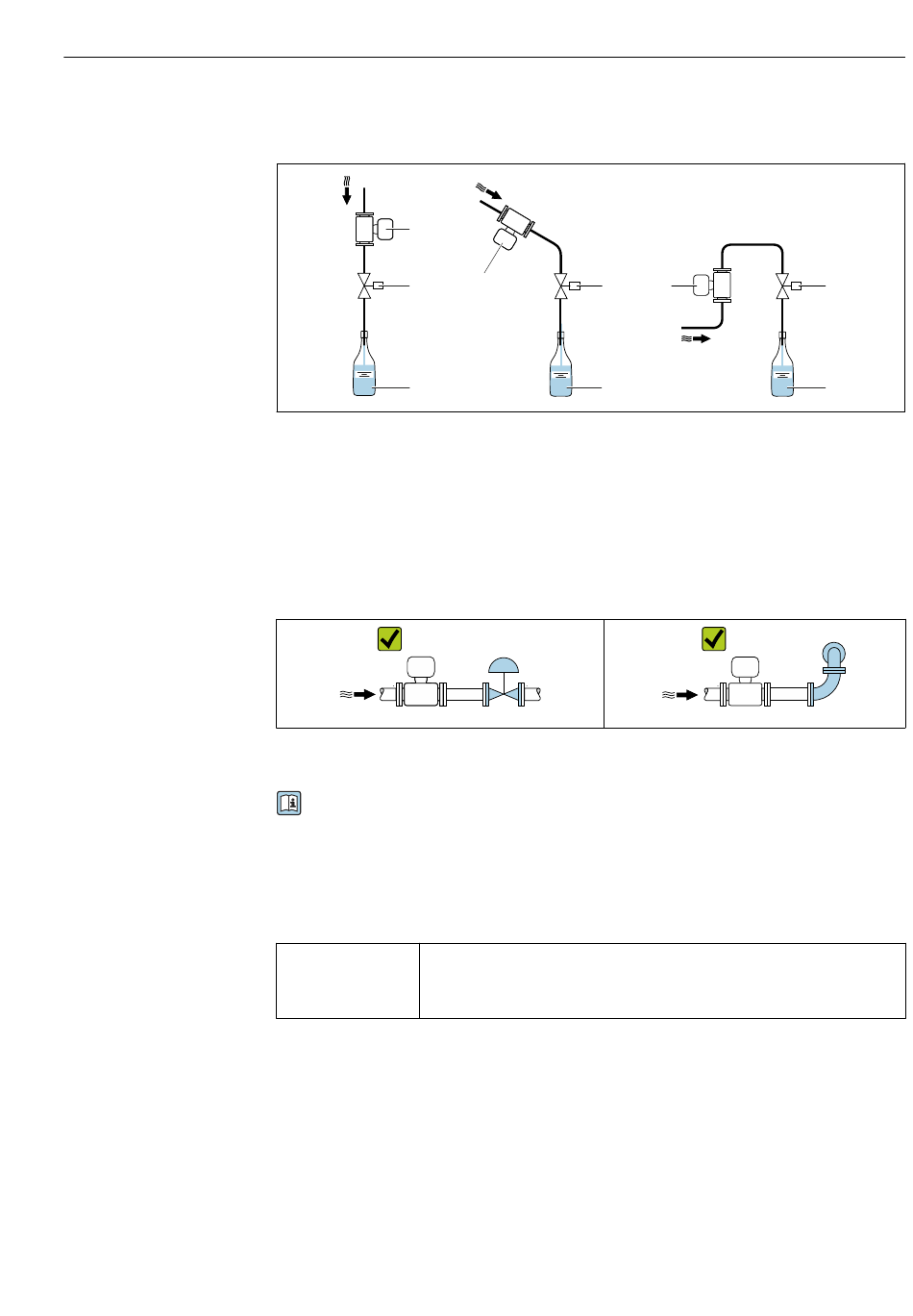

 7 Filling system
1 Measuring device
2 Filling valve
3 Vessel
Inlet and outlet runs
No special precautions need to be taken for fittings that create turbulence, such as valves,
elbows or T-pieces, as long as no cavitation occurs →  19.
Installation dimensions
For the dimensions and installation lengths of the device, see the "Technical
Information" document, "Mechanical construction" section
6.1.2

Environmental and process requirements

Ambient temperature range
Measuring instrument –40 to +60 °C (–40 to +140 °F)
(Sensor, transmitter)
Install the measuring instrument in a shady location. Avoid direct sunlight,
particularly in warm climatic regions.
Static pressure
It is important that cavitation does not occur, or that gases entrained in the liquids do not
outgas.
Cavitation is caused if the pressure drops below the vapor pressure:
• In liquids that have a low boiling point (e.g. hydrocarbons, solvents, liquefied gases)
• In suction lines
‣
Ensure the static pressure is sufficiently high to prevent cavitation and outgassing.
1 2
3
A0029322
1 2
3
Mounting
A0003795
A0029323
19
