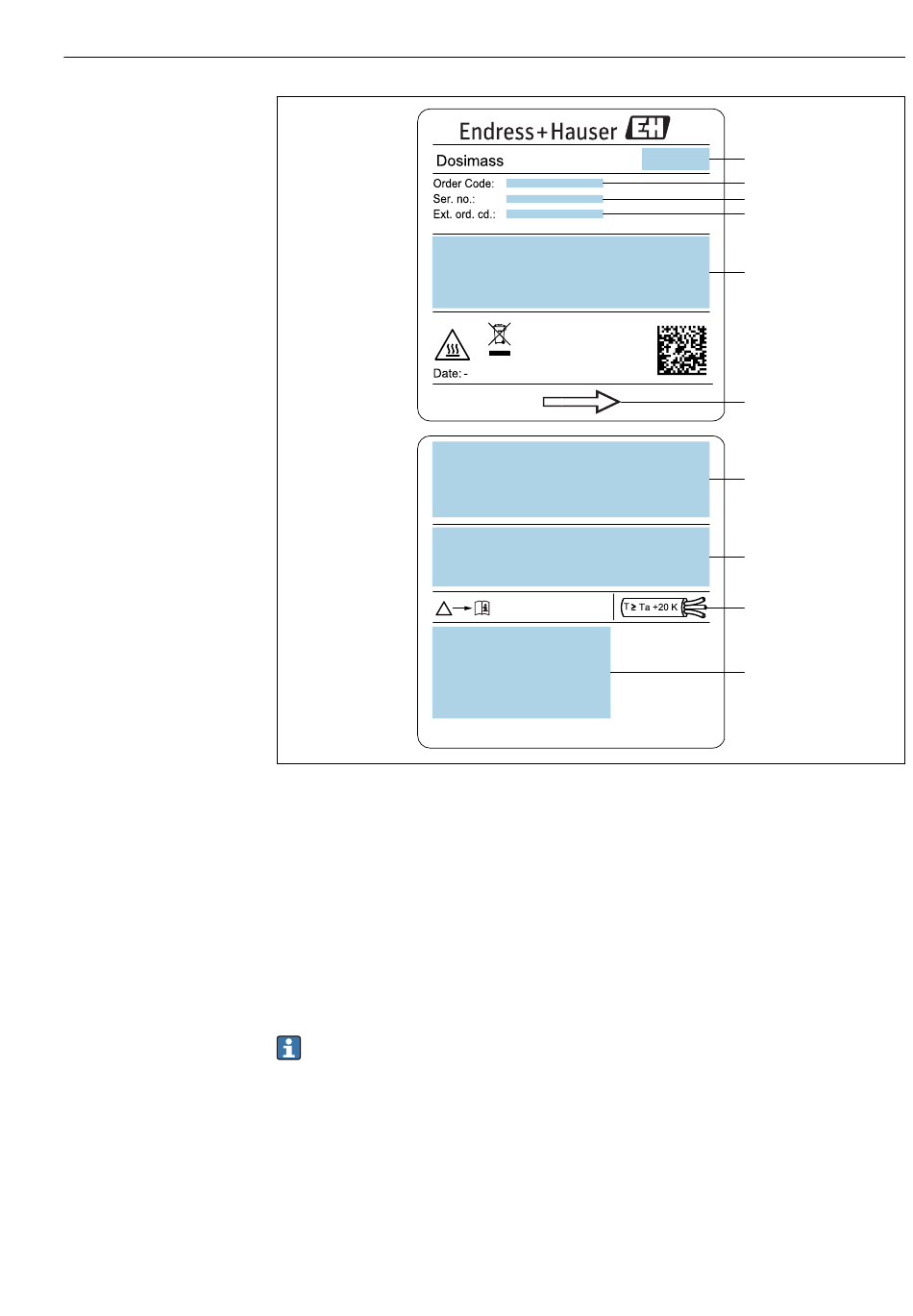

 4 Example of a measuring instrument nameplate DN 8 to 40 (³⁄₈ to 1½")
1 Manufacturer address/certificate holder
2 Order code
3 Serial number (Ser. no.)
4 Extended order code (Ext. ord. cd.): See the specifications on the order confirmation for the meanings of the
individual letters and digits
5 Supply voltage; power consumption; process connection
6 Flow direction
7 Nominal diameter of sensor; max. flow (Qmax); pressure rating (PN = PS); materials in contact with medium;
permitted medium temperature (Tm); permitted ambient temperature (Ta)
8 Degree of protection
9 Cable temperature
10 Space reserved for additional information on the device version (approvals, certificates, etc.)
Order code
The measuring device is reordered using the order code.
Extended order code
• The device type (product root) and basic specifications (mandatory features) are
always listed.
• Of the optional specifications (optional features), only the safety and approval-
related specifications are listed (e.g. LA). If other optional specifications are also
ordered, these are indicated collectively using the # placeholder symbol (e.g. #LA#).
• If the ordered optional specifications do not include any safety and approval-related
specifications, they are indicated by the + placeholder symbol (e.g. XXXXXX-ABCDE
+).
Incoming acceptance and product identification
1
2
3
4 4
5
6
7
8
9
10
