Mounting
22

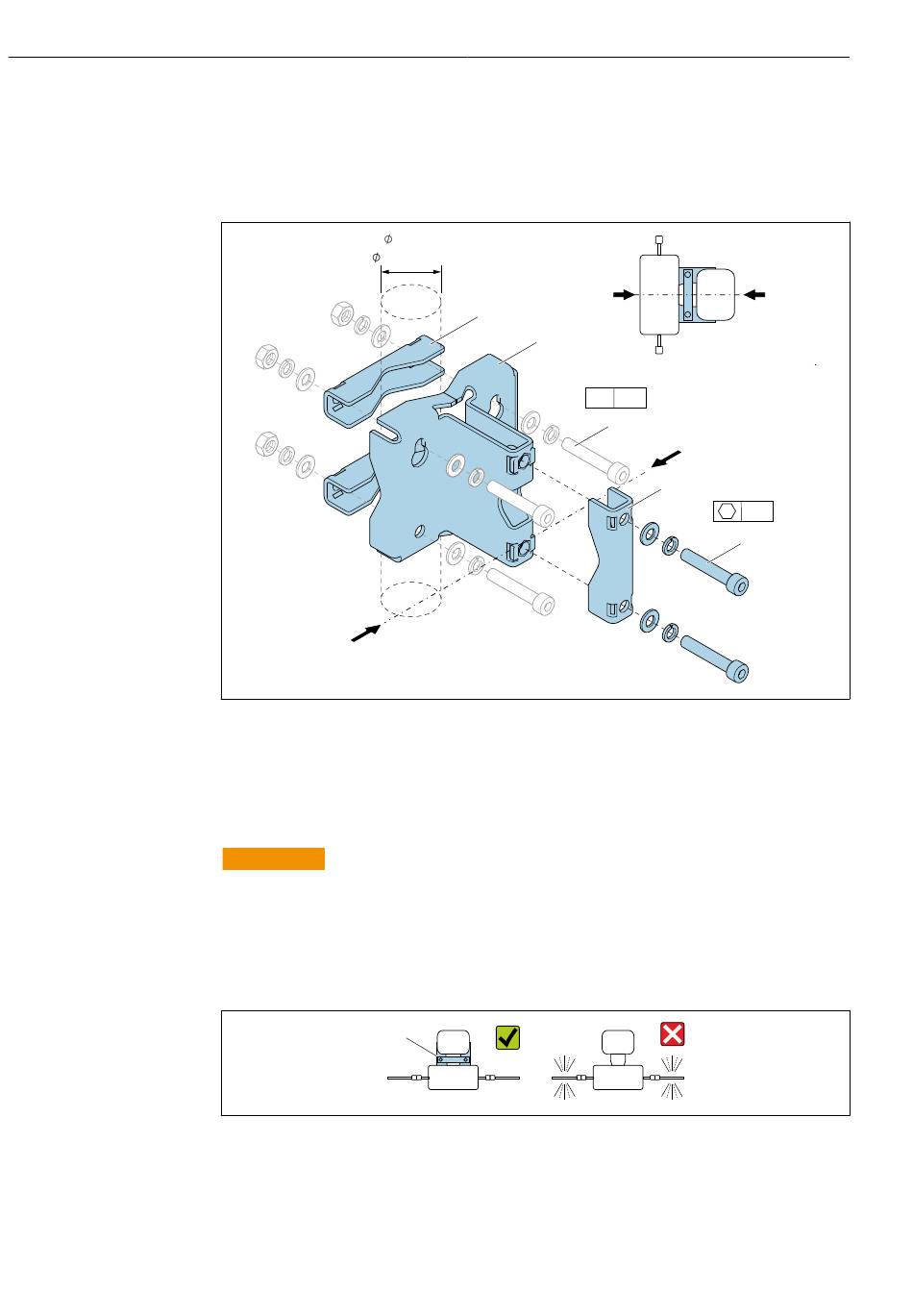

Sensor holder DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
• The appropriate sensor holder must be used for all applications with increased safety or
load requirements and for sensors with clamp process connections.
• The Endress+Hauser sensor holder is generally recommended for mounting for all
applications →  49.
20...70
( 0.79...2.75)
A
1 2 x Allen screw M8 x 50, washer and spring washer A4
2 1 x clamp (measuring instrument neck)
3 4 x securing screw for wall, tabletop or pipe mounting (not supplied)
4 1 x base profile
5 2 x clamp (pipe mounting)
A Measuring instrument central line
WARNING
L
Strain on pipes!
Excessive strain on an unsupported pipe can cause the pipe to break.
‣
Install the sensor in a sufficiently supported pipe. In addition to the use of the sensor
holder, for maximum mechanical stability the sensor can also be supported on the inlet
and outlet sides onsite at the installation location with the use of pipe clamps, for
example.
1 Sensor holder Order number: 71392563
5
4
4 x
1
Dosimass IO-Link
A A
M8
3
A
2
2 x
M8
1
Endress+Hauser
A0036471
A0036492
