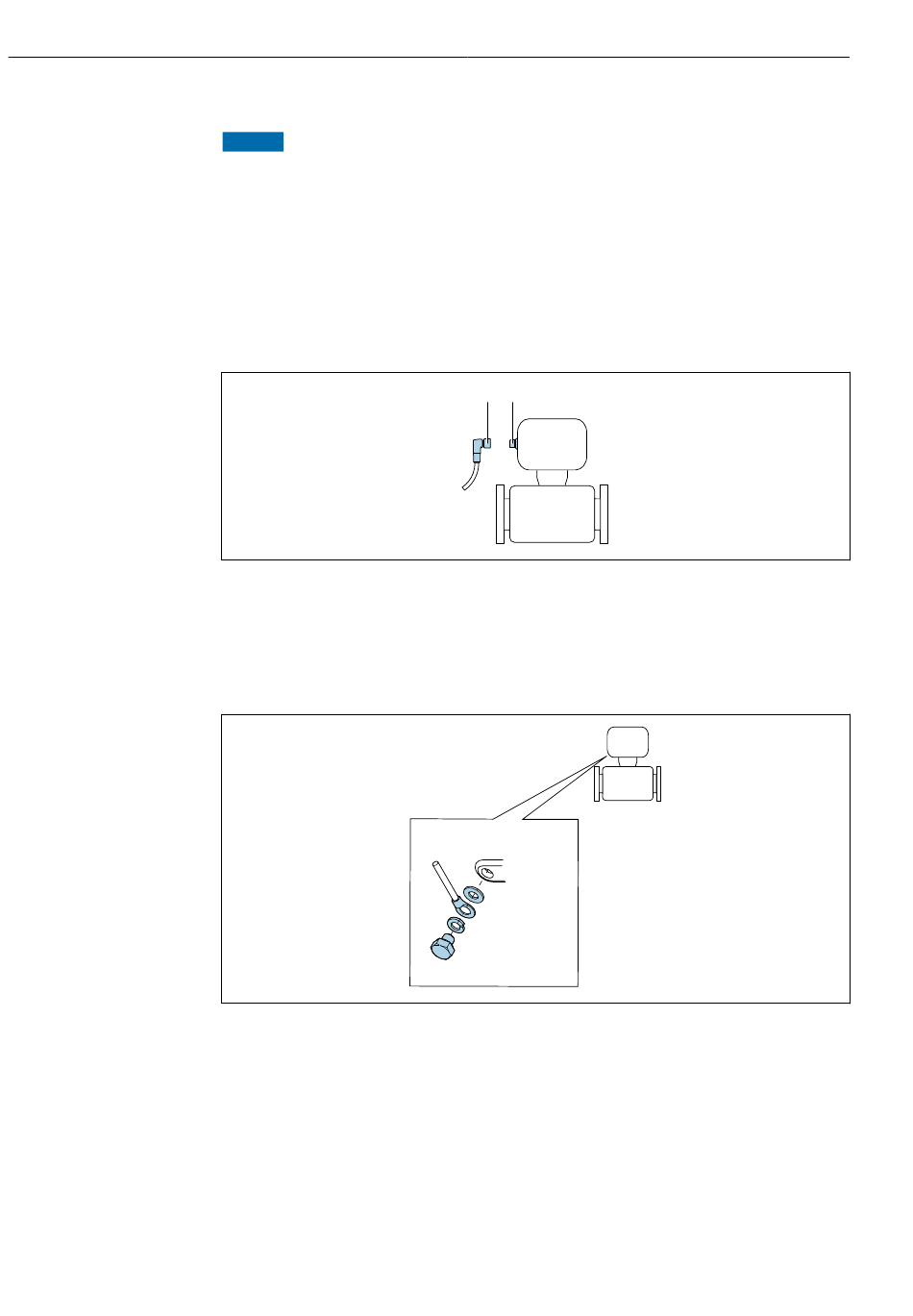

Electrical connection
28
7.3

Connecting the measuring instrument

NOTICE
An incorrect connection compromises electrical safety!
Only properly trained specialist staff may perform electrical connection work.
Observe applicable federal/national installation codes and regulations.
Comply with local workplace safety regulations.
When using in potentially explosive atmospheres, observe the information in the
device-specific Ex documentation.
7.3.1

Connection via device plug

Connection is solely by means of device plug.
A
Coupling
B
Plug
7.3.2

Grounding

Grounding is by means of a cable socket.
7.4

Ensuring potential equalization

No special measures for potential equalization are required.
7.5

Ensuring the degree of protection

The measuring device fulfills all the requirements for IP67 degree of protection, Type 4X
enclosure.
A
B
Dosimass IO-Link
A0032652
A0053306
Endress+Hauser
