Measuring Instrument Nameplate - Endress+Hauser Dosimass IO-Link Operating Instructions Manual

Incoming acceptance and product identification
12
4.2.1

Measuring instrument nameplate

!

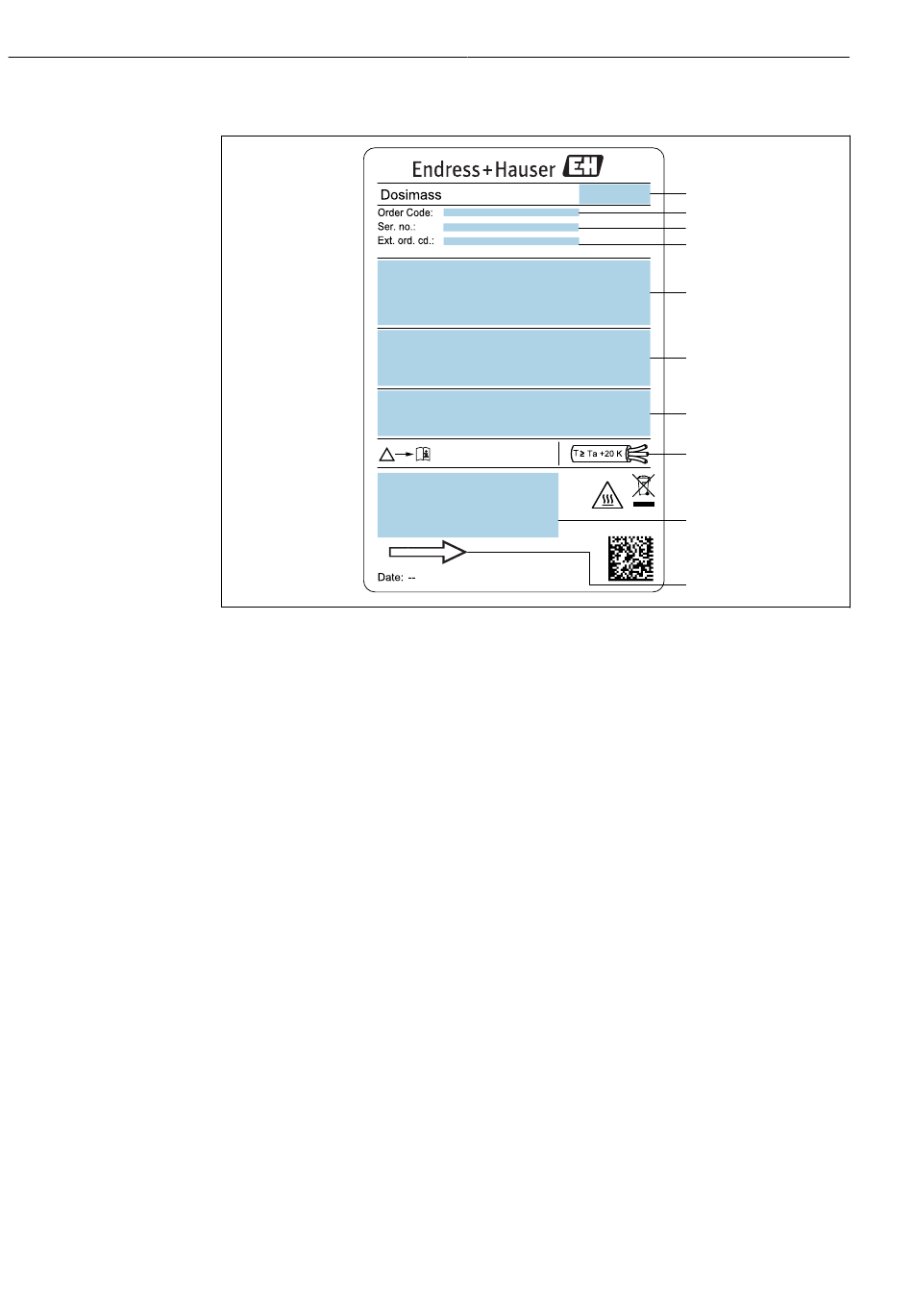

 3 Example of a measuring instrument nameplate DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
1 Manufacturer address/certificate holder
2 Order code
3 Serial number (Ser. no.)
4 Extended order code (Ext. ord. cd.): See the specifications on the order confirmation for the meanings of the
individual letters and digits
5 Supply voltage; power consumption; process connection
6 Nominal diameter of sensor; max. flow (Qmax); pressure rating (PN = PS); materials in contact with medium;
permitted medium temperature (Tm); permitted ambient temperature (Ta)
7 Degree of protection
8 Cable temperature
9 Space reserved for additional information on the device version (approvals, certificates, etc.)
10 Flow direction
