12 - Flexible UI Page

12 Flexible UI Page
The following section is for displaying Flexible User Interface (UI) pages.
UI pages allow for interaction by selection of customized buttons, and display of images. UI pages are
composed of Titles, Text lines, Buttons, Amount buttons, Images, and Functional buttons. Functional
buttons are situated at the bottom of the screen. A host app sends the contents of: Text lines, Amount
buttons, and Images, in real time to the device for display. However, for Titles, Buttons, and Functional
buttons, the messages are pre-existing inside the device. Hence, a host app only sends the string ID
number assigned to a specific text message. The ID and text messages are defined by a UI configuration
file.
A UI configuration file may be configured by a customer, but ultimately is signed at MagTek. The device
will only accept a signed UI configuration file.

12.1 UI Configuration File

To send a UI Configuration file to the device, follow these steps.

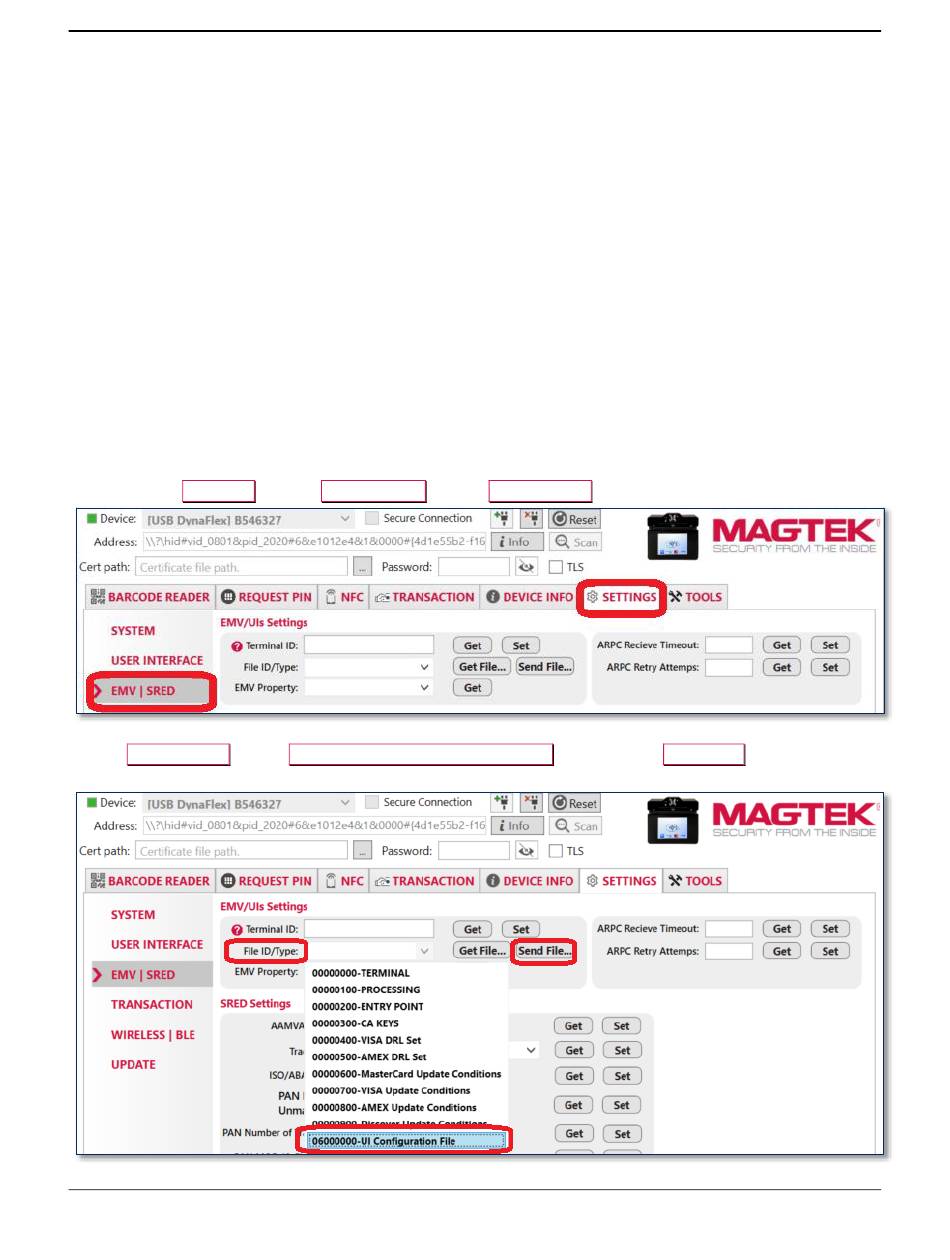

1) Select the tab and menu.
Settings EMV | SRED File ID/Type
2) At , select and press the button to browse
File ID/Type 06000000-UI Configuration File Send File
for the UI Configuration file (.BIN) file.
