Magtek DynaProx Quick Installation Manual

Overview
DynaProx and DynaProx BCR deliver the next generation in touchless
payment acceptance. Both models come standard with contactless EMV
and near field communication (NFC) technology. DynaProx can be purchased
with either a gasket for stable installation for OEMs and payment solutions;
or with a countertop, angled stand for stable acceptance at the counter top.
Major Components

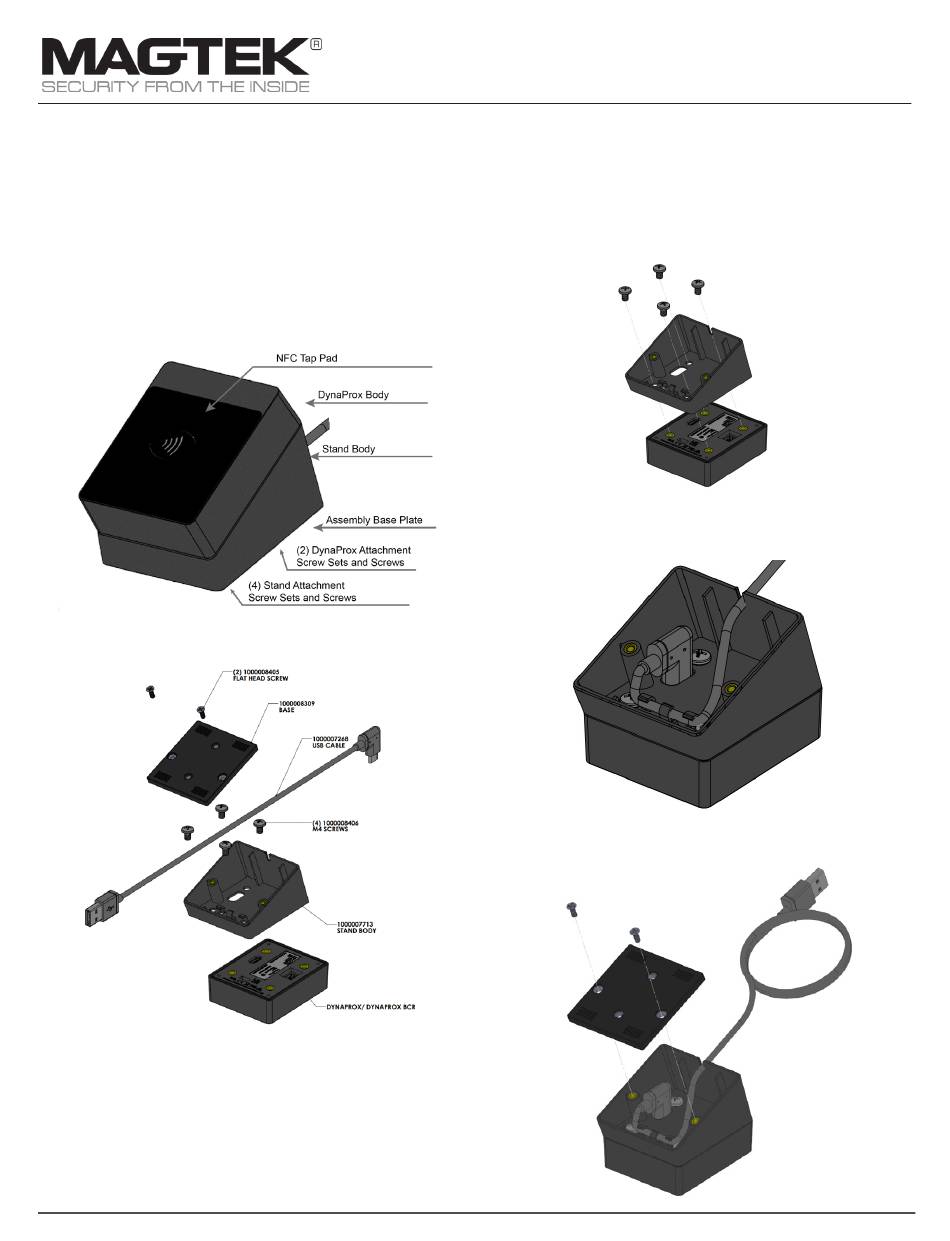

DynaProx (shown here) Major Components - Assembled to Stand
DynaProx (shown here) Major Components - Upside Down Blow Out
Stand Contents:
Stand Body: The body of the stand. Angled for better ergonomics.
Cable Channel: Allows the cable to be channeled out the back of the stand body.
(4) M4 Screws: Attaches the stand body to the DynaProx device
(2) Flat-head Screws: Attaches the base plate to the stand body.
Base Plate: Bottom of stand, can attach the stand to counter tops.
DynaProx and DynaProx BCR Stand
NFC Contactless Module and Mounting Stand
Quick Installation Guide
Assembly
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 651-415-6800 | f 562-546-6301 | www.magtek.com
Installation of DynaProx Stand
1. Place the DynaProx face down on a clean soft surface to avoid scratching
the front face of the device. Using minimal toque, use (4) M4 screws to
attach the stand to the body.
2. Insert the cable and connect securely to the DynaProx device. Clip the
cable securely into the cable management hooks. Channel the cable outside
the back end of the stand body.
3. Align the assembly base plate and using the (2) flat-head screws, screw
the base plate to the stand body.
