Magtek DynaProx Quick Installation Manual

Overview
DynaProx and DynaProx BCR [DynaProx products] deliver the next
generation in contactless payment acceptance. Both models come standard
with contactless EMV and near field communication (NFC) technology.
DynaProx products can be purchased with either a gasket for stable
installation or with a countertop, angled stand for stable acceptance.

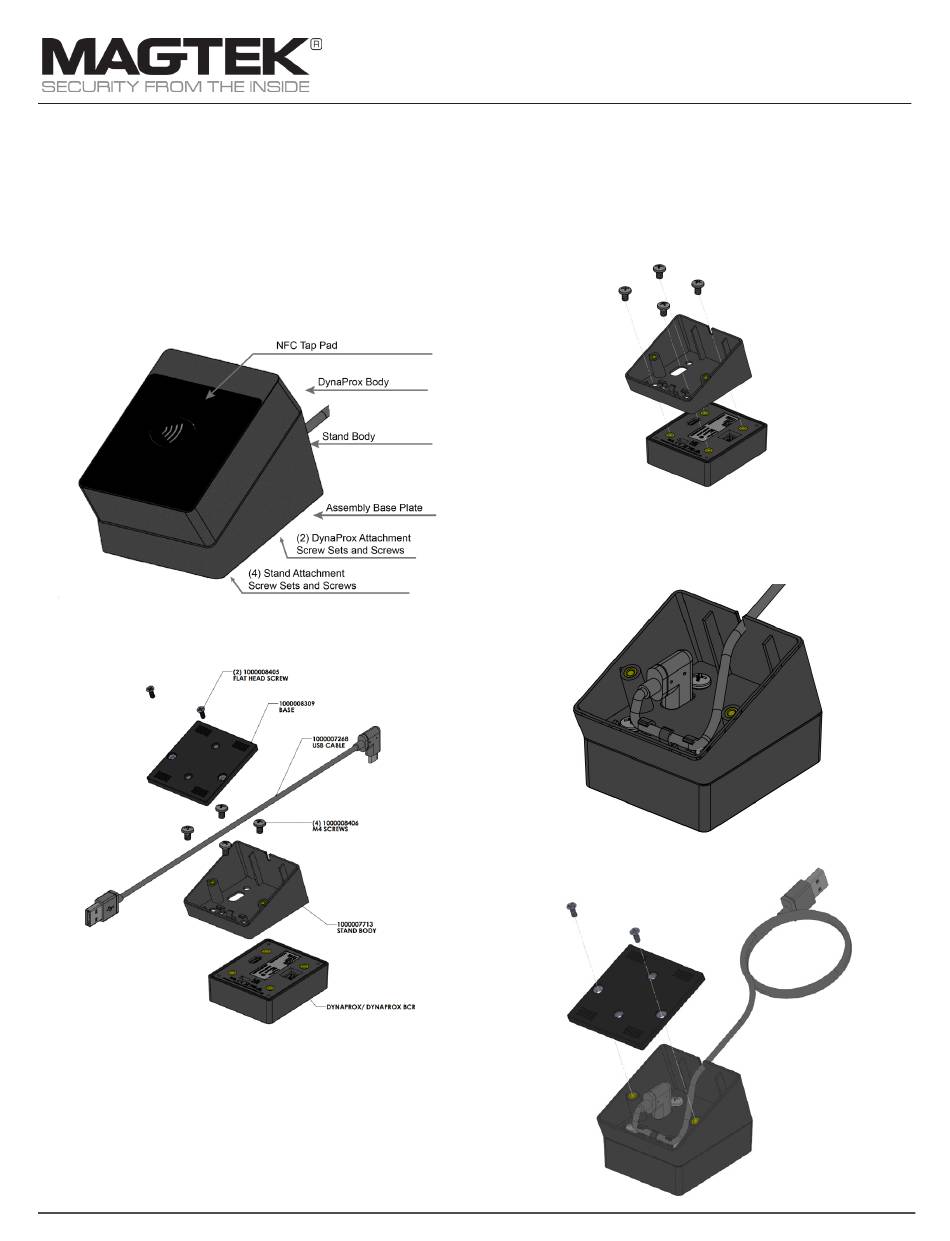

Major Components
DynaProx (shown here) Major Components - Assembled to Stand
DynaProx (shown here) Major Components - Upside Down Blow Out
Stand Contents:
Stand Body: The body of the stand. Angled for better ergonomics.
Cable Channel: Allows the cable to be channeled out the back of the stand body.
(4) M4 Screws: Attaches the stand body to the DynaProx device
(2) Flat-head Screws: Attaches the base plate to the stand body.
Base Plate: Bottom of stand, can attach the stand to counter tops.
DynaProx and DynaProx BCR Stand
Quick Installation Guide
Assembly
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 651-415-6800 | f 562-546-6301 | www.magtek.com
Secure Module in Mounting Countertop Stand
Installation of Stand
1. Place the DynaProx product face down on a clean soft surface to avoid
scratching the front face of the device. Using minimal torque, use (4) M4
screws to attach the stand to the body.
2. Insert the cable and connect securely to the DynaProx product. Clip the
cable securely into the cable management hooks. Channel the cable outside
the back end of the stand body.
3. Align the assembly base plate and using the (2) flat-head screws, screw
the base plate to the stand body.
4. Assembly is complete.
