Magtek DynaProx Inspection Manual

DynaProx and DynaProx BCR (barcode reader) deliver the next
generation in touchless payment acceptance. Both models come
standard with contactless EMV and near field communication (NFC)
technology for original equipment manufacturers (OEM), merchants,
banks, and other developers looking to build a secure payment solution
that accepts contactless EMV and NFC payments.
Top
The top is a smooth hard plastic.
Front
LEDs

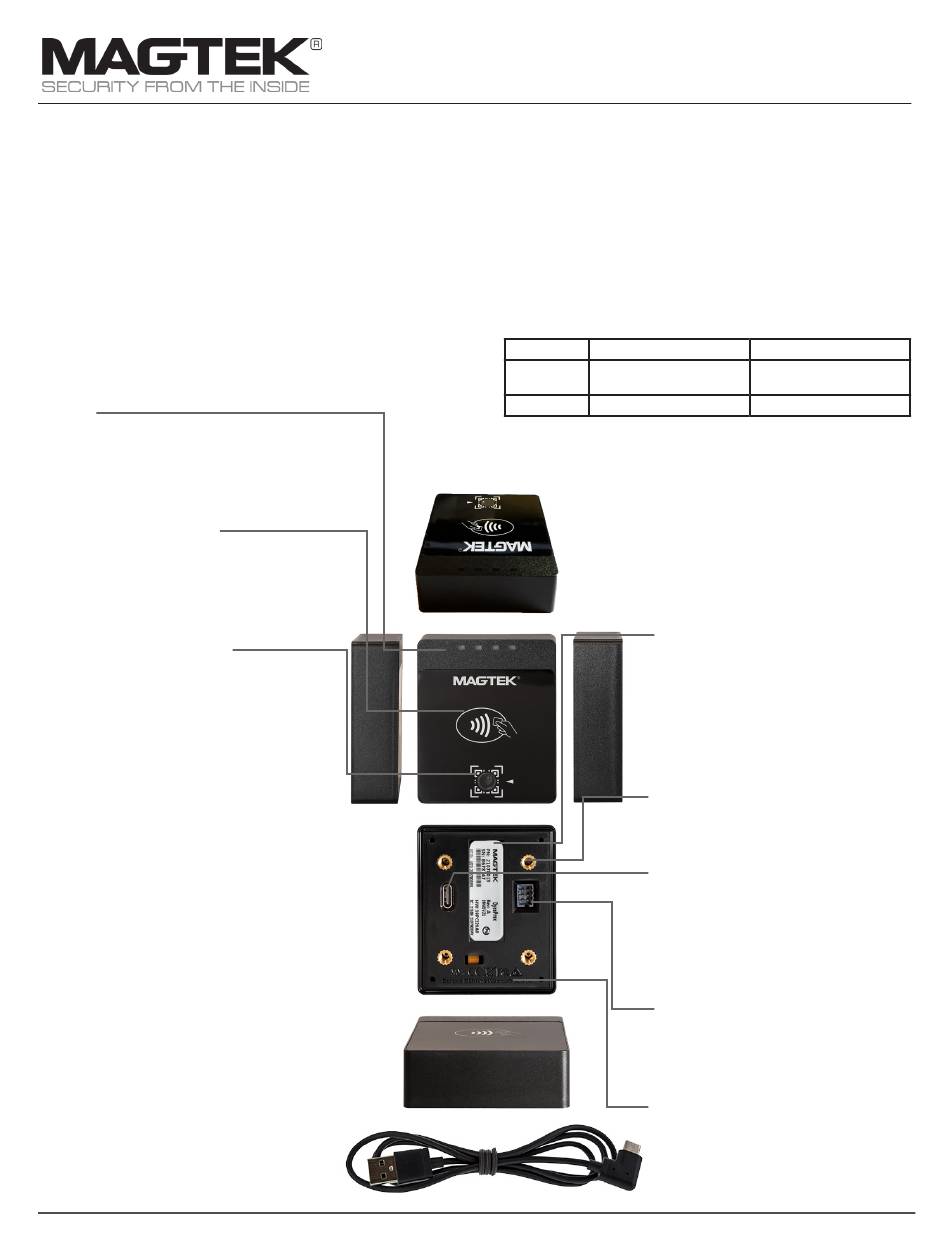

There are four LED lights on the front face of
DynaProx products. These provide signals to the
user. See installation and operation manual for
complete LED signaling.
Contactless Landing Zone
The contactless landing zone is a smooth front
cover with no moving parts with the contactless
symbol in the landing zone. Symbol orientation will
vary dependent on installation.
DynaProx BCR Models ONLY
The barcode reader camera on BCR models has
a silk screened QR Code icon surrounding the
camera lens with a directional arrow on the side.
The barcode reader is below the contactless
symbol. Mark orientation will vary dependent on
installation.
Sides
The right and left sides are smooth hard plastic.
Device Inspection Guide
Overview and Form Factor
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 562-546-6800 | f 562-546-6301 | www.magtek.com
DynaProx and DynaProx BCR
Form Factor
Check the overall form factor for signs of attempted entry. DynaProx
products are made from molded black plastic with a matching black
lens on the face. The contactless landing zone is a smooth front cover
with no moving parts, with the contactless symbol in the landing zone.
The surrounding case of DynaProx products is smooth and has no
extraneous wires, electronics, cables, or adhesives.
DynaProx
Dimensions 2.2 x 2.2 x 0.5 in
(55.88 x 55.88 x 12.7 mm)
Weight ~ 64 grams
Back
Carefully inspect the form factor. Ensure
there are no additional electronics, wires, or
forms added to the device. The underside of
DynaProx and DynaProx BCR are the same.
The underside of the device is a smooth form
factor with 4 threaded screw holes, a USB-C
receptacle, RS-232 receptacle, speaker, and
product label.
Product Label
The product label is located on the underside
of the device. The Serial Number, Rev, Date,
Part number (PN), Hardware PN (HW), FCC
ID and IC numbers are printed on the product
label. Compare the hardware ID on the PCI
website to confirm it is valid.
Mounting Insets
There are four (4) threaded inset receptacles
on the underside of the device.
USB-C Cable
USB-C connection is on the underside of the
device. The device uses a USB-C cable to
power and communicate. Ensure the cable
is connected directly to the correct host USB
port. Ensure there are no extraneous cables.
RS-232
RS-232 connection is on the back of the
device. Ensure the cable is connected directly
to the correct host port if used.
Certificate Logos
Certification logos and patent information are
imprinted in the plastic form factor.
Secure Module
DynaProx BCR
2.2 x 2.2 x 0.5 in
(55.88 x 55.88 x 12.7 mm)
~ 64 grams
