Magtek DynaProx Quick Start Manual

Overview
DynaProx and DynaProx BCR in stand (referred to as "Device" hereafter) deliver
the next generation in contactless EMV and near field communication (NFC)
technology and can be purchased with a countertop, angled stand for stable
acceptance at the counter top. The purpose of this document is to perform a
device inspection and understand how to access the isolated reader.

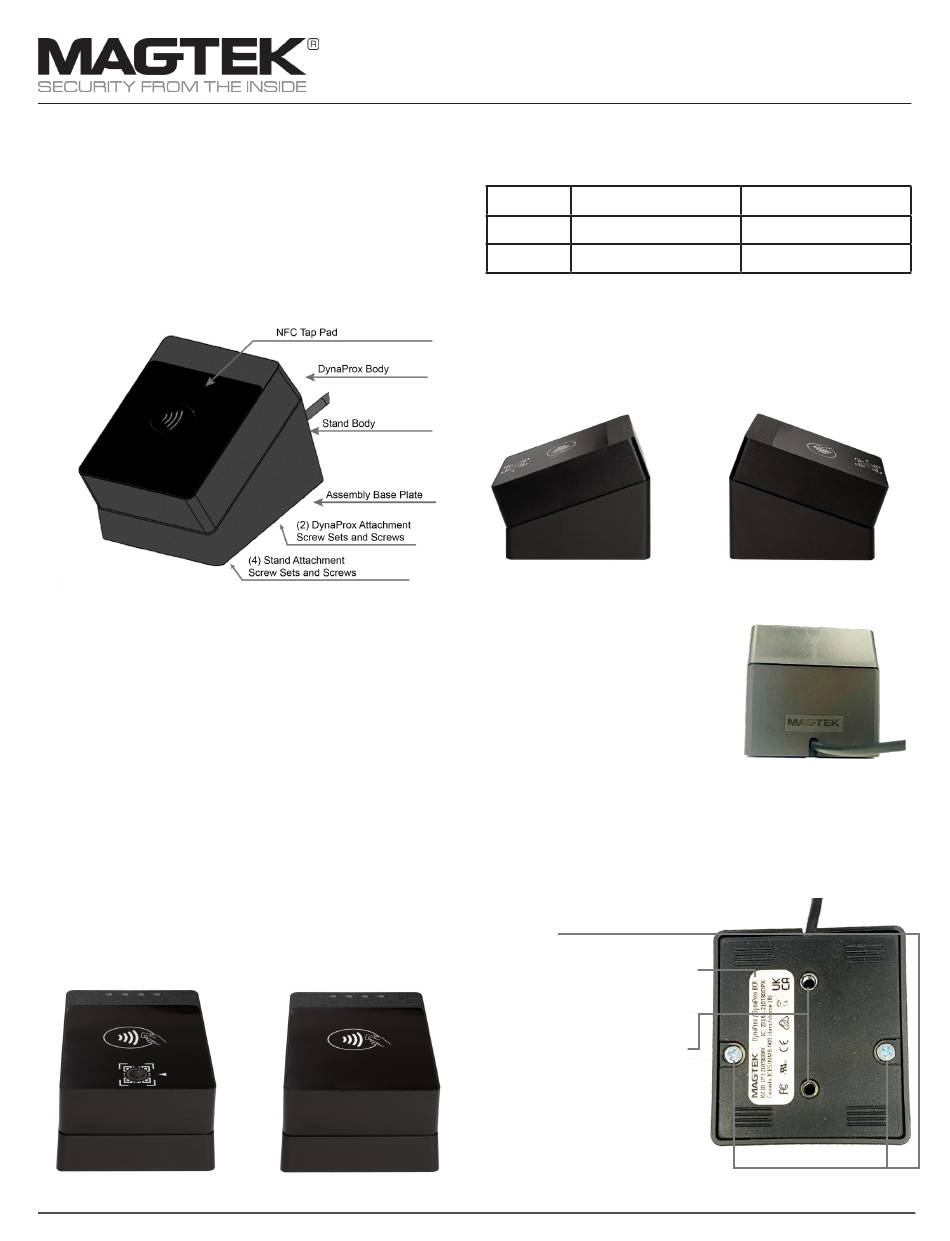

Major Components
DynaProx (shown here) Major Components - Assembled to Stand
Form Factor Stand Body
The body of the stand is angled for
better ergonomics. Check the overall
form factor for signs of attempted
entry. Made from molded black
plastic with matching black lens on
the face. The form factor is hard
plastic. The seam between the top
and underside shell is clearly defined
with a tight fit. There are no additional
electronics or wires. Any breaks in
the plastic, scuffs, or damage could
be signs of physical tampering and
should be reported.
Front and Top of Device
The front side and top of the reader
are smooth with no extraneous wires.
There is clear definition with a tight fit
between the reader and the stand.
DynaProx BCR Top and Front
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 651-415-6800 | f 562-546-6301 | www.magtek.com
DynaProx and DynaProx BCR Stand
Device Inspection
Assembled Inspection
LEDs
Four LEDs above the contactless
landing zone provide signals to the
user. See installation and operation
manual for complete LED signaling:
https://www.magtek.com/content/
documentationfiles/d998200490.pdf
Contactless Landing Zone
The contactless zone is on the top of
the device. BCR models have a lens
for the barcode camera.
DynaProx BCR Models ONLY
Barcode (BCR) models have a
camera and QR Code icon on the top.
DynaProx Only Models
Models without barcode reader are
identical, but do not have a camera
lens nor QR code printed on the top.
DynaProx Top and Front
DynaProx and DynaProx BCR
Dimensions
2.09 in. x 2.52 in. x .72 in.
(53mm x 64mm x18.5mm)
Weight DynaProx = 2.0 oz. (56g)
DynaProx BCR = 2.0 oz. (58g)
Look for any added components, size, or weight. Check for signs of cutting,
tapping, and bending.
Right and Left Side
The sides are smooth with clear definition between the reader and the stand
with no extraneous wires other than the USB wire that comes out of the back of
the reader.
Device Right Side
Device and Stand back
Cable Channel:
Allows the cable to
be channeled out the back of the stand
body.
Bottom of Device
Bottom PN 10000008309
Soft elastomer bottom cover over steel ballast weight is on the bottom of the
device stand. There are 4 screw insets.
Two (2) screws attach the baseplate
to the stand.
There is an EMC regulatory label with
certification logos and certification ID
numbers, MagTek logo, and name as
depicted here.
Two (2) insets are to attach the stand
to a counter.
Device Inspection
DynaProx and DynaProx BCR
in Stand
2.17 x 2.64 x 2.09"
(55 x 67 x 53mm)
DynaProx: 6.7 oz. (190g)
DynaProx BCR: 6.8 oz. (192g)
Device Left Side
Device Back Side
Device Bottom Side
