Magtek DynaProx Acceptance Inspection Manual

DynaProx and DynaProx BCR (barcode reader) deliver the next generation
in touchless payment acceptance. Both models come standard with
contactless EMV and near field communication (NFC) technology for original
equipment manufacturers (OEM), merchants, banks, and other developers
looking to build a secure payment solution that accepts contactless EMV
and NFC payments.
Form Factor

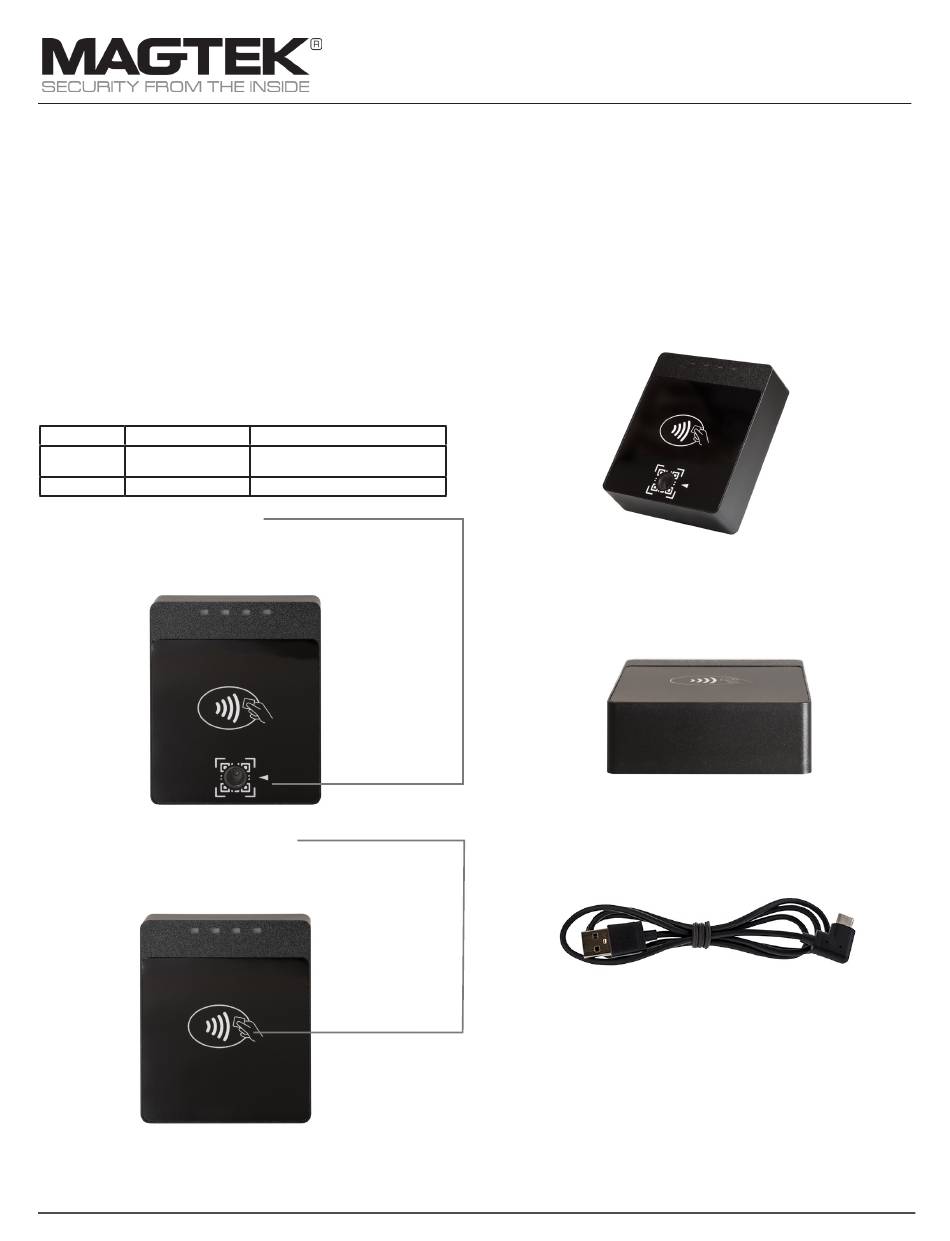

Check the overall form factor for signs of attempted entry. BCR models will
have a camera. DynaProx products are made from molded black plastic with
matching black lens on the face. Contactless landing zone is a smooth front
cover with no moving parts and only the contactless symbol in the landing
zone. Contactless indicator mark orientation may vary.
DynaProx
Dimensions 2.2 x 2.2 x 0.5 in
(55.88 x 55.88 x 12.7 mm)
Weight ~ 64 grams
DynaProx BCR Models ONLY
The barcode reader camera on BCR models has a silk screened QR Code
icon surrounding the camera lens with a directional arrow on the side.
Device orientation will vary dependent on installation.
All Models Contactless Landing Zone
The contactless landing zone is a smooth front cover with no moving parts
and only the contactless symbol in the landing zone. Contactless indicator
mark orientation may vary. (DynaProx model shown below)
Device Inspection Guide
Form Factor
DynaProx BCR
2.2 x 2.2 x 0.5 in
(55.88 x 55.88 x 12.7 mm)
~ 64 grams
MagTek ® Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 651-415-6800 | f 562-546-6301 | www.magtek.com
DynaProx and DynaProx BCR
Right Angled Side
There are four LED lights on the front face of DynaProx products. These
provide signals to the user. See installation and operation manual for
complete LED signaling.
Contactless Landing Zone
The contactless landing zone is a smooth front cover with no moving parts
and only the contactless symbol in the landing zone. Contactless indicator
mark orientation may vary.
Surrounding Case and Cable
The contactless landing zone is slightly inset from the surrounding case.
The surrounding case of the DynaProx products is smooth and has no
extraneous wires, electronics, cables, or adhesives.
USB-C Cable
The device uses a USB-C cable to power and communicate. Ensure there
are no extraneous cables.
Device Inspection
Secure Module
