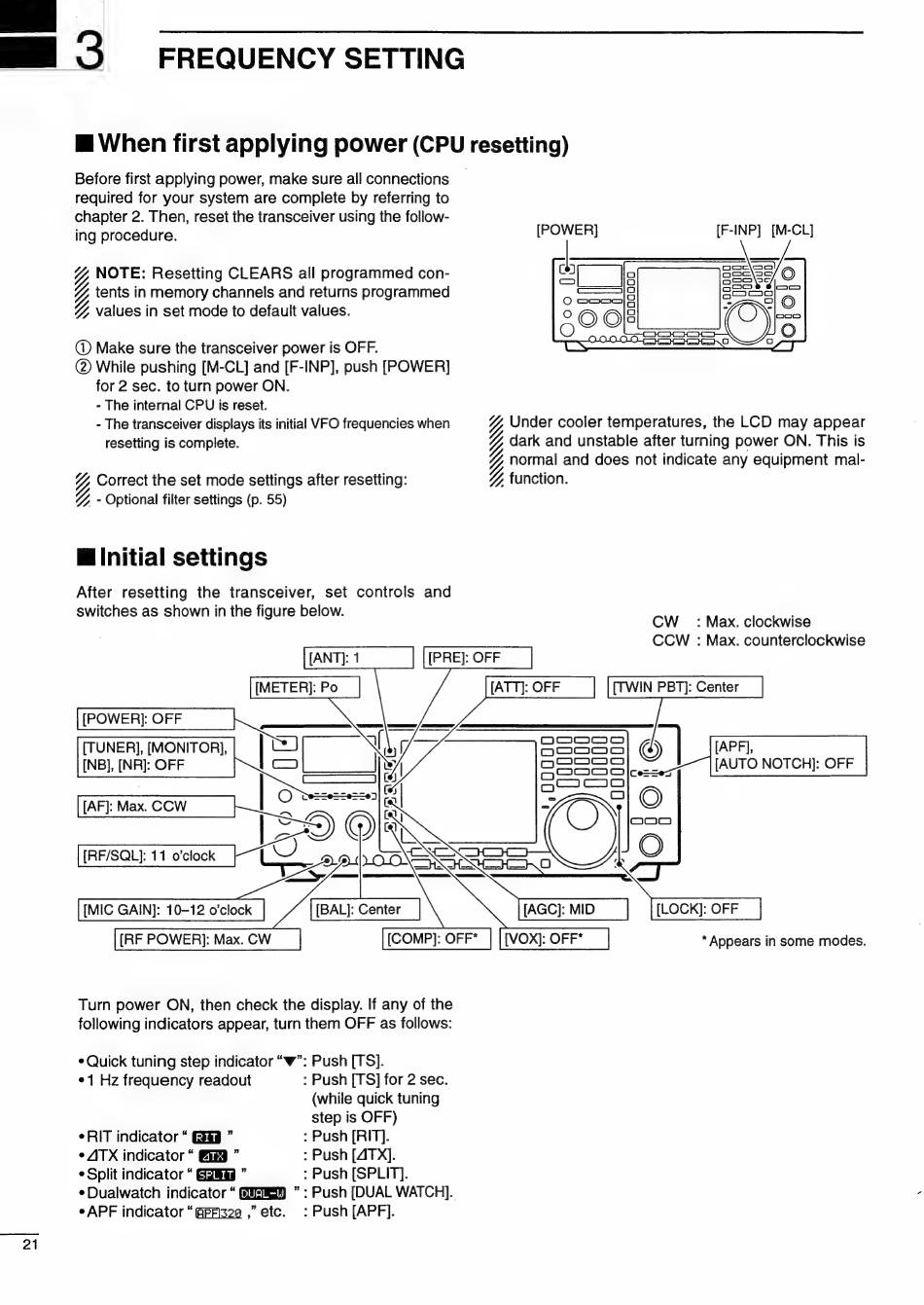

Frequency Setting - Icom IC-756 Instruction Manual

21
= 3
Before first applying power, make sure all connections
required for your system are complete by referring to
chapter 2. Then, reset the transceiver using the follow-
ing procedure.
% NOTE: Resetting CLEARS all programmed con-
Y tents in memory channels and returns programmed
%, values in set mode to default values.
@ Make sure the transceiver power is OFF.
®© While pushing [M-CL] and [F-INP], push [POWER]
for 2 sec. to turn power ON.
- The internal CPU is reset.
- The transceiver displays its initial VFO frequencies when
resetting is complete.
Y orrect the set mode settings after resetting:
YU - Optional filter settings (p. 55)
E initial settings
After resetting the transceiver, set controls and
switches as shown in the figure below.
[POWER]: OFF
[TUNER], [MONITOR],
[NB], [NR]: OFF
|
==e==e==0]
r= @
[MIC GAIN]: 10-12 o'clock [BAL]: Center
[RF POWER]: Max. CW
Es)
om
O
g
Turn power ON, then check the display. If any of the
following indicators appear, turn them OFF as follows:
e Quick tuning step indicator "w": Push [TS].
e1 Hz frequency readout : Push [TS] for 2 sec.
(while quick tuning
step is OFF)
e RIT indicator " E : Push [RIT].
e ATX indicator " j : Push [ATX].
e Split indicator " ý : Push [SPLIT].
e Dualwatch indicator " ": Push [DUAL WATCH].
e APF indicator "@prisza ," etc. : Push [APF].
FREQUENCY SETTING
[COMP]: OFF*
E When first applying power (CPU resetting)
[POWER] [F-INP] [M-CL]
oO
oO
Q
D
Q
(mm
oO
Under cooler temperatures, the LCD may appear
dark and unstable after turning power ON. This is
normal and does not indicate any equipment mal-
function.
Y
i
i
h
CW : Max. clockwise
CCW : Max. counterclockwise
[AGC]: MID
[VOX]: OFF*
[LOCK]: OFF
* Appears in some modes.
