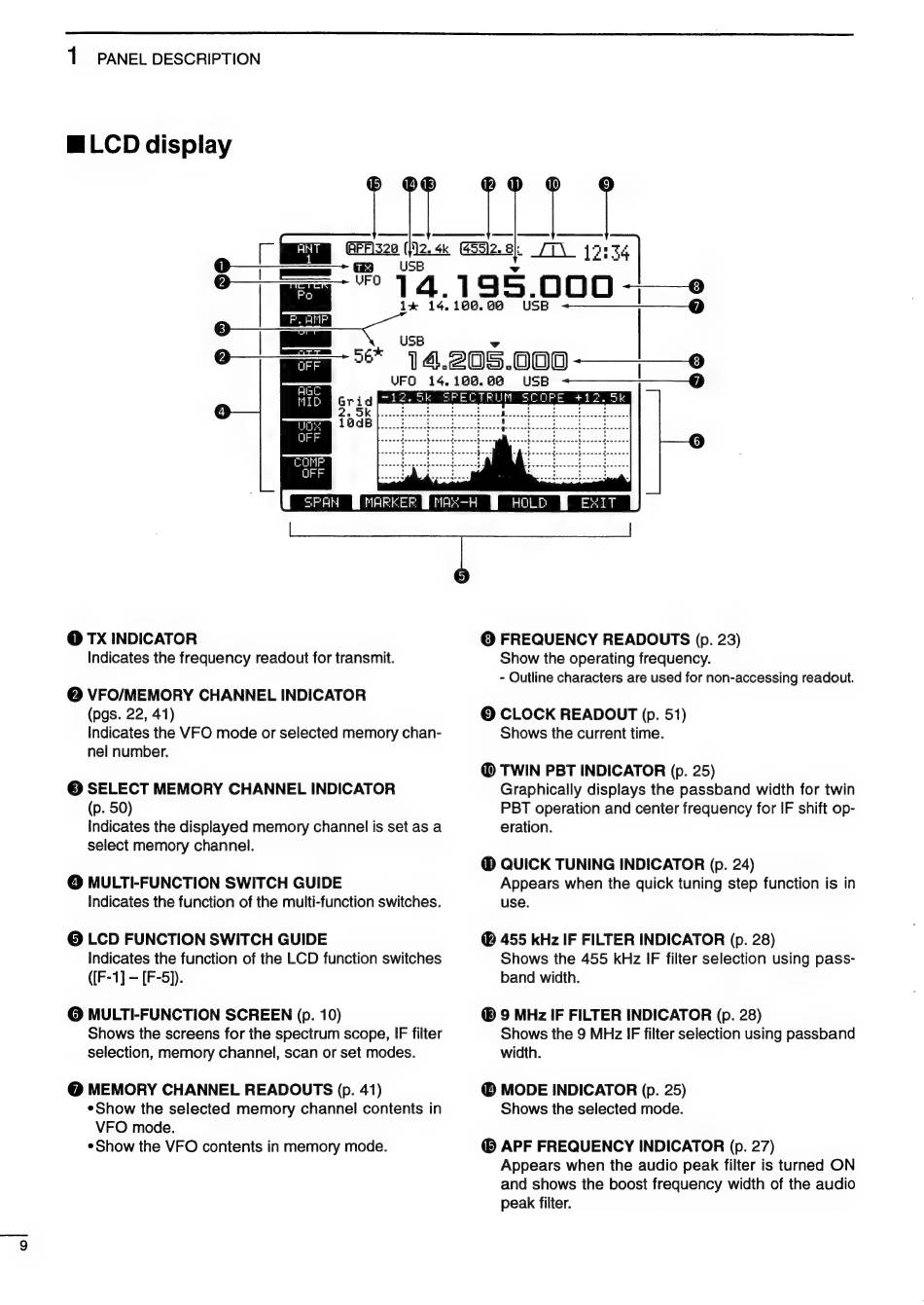

{ PANEL DESCRIPTION
E LCD display
0— m"
@— Ea °° 14
P. AMP
oT ma, us
oss 56*
-12, 5k
@ TX INDICATOR
Indicates the frequency readout for transmit.
@ VFO/MEMORY CHANNEL INDICATOR
(pgs. 22, 41)
Indicates the VFO mode or selected memory chan-
nel number.
© SELECT MEMORY CHANNEL INDICATOR
(p. 50)
Indicates the displayed memory channel is set as a
select memory channel.
© MULTI-FUNCTION SWITCH GUIDE
indicates the function of the multi-function switches.
© LCD FUNCTION SWITCH GUIDE
Indicates the function of the LCD function switches
({F-1] — [F-5]).
© MULTI-FUNCTION SCREEN (p. 10)
Shows the screens for the spectrum scope, IF filter
selection, memory channel, scan or set modes.
@ MEMORY CHANNEL READOUTS (p. 41)
eShow the selected memory channel contents in
VFO mode.
Show the VFO contents in memory mode.
14.208. 000 a re
UFO 14.100. 00 USB
SPECTRUM oem S +12. 5k
34
95 as
ix 14,198.00 USB
© FREQUENCY READOUTS (p. 23)
Show the operating frequency.
- Outline characters are used for non-accessing readout.
© CLOCK READOUT (p. 51)
Shows the current time.
@ TWIN PBT INDICATOR (p. 25)
Graphically displays the passband width for twin
PBT operation and center frequency for IF shift op-
eration.
@ QUICK TUNING INDICATOR (p. 24)
Appears when the quick tuning step function is in
use.
@ 455 kHz IF FILTER INDICATOR (p. 28)
Shows the 455 kHz IF filter selection using pass-
band width.
® 9 MHz IF FILTER INDICATOR (p. 28)
Shows the 9 MHz IF filter selection using passband
width.
® MODE INDICATOR (p. 25)
Shows the selected mode.
© APF FREQUENCY INDICATOR (p. 27)
Appears when the audio peak filter is turned ON
and shows the boost frequency width of the audio
peak filter.
