Icom IC-756 Instruction Manual page 17

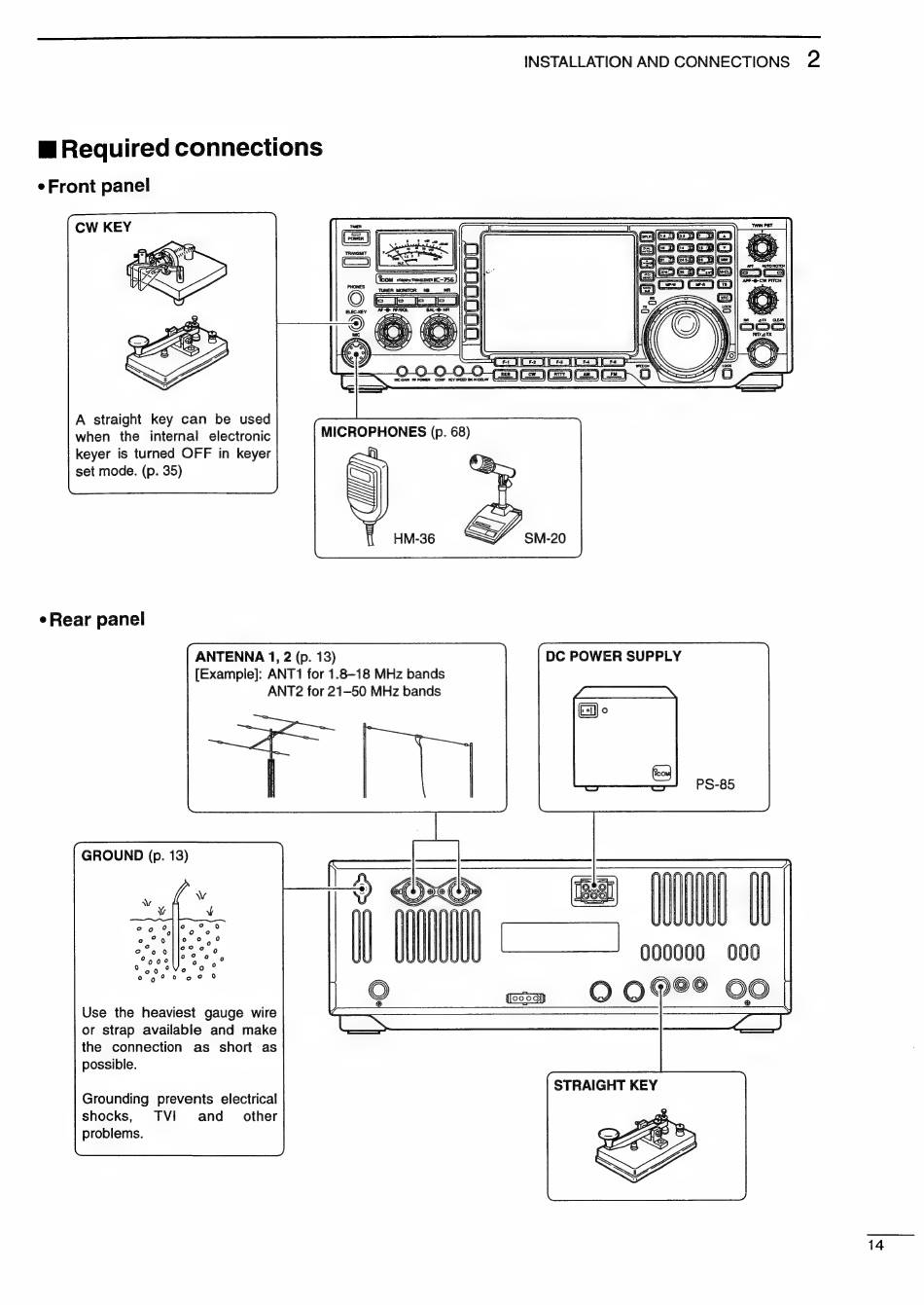

INSTALLATION AND CONNECTIONS 2
E Required connections
e Front panel
(eom wane nao c~756) ||
TUNER MONITOR NB. Ne
ee eE
A straight key can be used
when the internal electronic
keyer is turned OFF in keyer
set mode. (p. 35)
e Rear panel
ANTENNA 1, 2 (p. 13)
[Example]: ANT1 for 1.8—18 MHz bands
ANT2 for 21-50 MHz bands
DC POWER SUPPLY
GROUND (p. 13)
NL) Oy (
AT We j
A H
u y Hg
i H ji l il ij
l i! FTI
Y V UY
| 000000 000
O O98 00
Use the heaviest gauge wire
or strap available and make
the connection as short as
possible.
STRAIGHT KEY
Grounding prevents electrical
shocks, TVi and other
problems.
