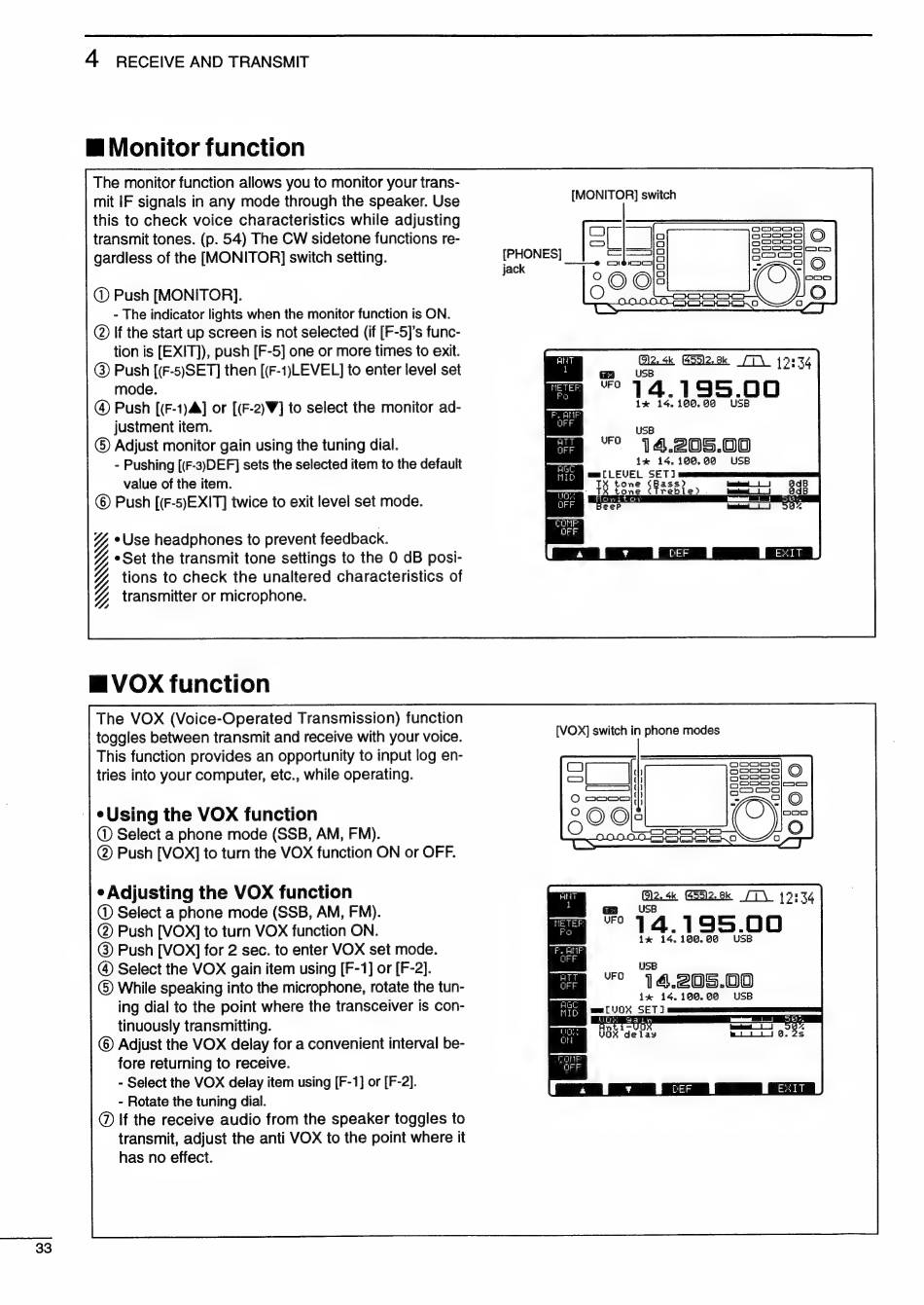

| ° Using the VOX function
4 RECEIVE AND TRANSMIT
E Monitor function
The monitor function allows you to monitor your trans-
mit IF signals in any mode through the speaker. Use
this to check voice characteristics while adjusting
transmit tones. (p. 54) The CW sidetone functions re-
gardless of the [MONITOR] switch setting.
@ Push [MONITOR].
- The indicator lights when the monitor function is ON.
@ If the start up screen is not selected (if [F-5]'s func-
tion is [EXIT]), push [F-5] one or more times to exit.
G) Push [(F-5)SET] then [(F-1)LEVEL] to enter level set
mode.
@ Push [(F-1)4] or [(F-2)W] to select the monitor ad-
justment item.
© Adjust monitor gain using the tuning dial.
- Pushing [(F-3)DEF] sets the selected item to the default
value of the item.
© Push [(F-5)EXIT] twice to exit level set mode.
Y «Use headphones to prevent feedback.
e Set the transmit tone settings to the O dB posi-
tions to check the unaltered characteristics of
transmitter or microphone.
E VOX function
The VOX (Voice-Operated Transmission) function
toggles between transmit and receive with your voice.
This function provides an opportunity to input log en-
tries into your computer, etc., while operating.
@ Select a phone mode (SSB, AM, FM).
(2) Push [VOX] to turn the VOX function ON or OFF.
e Adjusting the VOX function
@ Select a phone mode (SSB, AM, FM).
@ Push [VOX] to turn VOX function ON.
(3) Push [VOX] for 2 sec. to enter VOX set mode.
@ Select the VOX gain item using [F-1] or [F-2].
© While speaking into the microphone, rotate the tun-
ing dial to the point where the transceiver is con-
tinuously transmitting.
© Adjust the VOX delay for a convenient interval be-
fore returning to receive.
- Select the VOX delay item using [F-1] or [F-2].
- Rotate the tuning dial.
@ If the receive audio from the speaker toggles to
transmit, adjust the anti VOX to the point where it
has no effect.
[MONITOR] switch
| =
[PHONES] jek = 3
ceca oO
ara Giza ST. 12:34
* 14.195.00
ix 14.100.009 USB
USB
= 14.205.00
ix i4.100.80 USB
mm CLEVEL SETI
TX tone (Bass?
: tone (Treble) .
Onit OY
COMP
OFF
[VOX] switch in phone modes
"> 14 195.00
ix i4.100.00 USB
USB
o 14,205.00
i+ 14.106.90 USB
UGK
Hn 1-
VOX delay
Gain
u S?
COMP
OFF
