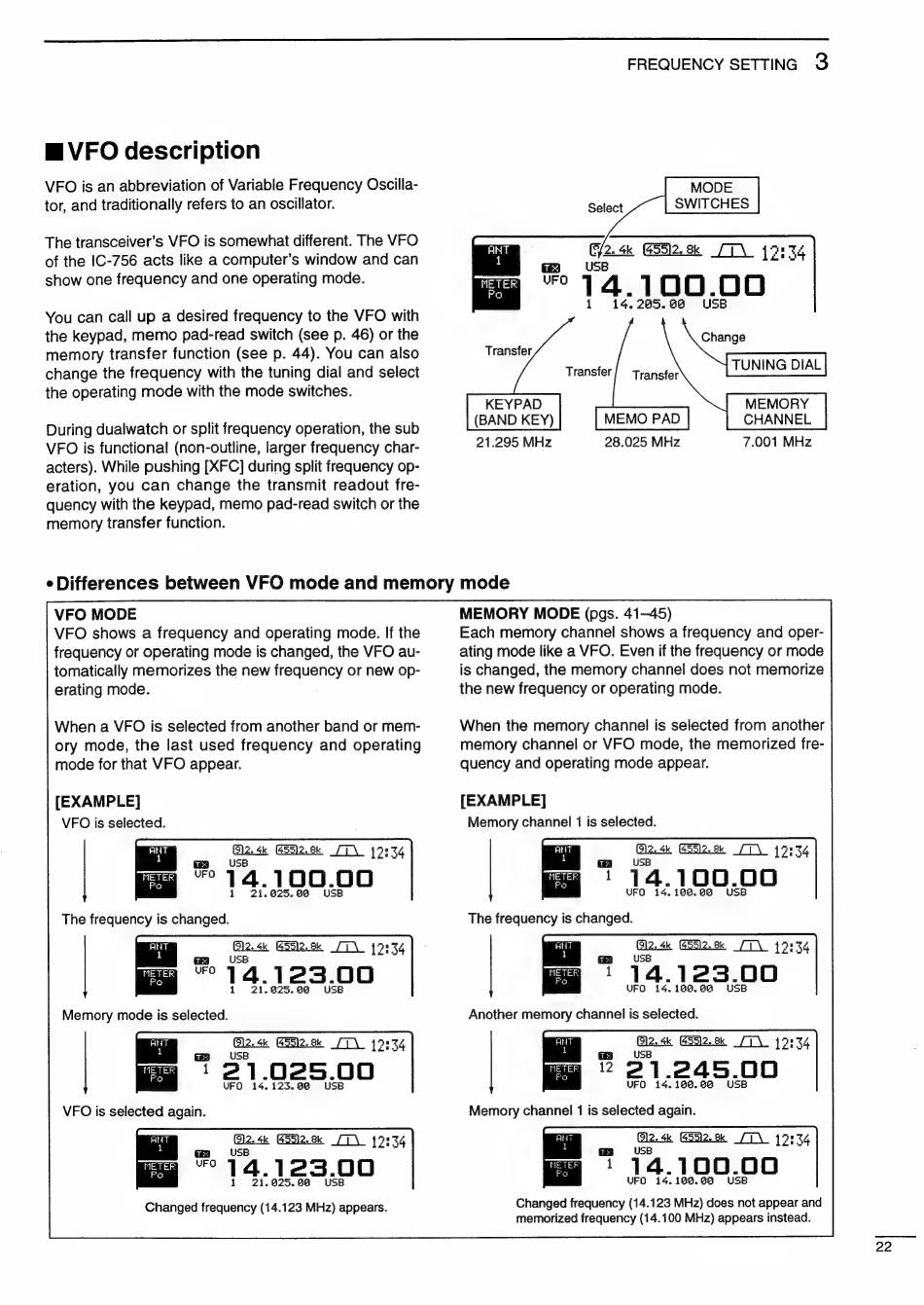

E VFO description
VFO is an abbreviation of Variable Frequency Oscilla-
tor, and traditionally refers to an oscillator.
The transceiver's VFO is somewhat different. The VFO
of the IC-756 acts like a computer's window and can
show one frequency and one operating mode.
You can call up a desired frequency to the VFO with
the keypad, memo pad-read switch (see p. 46) or the
memory transfer function (see p. 44). You can also
change the frequency with the tuning dial and select
the operating mode with the mode switches.
During dualwatch or split frequency operation, the sub
VFO is functional (non-outline, larger frequency char-
acters). While pushing [XFC] during split frequency op-
eration, you can change the transmit readout fre-
quency with the keypad, memo pad-read switch or the
memory transfer function.
FREQUENCY SETTING 3
MODE
cisa SWITCHES
Gy2.4k 6552.Sk /T\ forte
USB
=" 14.100.00
14. 265.96 USB
Change
TUNING DIAL
MEMORY
CHANNEL
7.001 MHz
MEMO PAD
28.025 MHz
KEYPAD
(BAND KEY)
21.295 MHz
e Differences between VFO mode and memory mode
VFO MODE
VFO shows a frequency and operating mode. If the
frequency or operating mode is changed, the VFO au-
tomatically memorizes the new frequency or new op-
erating mode.
When a VFO is selected from another band or mem-
ory mode, the last used frequency and operating
mode for that VFO appear.
[EXAMPLE]
VFO is selected.
Gia, 4k Eek /T\ 19:34
vo 14. 100.00
21.025.99 USB
The frequency is changed.
Biz se caz sk /T 191%
vo 14. 123.00
21.825. 00 USB
Memory mode is selected.
azs Gsk fT \ 13:34
USB
5.00
UFO 14. 123.98 USB
VFO is selected again.
— G@552.8k /T\ {2:34
14. 123.00
21. 0253.00 USB
Changed frequency (14.123 MHz) appears.
MEMORY MODE (pgs. 41-45)
Each memory channel shows a frequency and oper-
ating mode like a VFO. Even if the frequency or mode
is changed, the memory channel does not memorize
the new frequency or operating mode.
When the memory channel is selected from another
memory channel or VFO mode, the memorized fre-
quency and operating mode appear.
[EXAMPLE]
Memory channel 1 is selected.
| 14.100.00
UFO 14.18.90 USB
The frequency is changed.
55)2. 8k Zane 12234
USB B
3.00
UFO 14.100.00 USB
Another memory channel is selected.
G@i2.4k G52. 8 AIA 1234
21.245.00
UFO 14.100.060 USB
Memory channel 1 is selected again.
@i2z.4k G28 /T\ 13934
14.100.00
UFO 14.199.66 USB
Changed frequency (14.123 MHz) does not appear and
memorized frequency (14.100 MHz) appears instead.
