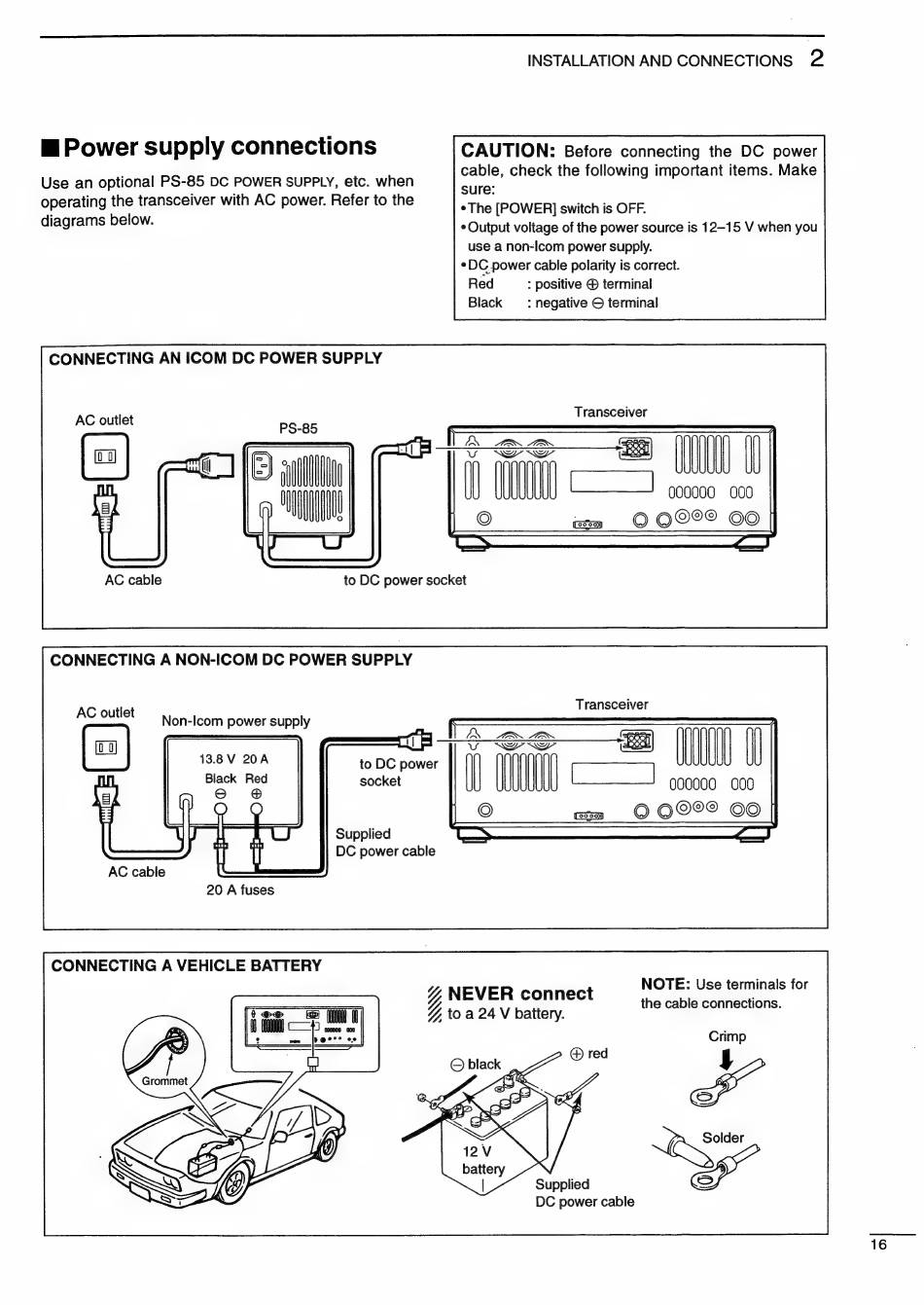

E Power supply connections
Use an optional PS-85 DC POWER SUPPLY, etc. when
operating the transceiver with AC power. Refer to the
diagrams below.
CONNECTING AN ICOM DC POWER SUPPLY
AC outlet
AC cable
CONNECTING A NON-ICOM DC POWER SUPPLY
13.8 V 20A
Black Red socket
Supplied
DC power cable
AC cable
20 A fuses
CONNECTING A VEHICLE BATTERY
to DC power
% NEVER connect
Y to a 24 V battery.
INSTALLATION AND CONNECTIONS 2
CAUTION: Before connecting the DC power
cable, check the following important items. Make
sure:
¢The [POWER] switch is OFF.
¢ Output voltage of the power source is 12-15 V when you
use a non-lcom power supply.
e DC power cable polarity is correct.
Red : positive ® terminal
Black : negative © terminal
Transceiver
000000 000
to DC power socket
Transceiver
= iil) |
000000 000
cm © Q000 OO
NOTE: Use terminals for
the cable connections.
Crimp
SY
Supplied
DC power cable
16
