3 - Power input connection to Dispenser - connecting cables - :

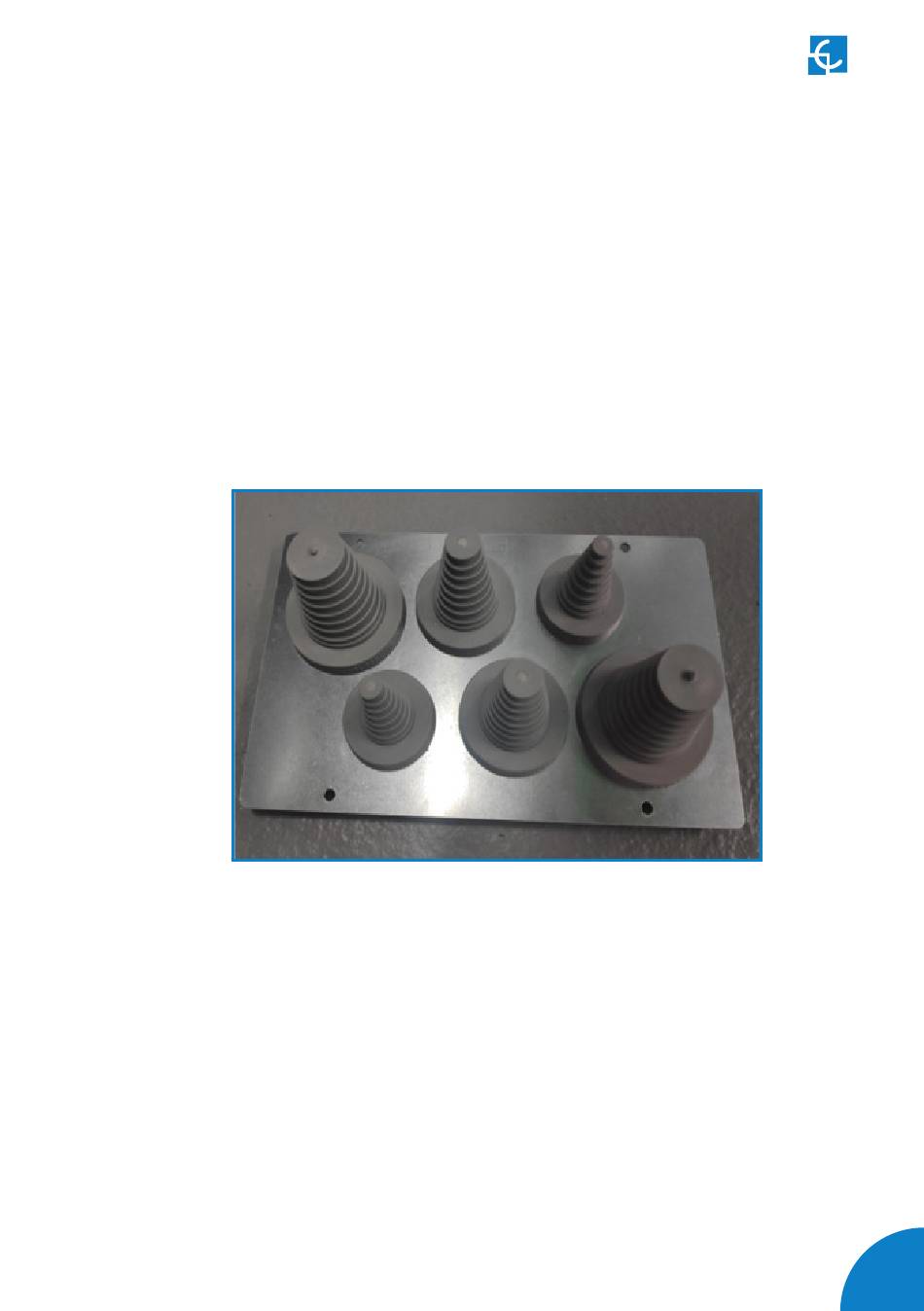

In Dispenser bottom part is located the entrance of connecting cables from the Power
Unit.
It is used the system
tection enclosure rating.
In each grommet it is recommended to pass through the cables specified just below.
CCS+
CCS+
SINGLE-PHASE LINE
SINGLE-PHASE LINE
multi-range cable grommets in pyramid shape to ensure IP pro-
PE
PE
ETHERNET
ETHERNET
CHA+
CHA+
DC-
DC-
50
