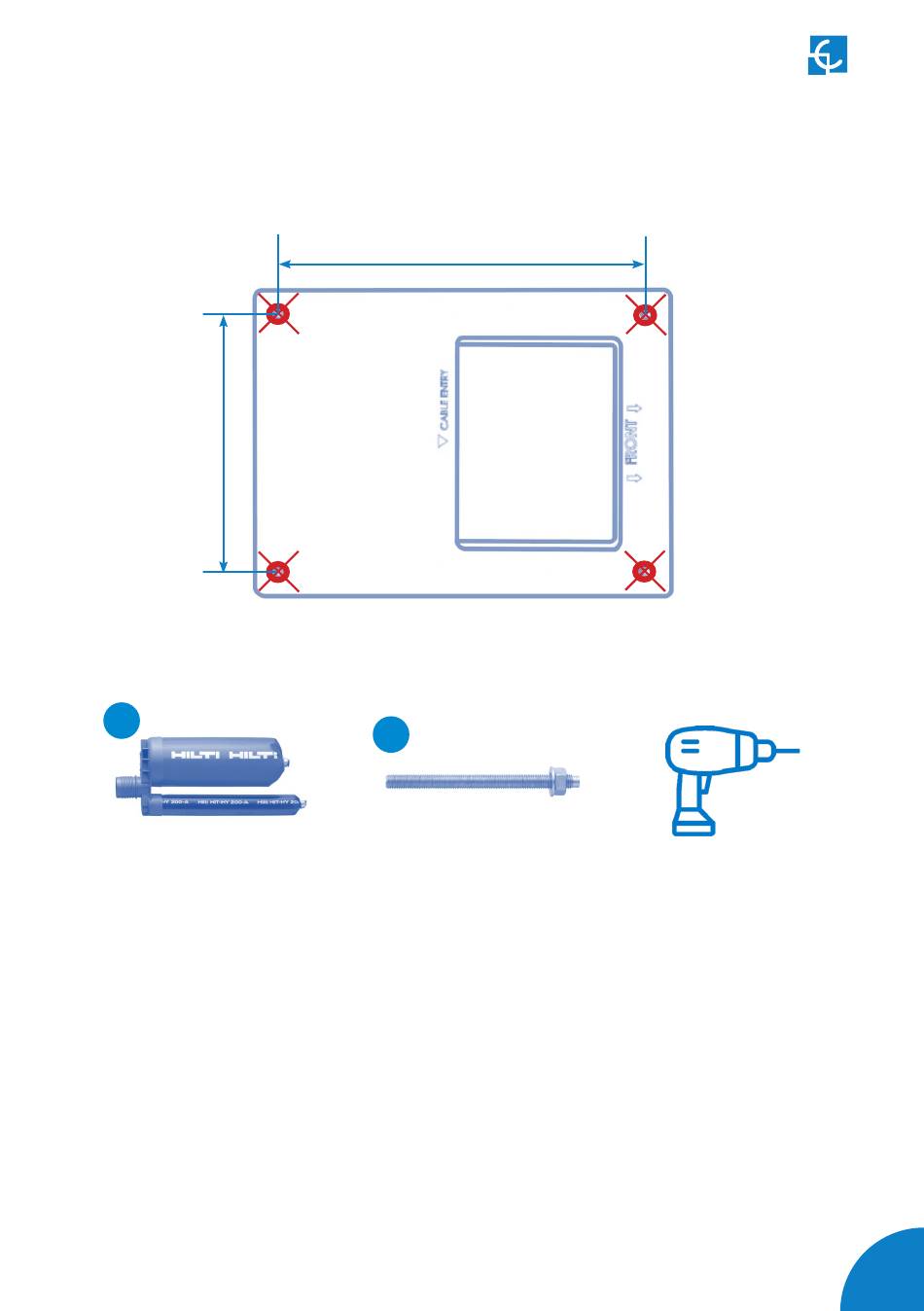

TEMPLATE FOR POWER UNIT
475
What's needed:
4x
Injection resin
Hilti HIT-HY 200-A
INSTALLATION ADVICE:
•
Base material: C16/20 concrete, fc=16N/mm
•
Minimum thickness of base material: 150 mm
•
Hole diameter in base material: 14 mm
•
Drilling depth: 120 mm
•
Installation tightening torque: 40 Nm
673
4x
Anchor rod
Hilti HAS-U-A4 M12
, h=200 mm
2
Units specified in millimetres
Hammer driller
36
