Wiring

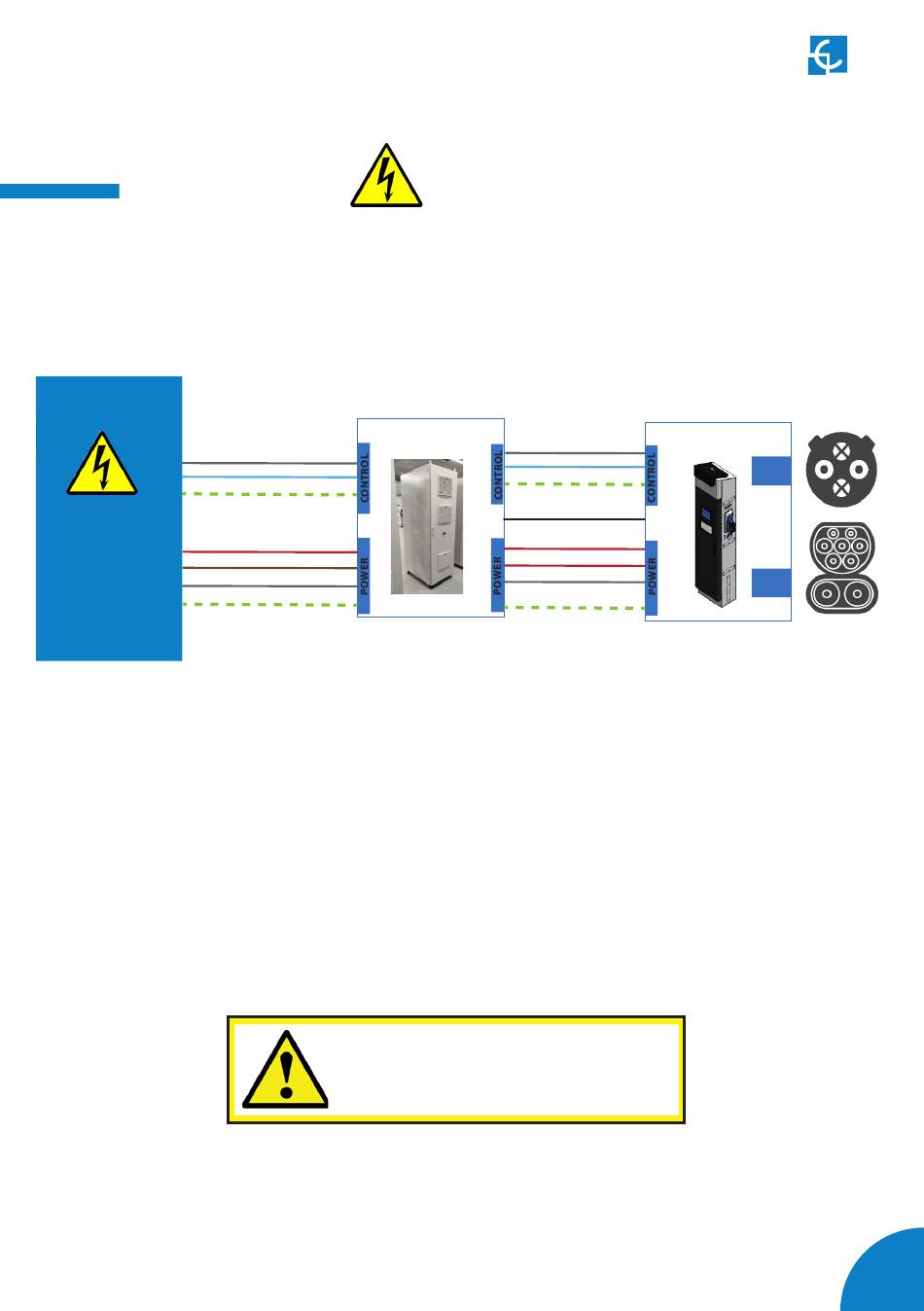

Diagram of connection of a Power Unit to CCS-CHA dispenser
non-simultaneous:
L
N
PE
Electric
L1
input
L2
power L3
PE
- CCS+/CHA+/DC-: Power cables
- PE: Earth cable for the Dispenser and Power Unit.
- L+N+PE: Supply for the electronics.
- L1+L2+L3+PE: Power Supply for the Power Unit.
- Ethernet Cable: Communications between Power Unit and Dispenser.
Note: Maximum distance of the installation between power unit and dispenser is 30m.
POWER UNIT 200
L
MASTER
N
PE
ETH
CCS+
CHA+
DC-
PE
Recommended Ethernet cable type:
S/FTP Cat5e
DISPENSER 200kW
CHA
DC-OUTLET
CCS
DC-OUTLET
