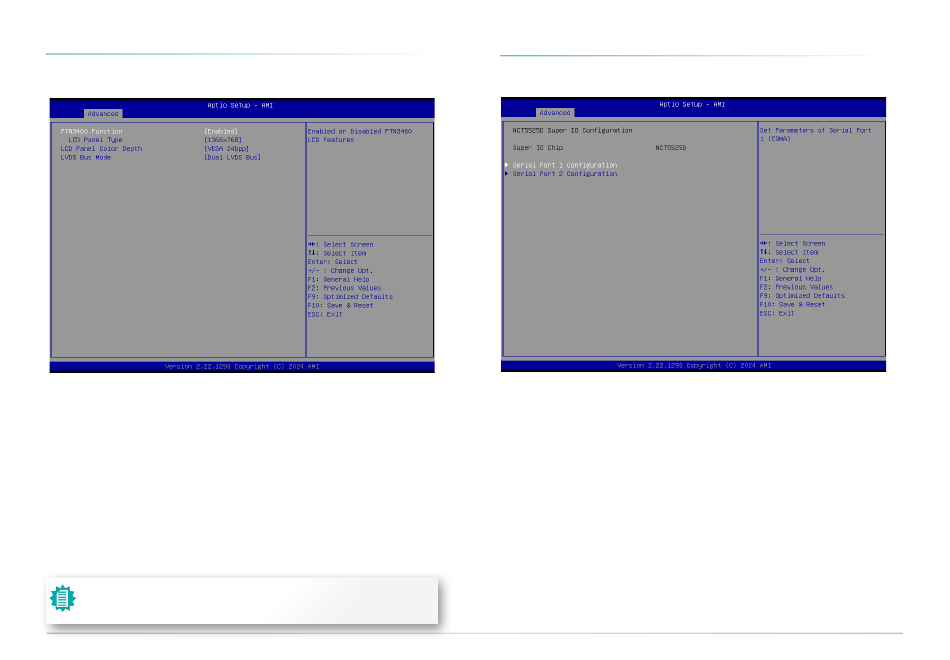

PTN3460 Configuration

PTN3460 Function

Enable or Disable PTN3460 LCD Features. When this field is disabled, the following fields will

remain hidden.

LCD Panel Type

Select the resolution of the LCD Panel — 800X480, 800X600, 1024X768, 1366X768,

1280X1024, 1920X1080, or 1920X1200.

LCD Panel Color Depth

Select the color depth of the LCD Panel — VESA 24bpp, JEIDA 24bpp, VESA and JEIDA 18 bpp.

LVDS Bus Mode

Select PTN3460 LVDS BUS Mode : Single LVDS Bus /Dual LVDS Bus

Note:

The configuration must match the specifications of your LCD Panel in order for

the LCD Panel to display properly.
