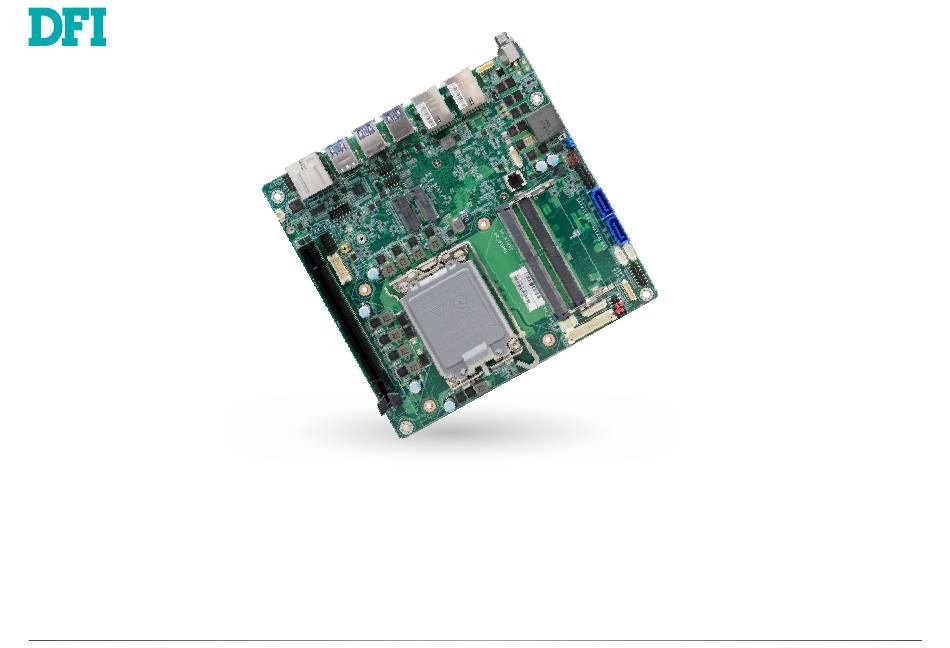

  • Page 1 RPS101_RPS103 Thin Mini-ITX Industrial Motherboard User’s Manual © August 29, 2024 DFI Inc.
  • Page 2 Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be repro- This equipment has been tested and found to comply with the limits for a Class B digital duced in any form or by any means or used to make any transformation/adaptation without the device, pursuant to Part 15 of the FCC rules.
  • Page 3: Table Of Contents

    ACPI Settings .........................39 Network Stack Configuration..................40 Chapter 1 - Introduction........................ 6 NVMe Configuration ......................41 Specifications ......................... 6 DFI WDT Configuration ....................41 Block Diagram ........................10 USB Power Control ......................42 Dimension ..........................10 Tls Auth Configuration ....................42 Chapter 2 - Hardware Installation ....................11 Chipset ..........................43...
  • Page 4 About this Manual Static Electricity Precautions This manual can be downloaded from the website. It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer The manual is subject to change and update without notice, and may be based on editions that components without causing any signs of physical damage.
  • Page 5 When installing the system board in a new system, you will need at least the following internal please contact your dealer or sales representative for assistance. components. • Memory module • 1 RPS101/RPS103 motherboard • Storage device such as a hard disk drive. • 1 COM port cable (Length: 250mm, 1 x COM port) •...
  • Page 6: Chapter 1 - Introduction

    Chapter 1 INTRODUCTION Chapter 1 - Introduction X Specifications SYSTEM Processor 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W ® Intel Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W ®...
  • Page 7 4096x2160 @ 60Hz LVDS: resolution up to 1920x1200 @ 60Hz 1 x DFI display extension port (DP/HDMI/VGA available) Quad Displays DP++ + HDMI + LVDS/eDP +USB Type C +DFI display extension port (DP/HDMI/VGA available) User's Manual | RPS101_RPS103...
  • Page 8 H610E: 2 x USB 2.0 (1 2x5 2.0mm pitch header) Display 1 x eDP/LVDS 1 x DFI display extension port (DP/HDMI/VGA available) Audio 1 x Front Audio Header (1 x Line-out, 1 x Mic-in) SATA 2 x SATA 3.0 (up to 6Gb/s) 2 x SATA Power RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn.)
  • Page 9 Chapter 1 INTRODUCTION POWER Type RPS101: Single 12V +/-10% DC RPS103: Wide Range 12~28V Connector DC-in Jack Right Angle Connector (4-pin) (available upon request) Straight Type Connector (4-pin) (available upon request) Consumption RTC Battery CR2032 Coin Cell OS SUPPORT Microsoft...
  • Page 10: Block Diagram

    Chapter 1 INTRODUCTION X Dimension X Block Diagram User's Manual | RPS101_RPS103...
  • Page 11: Chapter 2 - Hardware Installation

    Chapter 2 HARDWARE INSTALLATION Chapter 2 - Hardware Installation X Board Layout Top View Bottom View REV.1 ETX2 ETD4 ETD3 M.2-M(R6) UBD6 UBD7 ETU6 ETD18 ETD17 UBD9 UBD8 UBD13 UBD12 UBU1 ETL1 DPQ701 U126 M2CN1 UBSC2 U107 U8007 SOFB1 SOFB2 U8047 SOQ26 SOQ21 M2U41...
  • Page 12 Chapter 2 HARDWARE INSTALLATION DC-in SATA1 (R4) 2.5G LAN 1 SATA Power Connector 2.5G LAN 2 eSPI Connector USB3.2 Gen2 DIO Connector R680E/Q670E - USB3.2 Gen2 LCD Panel Power Supply H610E - USB2.0 R680E/Q670E - LVDS LCD Inverter Connector ▲ USB3.2 Gen2 ▼USB Type-C H610E - ▲...
  • Page 13: Installing The Heat Sink

    Chapter 2 HARDWARE INSTALLATION X Installing the heat sink Installing the Heat Sink The CPU must be kept cool by using a heat sink, otherwise the CPU will overheat damaging both the CPU and system board. 1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the CPU.
  • Page 14: Jumper Settings

    Chapter 2 HARDWARE INSTALLATION X Jumper Settings LVDS LCD Panel Power Supply (DPJP601) Clear CMOS Data (JP5) „ 1-2 On: Normal (Default) „ 2-3 On: Clear CMOS Data „ 1-2 On: 3.3V (Default) „ 2-3 On: 5V User's Manual | RPS101_RPS103...
  • Page 15: Lvds Lcd Inverter Connector (Dpjp602)

    Chapter 2 HARDWARE INSTALLATION LCD Panel Power Supply (DPJP603) LVDS LCD Inverter Connector (DPJP602) „ 1-2 On: 12V (Default) „ 2-3 On: 5V „ 1-2 On: 12V „ 3-4 On: 5V „ 5-6 On: 3.3V (Default) User's Manual | RPS101_RPS103...
  • Page 16: Pin Assignment

    Chapter 2 HARDWARE INSTALLATION X Pin Assignment System Fan (J9) CPU Fan (J10) Assignment Assignment Power TACH Sense Speed Control User's Manual | RPS101_RPS103...
  • Page 17: Sata Power Connector (Cn4), (Cn5)

    Chapter 2 HARDWARE INSTALLATION SATA Power Connector (CN4), (CN5) LCD Inverter Power (DPJ601) Assignment Assignment Panel Inverter Brightness Voltage Control Panel Power +3.3V Panel Backlight On/Off LCD/Inverter Power LCD/Inverter Power User's Manual | RPS101_RPS103...
  • Page 18: Dio Connector (J6)

    Chapter 2 HARDWARE INSTALLATION DIO Connector (J6) Front Audio (AUJ1) Assignment Assignment Assignment Mic-L Mic-R Line-Out-R Mic-JD (sense) Line-Out-L Line-JD (sense) 5VSB User's Manual | RPS101_RPS103...
  • Page 19: Front Panel (J40)

    Chapter 2 HARDWARE INSTALLATION Front Panel (J40) eSPI Connector (J3) Assignment Assignment Assignment Assignment 3V3SB ESPI_CLK N.C. LED PWR ESPI_RESET# HDD PWR LED PWR ESPI_ALT# UART_TX Signal Signal ESPI_D0 Signal Signal ESPI_D1 ESPI_CS ESPI_D2 UART_RX ESPI_D3 3V3SB User's Manual | RPS101_RPS103...
  • Page 20: Smbus & I2C Header (J37)

    Chapter 2 HARDWARE INSTALLATION SMBUS & I2C Header (J37) OOB SPI Header (J38) Assignment Assignment Assignment EXT_SPI_SW 3V3SB EXT_MOSI EXT_MISO SMB_CLK SMB_DATA EXT_CLK SMB_ALERT I2C_CLK EXT_CS0 I2C_DATA I2C_INT V_3P3_SPI User's Manual | RPS101_RPS103...
  • Page 21: Ddi (J19)

    Chapter 2 HARDWARE INSTALLATION DDI (J19) Assignment Assignment DDI5_TX1N DDI5_TX2N DDI5_TX1P DDI5_TX2P DDI5_TX0P DDI5_TX3N DDI5_TX0N DDI5_TX3P DDI5_AUXP DDI5_AUXN DATA PCH_SYSPWROK Hot Plug Detect DP_PWR User's Manual | RPS101_RPS103...
  • Page 22: Edp (Cn23)

    Chapter 2 HARDWARE INSTALLATION eDP (CN23) Assignment Assignment eDP Panel PWR Interter Power eDP Panel PWR Interter Power eDP Panel PWR Interter Power Interter Power eDP_AUX- eDP_AUX+ Panel Inverter Brightness eDP_Lane 0+ Voltage Control Panel Backlight On/Off eDP_Lane 0- Control eDP_GND eDP_GND eDP_Lane 1+...
  • Page 23: Com1 (J44) , Com2 (J45)

    Chapter 2 HARDWARE INSTALLATION COM1 (J44) , COM2 (J45) COM1 RS422 Full RS232 RS485 Duplex DCD- TXD- Data- COM2 TXD+ Data+ RXD+ DTR- RXD- DSR- RTS- CTS- User's Manual | RPS101_RPS103...
  • Page 24: Usb2_10/11 (Ubj8) , Usb2_5/6 (Ubj7)

    Chapter 2 HARDWARE INSTALLATION OOB I2C Header (SOJ1) USB2_10/11 (UBJ8) , USB2_5/6 (UBJ7) USB2_10/11 USB2_5/6 Assignment Assignment Assignment Data- Data- SIO_SCL Data+ Data+ SIO_SDA ---- User's Manual | RPS101_RPS103...
  • Page 25: Lvds (Dpcn601)

    Chapter 2 HARDWARE INSTALLATION LVDS (DPCN601) Assignment Assignment LVDSA_3+ LVDSB_3+ LVDSA_3- LVDSB_3- LVDSA_2+ LVDSB_2+ LVDSA_2- LVDSB_2- LVDSA_1+ LVDSB_1+ LVDSA_1- LVDSB_1- LVDSA_0+ LVDSB_0+ LVDSA_0- LVDSB_0- LVDSA_CLK+ LVDSB_CLK+ LVDSA_CLK- LVDSB_CLK- DDC_CLK DDC_DATA +3.3V Panel POWER Panel POWER Panel POWER Panel POWER User's Manual | RPS101_RPS103...
  • Page 26: Expansion Slots

    Chapter 2 HARDWARE INSTALLATION X Expansion Slots Top View Bottom View REV.1 ETX2 ETD4 ETD3 M.2-M(R6) UBD6 UBD7 ETU6 ETD18 ETD17 UBD9 UBD8 UBD13 UBD12 UBU1 ETL1 DPQ701 U126 M2CN1 UBSC2 U107 U8007 SOFB1 SOFB2 U8047 SOQ26 SOQ21 M2U41 M2U38 U8005 Q8035 Q9001...
  • Page 27: Installing The M.2 Module

    Chapter 2 HARDWARE INSTALLATION Installing the M.2 Module Before installing the M.2 module into the M.2 socket, please make sure that the following Please follow the steps below to install the card into the socket. safety cautions are well-attended. 1. Make sure the PC and all other peripheral devices connected to it has been powered down.
  • Page 28: Top View

    Chapter 2 HARDWARE INSTALLATION Installing the SO-DIMM Module Top View Before installing the memory module, please make sure that the following safety cautions are well-attended. 1. Make sure the PC and all other peripheral devices connected to it has been powered down.
  • Page 29 Retention Clip Chapter 2 HARDWARE INSTALLATION Socket Top View Please follow the steps below to install the memory card into the socket. Step 1: Insert the memory card into the slot while making sure 1) the notch and the key are aligned, and 2) the non-connec- tor end rises approximately 45 degrees horizontally.
  • Page 30: Chapter 3 - Bios Settings

    Chapter 3 BIOS SETTINGS Chapter 3 - BIOS Settings X Overview Legends The BIOS is a program that takes care of the basic level of communication between the CPU Keys Function and peripherals. It contains codes for various advanced features found in this system board. Right / Left arrow Move the highlight left or right to select a menu The BIOS allows you to configure the system and save the configuration in a battery-backed...
  • Page 31: Main

    Chapter 3 BIOS SETTINGS X Main X Advanced The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
  • Page 32: Cpu Configuration

    Chapter 3 BIOS SETTINGS Advanced Advanced CPU Configuration Power & Performance Intel (VMX) Virtualization Technology When this field is set to Enabled, the VMM can utilize the additional hardware capabilities pro- vided by Vanderpool Technology. Hyper-threading Enables this field for Windows XP and Linux which are optimized for Hyper-Threading technol- ogy.
  • Page 33: Power & Performance ► Cpu- Power Management Control

    Chapter 3 BIOS SETTINGS Advanced Advanced Power & Performance Power & Performance ► CPU- Power Management Control ► GT- Power Management Control RC6 (Render Standby) Turbo Mode Check to enable render standby support. Enable/Disable processor Turbo Mode (requires EMTTM enabled too). AUTO means enabled. C states Enable or disable CPU Power Management.
  • Page 34: Pch-Fw Configuration

    Chapter 3 BIOS SETTINGS Advanced Advanced PCH-FW Configuration Trusted Computing ME State Security Device Support When this field is set to Disabled, ME will be put into ME Temporarily Disabled Mode. This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 Manageability Features State to achieve hardware-level security via cryptographic keys.
  • Page 35: Ptn3460 Configuration

    Chapter 3 BIOS SETTINGS Advanced Advanced PTN3460 Configuration NCT5525D Super IO Configuration PTN3460 Function Enable or Disable PTN3460 LCD Features. When this field is disabled, the following fields will remain hidden. LCD Panel Type Select the resolution of the LCD Panel — 800X480, 800X600, 1024X768, 1366X768, 1280X1024, 1920X1080, or 1920X1200.
  • Page 36: Nct5525D Super Io Configuration ► Serial Port 1, 2 Configuration

    Chapter 3 BIOS SETTINGS Advanced Advanced NCT5525D Super IO Configuration ► Serial Port 1, 2 Configuration NCT5525D HW Monitor This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Smart Fan Function Smart Fan Function Setting.
  • Page 37: Nct5525D Hw Monitor ► Smart Fan Function

    Chapter 3 BIOS SETTINGS Advanced NCT5525D HW Monitor ► Smart FAN Function ▼ CPU/SYS Smart Fan Mode = [Smart Fan] Boundary 1 to Boundary 4 Set the boundary temperatures that determine the fan speeds accordingly, the value rang- ing from 0-127℃. For example, when the system temperature reaches Boundary 1 setting, the fan speed will be turned up to the designated speed of the Fan Speed Count 1 field.
  • Page 38: Serial Port Console Redirection

    Chapter 3 BIOS SETTINGS Advanced Advanced Serial Port Console Redirection Serial Port Console Redirection ► Console Redirection Settings Console Redirection By enabling Console Redirection of a COM port, the sub-menu of console redirection settings will become available for configuration as detailed in the following. User's Manual | RPS101_RPS103...
  • Page 39: Acpi Settings

    Chapter 3 BIOS SETTINGS Advanced ACPI Settings Configure the serial settings of the current COM port. Terminal Type Select terminal type: VT100, VT100+, VT-UTF8 or ANSI. Bits per second Select serial port transmission speed: 9600, 19200, 38400, 57600 or 115200. Data Bits Select data bits: 7 bits or 8 bits.
  • Page 40: Network Stack Configuration

    Chapter 3 BIOS SETTINGS Advanced Network Stack Configuration Network Stack Enable or disable UEFI network stack. The following fields will appear when this field is en- abled. Ipv4 PXE Support Enable or disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be avail- able.
  • Page 41: Nvme Configuration

    Chapter 3 BIOS SETTINGS Advanced Advanced NVMe Configuration DFI WDT Configuration Watchdog Timer Enable or disable Watchdog Timer. User's Manual | RPS101_RPS103...
  • Page 42: Usb Power Control

    Chapter 3 BIOS SETTINGS Advanced Advanced USB Power Control Tls Auth Configuration Server CA Configuration Server CA Configuration Press <Enter> to configure Server CA. 5_Dual: Support system wake up from S3/S4 by USB KB&MS 5V: No support system wake up from S3/S4 by USB KB&MS User's Manual | RPS101_RPS103...
  • Page 43: Chipset

    Chapter 3 BIOS SETTINGS X Chipset Chipset System Agent (SA) Configuration Graphics Configuration Settings about graphic. Please select a submenu and press Enter. The submenus are detailed in the following pages. VMD setup menu VMD Configuration Settings PCI Express Configuration : VT-d VT-d capability.
  • Page 44: Pch-Io Configuration

    Chapter 3 BIOS SETTINGS Chipset Chipset PCH-IO Configuration PCH-IO Configuration ► PCI Express Configuration Select one of the PCI Express channels and press enter to configure the following settings. PCI Express Configuration LAN1, LAN2, LAN3, M.2-E, M.2-B, M.2-M PCI Express Configuration Settings Control the PCI Express Root Port.
  • Page 45: Configuration► Sata Configuration

    Chapter 3 BIOS SETTINGS Chipset Chipset PCH-IO Configuration PCH-IO Configuration ► SATA Configuration ► HD Audio Configuration SATA Controller(s) HD Audio This field is used to enable or disable the Serial ATA controller. Control the detection of the HD Audio device. SATA Speed •...
  • Page 46: Security

    Chapter 3 BIOS SETTINGS X Security Security Secure Boot Secure Boot Administrator Password The Secure Boot store a database of certificates in the firmware and only allows the OSes with Set the administrator password. To clear the password, input nothing and press enter when a authorized signatures to boot on the system.
  • Page 47: Boot

    Chapter 3 BIOS SETTINGS X Boot X Save & Exit Save Changes and Reset Setup Prompt Timeout To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Set the number of seconds to wait for the setup activation key. 65535 (0xFFFF) denotes indefi- Yes to reset the system after saving all changes made.
  • Page 48: Updating The Bios

    Chapter 3 BIOS SETTINGS X Updating the BIOS To update the BIOS, you will need the new BIOS file and a flash utility. Please contact techni- cal support or your sales representative for the files and specific instructions about how to update BIOS with the flash utility.
  • Page 49: Chapter 4 - Raid Settings

    Chapter 4 RAID SETTINGS Chapter 4 - RAID Settings The system board allows configuring RAID on Serial ATA drives. It supports RAID 0, RAID 1, RAID 5 and RAID 10. X RAID Levels X Setup Procedure RAID 0 (Striped Disk Array without Fault Tolerance) To enable the RAID function, the following settings are required.
  • Page 50 Chapter 4 RAID SETTINGS Step 3: Create a RAID Volume 1. Go to the “Advanced” menu of the AMI BIOS and select “Intel(R) Rapid Storage Technology”. 2. The screen displays all available drives. Select “Create RAID volume” to create a RAID volume”.
