Advanced
X

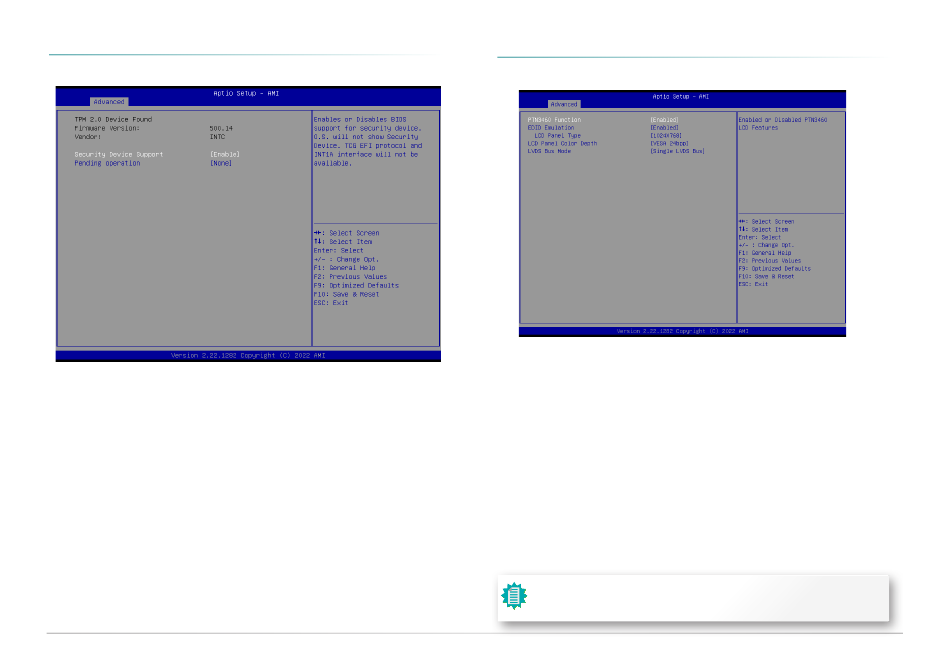

Trusted Computing

Security Device Support
This field is used to enable or disable BIOS support for the security device such as an TPM 2.0
to achieve hardware-level security via cryptographic keys.
Pending operation
To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is
not available when "Security Device Support" is disabled.
User's Manual | CMS100
Advanced
X

PTN3460 Configuration

PTN3460 Function
Enable or Disable PTN3460 LCD Features. When this field is disabled, the following fields will
remain hidden.
LCD Panel Type
Select the resolution of the LCD Panel — 800X480, 800X600, 1024X768, 1366X768,
1280X1024, 1920X1080, or 1920X1200.
LCD Panel Color Depth
Select the color depth of the LCD Panel — VESA 24bpp, JEIDA 24bpp, VESA and JEIDA 18 bpp.
LVDS Bus Mode
Select PTN3460 LVDS BUS Mode : Single LVDS Bus /Dual LVDS Bus
Note:
The configuration must match the specifications of your LCD Panel in order for
the LCD Panel to display properly.
