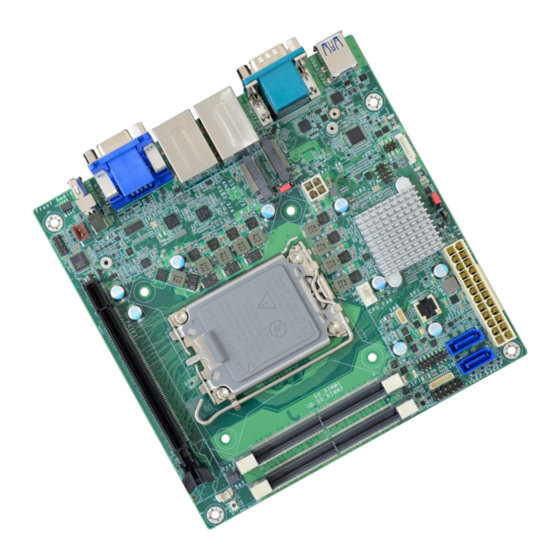

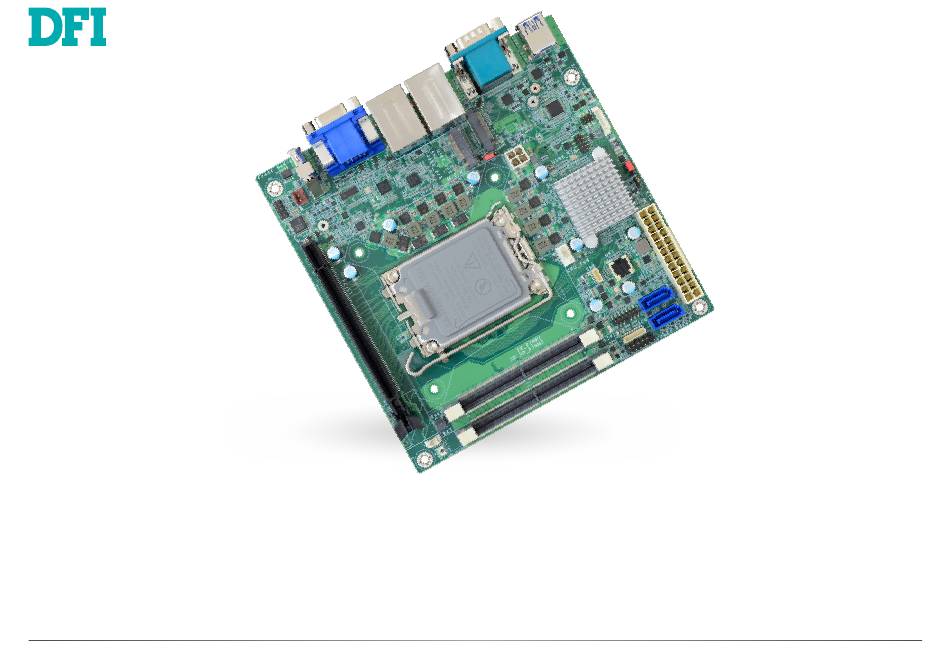

- Page 1 RPS100 Mini-ITX Industrial Motherboard User’s Manual © July 30, 2024 DFI Inc.
- Page 2 1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | RPS100...
-
Page 3: Table Of Contents
NCT5525D HW Monitor ....................31 NCT5525D HW Monitor ► Smart FAN Function ..........32 Serial Port Console Redirection ...................32 ► Console Redirection Settings ......33 Serial Port Console Redirection ACPI Settings .........................34 Network Stack Configuration..................35 DFI WDT Configuration ....................36 User's Manual | RPS100... - Page 4 • To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | RPS100...
- Page 5 The board and accessories in the package may not come similar to the information listed above. This may differ in accordance with the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales repre- sentative. User's Manual | RPS100...
-
Page 6: Chapter 1 - Introduction
G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W ® ® Chipset Intel R680E/Q670E/H610E Chipset ® Memory 2x 262-pin SODIMM up to 64GB Dual Channel DDR5 4800MHz ECC memory supported by R680 with i7 and i5 BIOS AMI SPI 256Mbit User's Manual | RPS100... - Page 7 1 x PCIe Gen 5 x16 (Bifircation 1 x16, 2 x8) 1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel® CNVi) 1 x M.2 3060 A Key support DFI M2A-display module (opt. MOQ required) R680E/Q670E: 1 x M.2 2280 M Key (PCIE Gen 3x4 or SATA3) H610E: 1 x M.2 2280 M Key (PCIE Gen 3x1 or SATA3)
- Page 8 Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF MECHANISM Dimensions Mini-ITX Form Factor: 170mm (6.7") x 170mm (6.7") Height PCB: 1.6mm Top Side: TBD STANDARDS AND Certifications CE, FCC, RoHS CERTIFICATIONS User's Manual | RPS100...
-
Page 9: Block Diagram
Chapter 1 INTRODUCTION X Block Diagram X Dimension User's Manual | RPS100... -
Page 10: Chapter 2 - Hardware Installation
Chapter 2 HARDWARE INSTALLATION Chapter 2 - Hardware Installation X Board Layout Top View Bottom View 1 2 3 26 27 M.2 E Key User's Manual | RPS100... - Page 11 USB 3.2 Gen2 Q670E: USB 3.2 Gen1 M2A-edp LCD Backlight PCIE x16 M2A-edp Dimming Power RTC Battery ATX Power Clear CMOS Buzzer SO-DIMM1 SO-DIMM2 M2CN3 M2-Mkey Power Select +12V Power CPU Fan SMBus Header ESPI Header User's Manual | RPS100...
-
Page 12: Installing The Heat Sink
4 mounting holes around the board. 3. Screw tight two of the spring screws at opposite corners into the mounting holes. And then proceed with the other two spring screws. Mounting holes User's Manual | RPS100... -
Page 13: Jumper Settings
Chapter 2 HARDWARE INSTALLATION X Jumper Settings M2A-edp LCD Backlight (DPJP2) AT/ATX Mode Select (JP26) „ 1-2 On: AT Mode (Default) „ 2-3 On: ATX Mode „ 1-2 On: 3V3 (Default) „ 2-3 On: 5V User's Manual | RPS100... -
Page 14: M2A-Edp Dimming Power (Dpjp4)
Chapter 2 HARDWARE INSTALLATION M2A-edp LCD Power (DPJP3) M2A-edp Dimming Power (DPJP4) „ 1-2 On: 12V „ 3-4 On: 5V „ 5-6 On: 3V3 (Default) „ 1-2 On: 3V3 (Default) „ 2-3 On: 5V User's Manual | RPS100... -
Page 15: M2Cn3 M2-Mkey Power Select (Jp32)
Chapter 2 HARDWARE INSTALLATION M2CN3 M2-Mkey Power Select (JP32) „ 1-2 On: 3V3 (Default) „ 2-3 On: 3V3DU User's Manual | RPS100... -
Page 16: Pin Assignment
Chapter 2 HARDWARE INSTALLATION X Pin Assignment CPU Fan1 (J8) System Fan1 (J7) Assignment Assignment +12V TACH CTRL User's Manual | RPS100... -
Page 17: Front Panel (J18)
Chapter 2 HARDWARE INSTALLATION SATA1 (J32) Front Panel (J18) Assignment Assignment Assignment V_SUS_LED V_SUS_LED HD_LED# SUS_LED# SYS_RST PWR_BTN User's Manual | RPS100... -
Page 18: Sata2 (J17)
Chapter 2 HARDWARE INSTALLATION DIO (SOJ2) SATA2 (J17) Assignment Assignment User's Manual | RPS100... -
Page 19: Smbus Header (J12)
Chapter 2 HARDWARE INSTALLATION M2A-edp/lvds Inverter Power (DPJ1) SMBus Header (J12) Assignment Assignment Assignment DIMMING 3V3DU VCC_PANEL_PWR SMB_CLK_RESUME SMB_DATA_RESUME LVDS_3V3 SMBALERT_PCH- BLONOFF INVTER_PWR INVTER_PWR User's Manual | RPS100... -
Page 20: Front Audio (Auj2)
Chapter 2 HARDWARE INSTALLATION USB2_P7/8 (UBJ2) Front Audio (AUJ2) Assignment Assignment Assignment Assignment 5VSB 5VSB MIC2-L AUD_GND USBP_C_7N USBP_C_8N MIC2-R LINE2-R MIC2-JD USBP_C_7P USBP_C_8P AUD_GND LINE2-L LINE2-JD User's Manual | RPS100... -
Page 21: Espi Header (J35)
Chapter 2 HARDWARE INSTALLATION COM1/COM2 ESPI Header (J35) RS422 Full RS232 RS485 Duplex Assignment Assignment DCD- TXD- Data- 3V3SB ESPI_CLK TXD+ Data+ RXD+ ESPI_RESET# DTR- RXD- ESPI_ALT# ESPI_D0 DSR- RTS- ESPI_D1 ESPI_CS CTS- ESPI_D2 3V3SB ESPI_D3 3V3SB User's Manual | RPS100... -
Page 22: System Memory
DIMMs. Not all slots need to be populated. Dual Channel (DC) Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate. User's Manual | RPS100... -
Page 23: Expansion Slots
4. Make sure the notch on card is aligned to the key on the socket. 5. Make sure the standoff screw is removed from the standoff. M.2 Module M.2 Socket Stand-off Notch M.2 M-Key M.2 A-Key User's Manual | RPS100... - Page 24 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. User's Manual | RPS100...
-
Page 25: Chapter 3 - Bios Settings
“Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. User's Manual | RPS100... -
Page 26: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | RPS100... -
Page 27: Cpu Configuration
Enables this field for Windows XP and Linux which are optimized for Hyper-Threading technol- ogy. Select disabled for other OSes not optimized for Hyper-Threading technology. When dis- abled, only one thread per enabled core is enabled. Enable / Disable AES (Advanced Encryption Standard) User's Manual | RPS100... -
Page 28: Power & Performance ► Cpu- Power Management Control
Enable or disable turbo mode of the processor. This field will only be displayed when EIST is enabled. Configure Turbo Options Configure Turbo Options C states Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. User's Manual | RPS100... -
Page 29: Pch-Fw Configuration
MEBx Setup. This option does not disable manageability features in FW. ME Unconfig on RTC Clear When disabled, ME will not be unconfigured on RTC Clear. Firmware Update Configuration Configure Management Engine Technology Parameters. Note: The sub-menus are detailed in following sections. User's Manual | RPS100... -
Page 30: Trusted Computing
This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. Pending operation To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. User's Manual | RPS100... -
Page 31: Nct5525D Super Io Configuration ► Serial Port 1, 2 Configuration
This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Smart Fan Function Smart Fan Function Setting. Serial Port Enable or disable serial port. Electrical Interface Mode Select an optimal settings for Super IO Device. User's Manual | RPS100... -
Page 32: Nct5525D Hw Monitor ► Smart Fan Function
▼ CPU/SYS Smart Fan Mode = [Manual Mode] Fix Fan Speed Count Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will al- ways operate at the specified speed regardless of gauged temperatures. User's Manual | RPS100... -
Page 33: Serial Port Console Redirection ► Console Redirection Settings
Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals. Recorder Mode With this mode enbaled only text will be sent. This is to capture Terminal data. Resolution 100x31 Enables or disables extended terminal resolution Putty KeyPad Select FunctionKey and KeyPad on Putty. User's Manual | RPS100... -
Page 34: Acpi Settings
(G3 state). • S0 State The system automatically powers on after power failure. • S5 State The system enter soft-off state after power failure. Power-on signal input is required to power up the system. User's Manual | RPS100... -
Page 35: Network Stack Configuration
Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or nu- meric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | RPS100... -
Page 36: Usb Power Control
USB Power Control DFI WDT Configuration Server CA Configuration Watchdog Timer 5_Dual: Support system wake up from S3/S4 by USB KB&MS Enable or disable Watchdog Timer. 5V: No support system wake up from S3/S4 by USB KB&MS User's Manual | RPS100... -
Page 37: Tls Auth Configuration
Chapter 3 BIOS SETTINGS Advanced Tls Auth Configuration Server CA Configuration Press <Enter> to configure Server CA. User's Manual | RPS100... -
Page 38: Chipset
System Agent (SA) Configuration Please select a submenu and press Enter. The submenus are detailed in the following pages. Graphics Configuration Graphics Configuration VMD setup menu VMD Configuration Settings PCI Express Configuration : VT-d VT-d capability. User's Manual | RPS100... -
Page 39: Pch-Io Configuration
Select one of the PCI Express channels and press enter to configure the following settings. PCI Express Configuration Settings LAN1, LAN2, M.2-A, M.2-E, M.2-M SATA Configuration Control the PCI Express Root Port. SATA Device Otpions Settings HD Audio Configuration HD Audio Subsystem Configuration Settings User's Manual | RPS100... -
Page 40: Configuration► Sata Configuration
This field is used to select SATA speed generation limit: Auto, Gen1, Gen2 or Gen3. Ports and Hot Plug • Enabled HDA will be unconditionally enabled. Enable or disable the Serial ATA port and its hot plug function. User's Manual | RPS100... -
Page 41: Security
Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. Key Management Enables expert users to modify Secure Boot Policy variables without full authentication. User's Manual | RPS100... -
Page 42: Boot
Select this option to save BIOS configuration settings to a USB flash device. • Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set-ting from the USB flash device. User's Manual | RPS100... -
Page 43: Mebx
MAC address should be burned or not. c. After updating unique MAC Address from manufacturing, NVM will be protected immediately after power cycle. Users cannot update NVM or MAC address. User's Manual | RPS100... -
Page 44: Chapter 4 - Raid Settings
M.2 PCIe SSD cannot be used to set up a RAID set either with an M.2 SATA SSD and monitor service allow you to monitor the current status of the RAID volume and/or SATA or a SATA hard drive. drives. It enables enhanced performance and power management for the storage subsystem. User's Manual | RPS100... -
Page 45: How To Enable Intel(R) Rapid Storage Technology In Bios
X How to enable Intel(R) Rapid Storage Technology in BIOS System Agent (SA) Configuration ► VMD Setup Menu Enable VMD Controller for more options. Save the changes and exit. Locate Intel(R) Rapid Storage Technology option on Advanced menu. User's Manual | RPS100...
