Lvds (Dpcn601) - DFI RPS101 User Manual

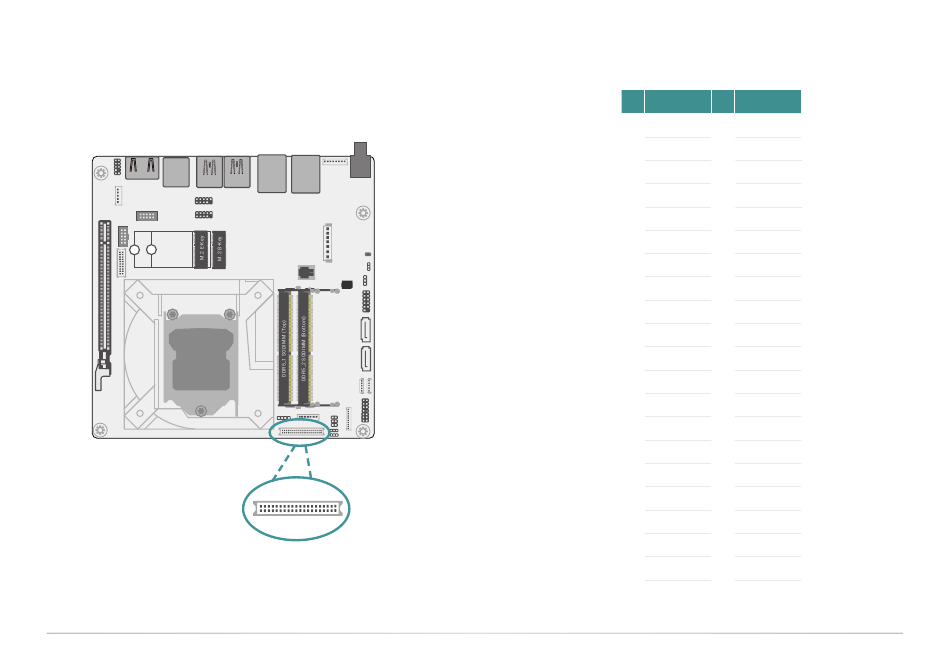

LVDS (DPCN601)

1 2
9 10
2 10
1
1
2 10
2 10
1 9
1
10 9
2 1
19 20
1
2
User's Manual | RPS101_RPS103
1
1
1
1
1 2
11
1
1
1 1
1 2
1
1
1
2
1
14
5 6
10
1
39 1
2
40
1
1
39
2
40
HARDWARE INSTALLATION
Pin Assignment Pin Assignment
1 2
GND GND
3 LVDSA_3+ 4 LVDSB_3+
5 LVDSA_3- 6 LVDSB_3-
7 8
GND GND
9 LVDSA_2+ 10 LVDSB_2+
11 LVDSA_2- 12 LVDSB_2-
13 14
GND GND
15 LVDSA_1+ 16 LVDSB_1+
17 LVDSA_1- 18 LVDSB_1-
19 GND 20 GND
21 LVDSA_0+ 22 LVDSB_0+
23 LVDSA_0- 24 LVDSB_0-
25 GND 26 GND
27 LVDSA_CLK+ 28 LVDSB_CLK+
29 LVDSA_CLK- 30 LVDSB_CLK-
31 GND 32 GND
33 DDC_CLK 34 NC
35 DDC_DATA 36 +3.3V
37 Panel POWER 38 Panel POWER
39 40
Panel POWER Panel POWER
Chapter 2
25
