Summary of Contents for DFI RPS631-H610

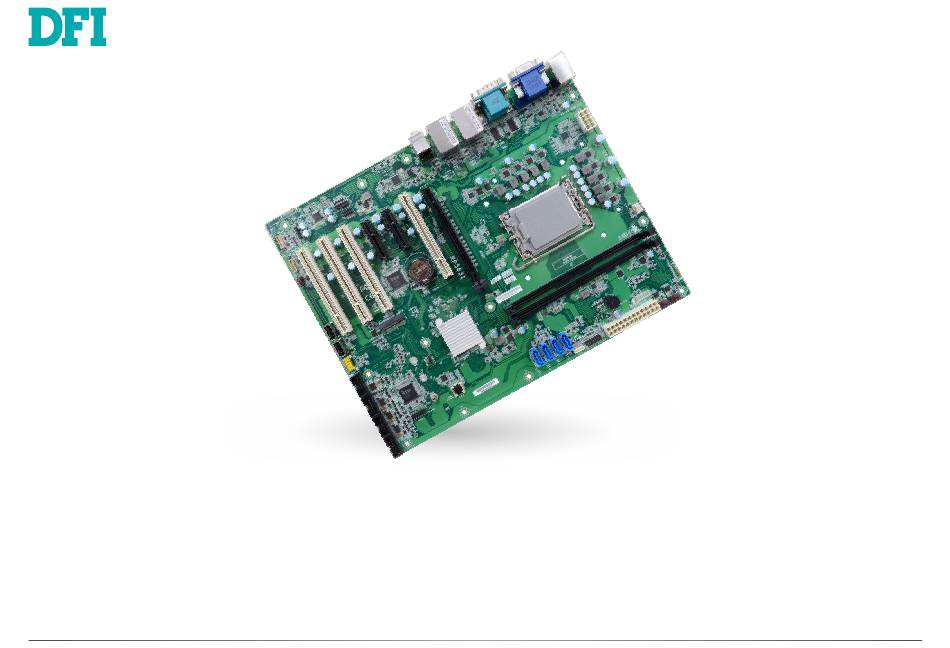

  • Page 1 RPS631-H610 ATX Industrial Motherboard User’s Manual © February 26, 2025 DFI Inc.
  • Page 2: Fcc And Doc Statement On Class B

    1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | RPS631-H610...
  • Page 3: Table Of Contents

    ► Serial Port 1, 2 Configuration ......34 IT8786 Super IO Configuration ► Serial Port 3, 4 Configuration ......34 IT8786 Super IO Configuration ► Serial Port 5, 6 Configuration ......35 IT8786 HW Monitor .......................35 User's Manual | RPS631-H610...
  • Page 4: About This Manual

    • To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | RPS631-H610...
  • Page 5: About The Package

    The board and accessories in the package may not come similar to the information listed above. This may differ in accordance with the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales repre- sentative. User's Manual | RPS631-H610...
  • Page 6: Chapter 1 - Introduction

    Intel Pentium G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W ® ® Intel Celeron G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W ® ® Intel Celeron G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W ® ® User's Manual | RPS631-H610...
  • Page 7 2 x USB 2.0 (2.54mm pitch, colay vertical Type A, opt.: MOQ required) Audio 1 x Front Audio 1 x S/PDIF SATA 4 x SATA 3.0 (up to 6Gb/s) 1 x 4-IN / 8-OUT DIO eSPI 1 x eSPI SMBus 1 x SMBus User's Manual | RPS631-H610...
  • Page 8 Storage: 5 to 95% RH MTBF MECHANISM Dimensions ATX Form Factor: 305mm (12") x 244mm (9.6") Height PCB: 1.6mm Top Side: 33.3mm Bottom Side: 4mm STANDARDS AND Certifications CE, FCC Class B, UKCA, RoHS, KC CERTIFICATIONS User's Manual | RPS631-H610...
  • Page 9: Block Diagram

    Chapter 1 INTRODUCTION X Block Diagram X Dimension User's Manual | RPS631-H610...
  • Page 10: Chapter 2 - Hardware Installation

    M.2 M Key M.2 M Key SATA3 LAN LED SATA2 PCI4 SATA1 PCI3 SMBus PCI2 Front Panel PCIE3 ATX Power PCIE2 Buzzer PCI1 System Fan2 PCIE1 System Fan3 CLKREQ/PRSNT Select CPU Fan ▲Line-out 12V Power ▼Mic-in User's Manual | RPS631-H610...
  • Page 11: Installing The Heat Sink

    3. Screw tight two of the spring screws at opposite corners into the mounting holes. And then proceed with the other two spring screws. Battery Clear CMOS M.2 M Key Mounting holes User's Manual | RPS631-H610...
  • Page 12: Jumper Settings

    Chapter 2 HARDWARE INSTALLATION X Jumper Settings CLKREQ/PRSNT Select (CLKREQ_SEL1) Battery Clear CMOS M.2 M Key „ 2-3 On: PRSNT(default) „ 1-2 On: CLKREQ User's Manual | RPS631-H610...
  • Page 13: Pin Assignment

    Chapter 2 HARDWARE INSTALLATION X Pin Assignment Case Open (C_INTRUSION1) System Fan1 (SYS_FAN1) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment Case Open- TACH User's Manual | RPS631-H610...
  • Page 14: System Fan2 (Sys_Fan2)

    Chapter 2 HARDWARE INSTALLATION System Fan2 (SYS_FAN2) System Fan3 (SYS_FAN3) Battery Battery Clear CMOS M.2 M Key Clear CMOS M.2 M Key Assignment Assignment TACH TACH User's Manual | RPS631-H610...
  • Page 15: Cpu Fan (Cpu_Fan1)

    Chapter 2 HARDWARE INSTALLATION S/PDIF (SPDIF_HEADER1) CPU Fan (CPU_FAN1) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment SPDIF OUT CTRL SPDIF IN User's Manual | RPS631-H610...
  • Page 16: Dio_Connector1 (J1)

    Chapter 2 HARDWARE INSTALLATION DIO_Connector2 (J2) DIO_Connector1 (J1) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment DI_3 DI_2 DI_1 DI_0 DO_7 DO_3 DO_6 DO_2 DO_5 DO_1 DO_4 DO_0 User's Manual | RPS631-H610...
  • Page 17: Smbus (Smbus1) Lan Led Header (Jp2)

    Assignment Assignment Assignment Assignment 3.3V Standby LAN2 SPEED 2.5G LAN2 SPEED 1G SMB CLOCK SMB DATA LAN2 ACTIVE 3.3V_LAN2 SMB ALERT_L I2C CLOCK LAN1 SPEED 1G LAN1 SPEED 100M I2C DATA I2C INT LAN1 ACTIVE 3.3V_LAN1 User's Manual | RPS631-H610...
  • Page 18: Com3 (Com3) Com4 (Com4)

    COM4 (COM4) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment Assignment Assignment MDCD- MSIN- MDCD- MSIN- MSO- MDTR- MSO- MDTR- MDSR- MDSR- MRTS- MCTS- MRTS- MCTS- MRI-/5V/12V ---- MRI-/5V/12V ---- User's Manual | RPS631-H610...
  • Page 19: Com5 (Com5) Com6 (Com6)

    COM5 (COM5) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment Assignment Assignment MSIN- MSIN- MDCD- MDCD- MSO- MDTR- MSO- MDTR- MDSR- MDSR- MRTS- MCTS- MRTS- MCTS- MRI-/5V/12V ---- MRI-/5V/12V ---- User's Manual | RPS631-H610...
  • Page 20: Front Panel (F_Panel1)

    Front Audio (F_AUDIO1) Front Panel (F_PANEL1) Battery Battery Clear CMOS M.2 M Key Clear CMOS M.2 M Key Assignment Assignment Assignment Assignment V_SUS_LED MIC2_L A_GND V_SUS_LED MIC2_R HP_MIC_COMBO HDD_LED SUS_LED LINE2_R MIC2_JD A_GND SYS_RST- PWR_BTN- LINE2_L LINE2_JD User's Manual | RPS631-H610...
  • Page 21: Espi (Espi_Debug1)

    USB2_3/4 (JP12) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment Assignment Assignment USB_VCC 3V3SB ESPI_CLK USB_VCC USB_N3 USB_N4 ESPI_RESET# USB_P3 USB_P4 ESPI_ALT# UART_TX ESPI_D0 ESPI_D1 ESPI_CS ---- ESPI_D2 UART_RX ESPI_D3 3V3SB User's Manual | RPS631-H610...
  • Page 22: Sata1 (Sata0-R7)

    Chapter 2 HARDWARE INSTALLATION SATA1 (SATA0-R7) SATA2 (SATA1-R6) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment User's Manual | RPS631-H610...
  • Page 23: Sata3 (Sata2-R5)

    Chapter 2 HARDWARE INSTALLATION SATA3 (SATA2-R5) SATA4 (SATA3-R4) Battery Battery Clear CMOS Clear CMOS M.2 M Key M.2 M Key Assignment Assignment User's Manual | RPS631-H610...
  • Page 24: Com1/Com2

    Chapter 2 HARDWARE INSTALLATION COM1/COM2 Battery Clear CMOS M.2 M Key Assignment Assignment MDCD1-/RS422_RX+ / MSIN1-/RS422_RX- / RS485_D- RS485_D+ MSO1 RS422_TX MDTR1-/RS422_TX- MDSR1- MRTS- MCTS1- MRI- ---- User's Manual | RPS631-H610...
  • Page 25: System Memory

    DIMMs. Not all slots need to be populated. Dual Channel (DC) Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate. User's Manual | RPS631-H610...
  • Page 26: Expansion Slots

    4. Make sure the notch on card is aligned to the key on the socket. Clear CMOS 5. Make sure the standoff screw is removed from the standoff. M.2 M Key M.2 Module M.2 Socket Stand-off Notch M.2 M-Key User's Manual | RPS631-H610...
  • Page 27 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. User's Manual | RPS631-H610...
  • Page 28: Chapter 3 - Bios Settings

    “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. User's Manual | RPS631-H610...
  • Page 29: Main

    The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | RPS631-H610...
  • Page 30: Cpu Configuration

    Enables this field for Windows XP and Linux which are optimized for Hyper-Threading technol- ogy. Select disabled for other OSes not optimized for Hyper-Threading technology. When dis- abled, only one thread per enabled core is enabled. Enable / Disable AES (Advanced Encryption Standard) User's Manual | RPS631-H610...
  • Page 31: Power & Performance ► Cpu- Power Management Control

    Enable or disable turbo mode of the processor. This field will only be displayed when EIST is enabled. Configure Turbo Options Configure Turbo Options C states Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. User's Manual | RPS631-H610...
  • Page 32: Pch-Fw Configuration

    Features support in FW. To disable, support platform must be in an unprovisioned state first. ME Unconfig on RTC Clear When disabled, ME will not be unconfigured on RTC Clear. Firmware Update Configuration Configure Management Engine Technology Parameters. Note: The sub-menus are detailed in following sections. User's Manual | RPS631-H610...
  • Page 33: Trusted Computing

    This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. Pending Operation To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled.. User's Manual | RPS631-H610...
  • Page 34: It8786 Super Io Configuration ► Serial Port 1, 2 Configuration

    ► Serial Port 3, 4 Configuration Serial Port Serial Port Enable or disable serial port. Enable or disable serial port. Electrical Interface Mode COM3, 4 Power Control Select an optimal settings for Super IO Device. Select Power type. User's Manual | RPS631-H610...
  • Page 35: It8786 Super Io Configuration ► Serial Port 5, 6 Configuration

    Smart Fan Function Setting. Case Open Enable or disable the case open detection function. DDR5 HW Monitor Serial Port HW Monitor information of DDR5 DIMM. Enable or disable serial port. COM5, 6 Power Control Select Power type. User's Manual | RPS631-H610...
  • Page 36: It8786 Hw Monitor Serial Port Console Redirection

    IT8786 HW Monitor ► DDR5 HW Monitor Serial Port Console Redirection Console Redirection By enabling Console Redirection of a COM port, the sub-menu of console redirection settings will become available for configuration as detailed in the following. User's Manual | RPS631-H610...
  • Page 37: Serial Port Console Redirection ► Console Redirection Settings

    Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals. Recorder Mode With this mode enbaled only text will be sent. This is to capture Terminal data. Resolution 100x31 Enables or disables extended terminal resolution Putty KeyPad Select FunctionKey and KeyPad on Putty. User's Manual | RPS631-H610...
  • Page 38: Acpi Settings

    • S5 State The system enter soft-off state after power failure. Power-on signal input is • Device power-up delay in seconds Delay range is 1..40 seconds, in one second increments. required to power up the system. User's Manual | RPS631-H610...
  • Page 39: Network Stack Configuration

    Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or nu- meric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | RPS631-H610...
  • Page 40: Nvme Configuration

    Chapter 3 BIOS SETTINGS Advanced Advanced NVMe Configuration DFI WDT Configuration Watchdog Timer Enable or disable Watchdog Timer. User's Manual | RPS631-H610...
  • Page 41: Usb Power Control

    USB Power Control Server CA Configuration Press <Enter> to configure Server CA. Server CA Configuration 5_Dual: Support system wake up from S3/S4 by USB KB&MS 5V: No support system wake up from S3/S4 by USB KB&MS User's Manual | RPS631-H610...
  • Page 42: Chipset

    System Agent (SA) Configuration Please select a submenu and press Enter. The submenus are detailed in the following pages. Graphics Configuration Graphics Configuration VMD setup menu VMD Configuration Settings PCI Express Configuration : VT-d VT-d capability. User's Manual | RPS631-H610...
  • Page 43: Pch-Io Configuration

    PCI Express Configuration Settings PCIEx4 slot_1, PCIEx4 slot_2, M.2-M SSD, PCI Bridge, LAN1 I226, LAN2 I219 SATA Configuration Control the PCI Express Root Port. SATA Device Otpions Settings HD Audio Configuration HD Audio Subsystem Configuration Settings User's Manual | RPS631-H610...
  • Page 44: Configuration► Sata Configuration

    This field is used to select SATA speed generation limit: Auto, Gen1, Gen2 or Gen3. Ports and Hot Plug • Enabled HDA will be unconditionally enabled. Enable or disable the Serial ATA port and its hot plug function. User's Manual | RPS631-H610...
  • Page 45: Security

    Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. Key Management Enables expert users to modify Secure Boot Policy variables without full authentication. User's Manual | RPS631-H610...
  • Page 46: Boot

    Select this option to save BIOS configuration settings to a USB flash device. • Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set-ting from the USB flash device. User's Manual | RPS631-H610...
  • Page 47: Updating The Bios

    MAC address should be burned or not. c. After updating unique MAC Address from manufacturing, NVM will be protected immediately after power cycle. Users cannot update NVM or MAC address. User's Manual | RPS631-H610...
