Top View

1 2
9 10
2 10
1
1
2 10
2 10
9
1
1
10 9
2 1
20
19
1 2
DDR5-1 SODIMM
DDR5-2 SODIMM
User's Manual | RPS101_RPS103
1
1
1
1
1 2
1 2
11
1
1
1 1
1 2
1
1
1 2
1
14
5 6
10
1
1
39
2
40
1

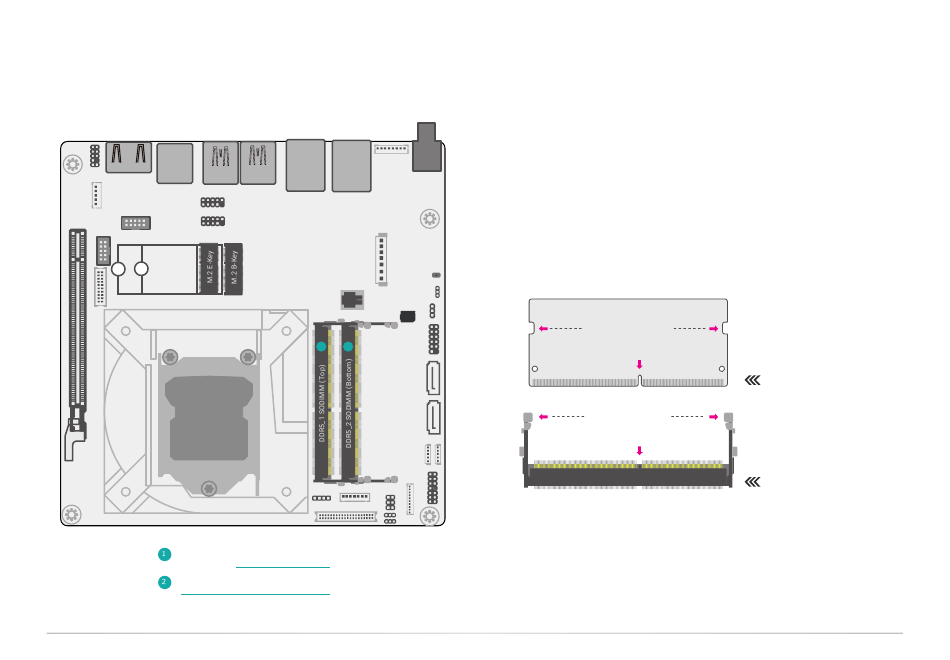

Installing the SO-DIMM Module

Before installing the memory module, please make sure that the following safety cautions are
well-attended.
1. Make sure the PC and all other peripheral devices connected to it has been powered
down.
2. Disconnect all power cords and cables.
3. Locate the SO-DIMM socket on the system board
4. Make sure the notch on memory card is aligned to the key on the socket.
Retention Notch
Notch
Retention Clip
Key
4 5 °
Chapter 2
HARDWARE INSTALLATION
DDR5 SO-DIMM
Socket Top View
28
