DFI RAP310 User Manual

Microatx industrial motherboard
Table of Contents

Advertisement

Quick Links

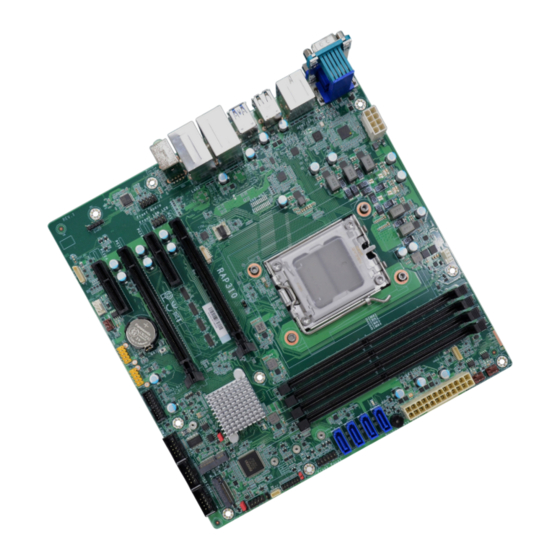

RAP310
microATX Industrial Motherboard
User's Manual
© December 18, 2024 DFI Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAP310 and is the answer not in the manual?

Questions and answers

Summary of Contents for DFI RAP310

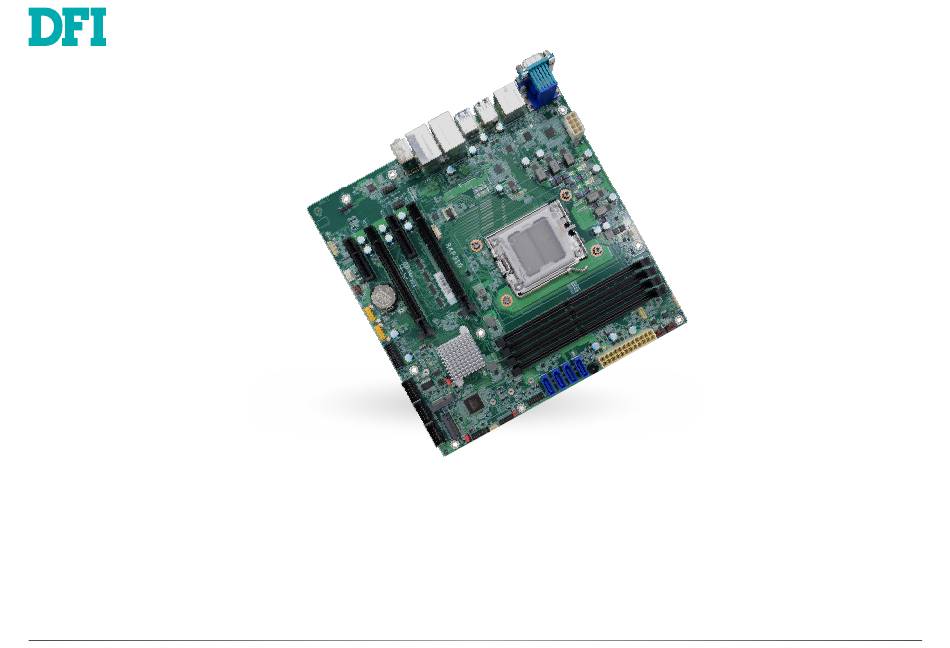

  • Page 1 RAP310 microATX Industrial Motherboard User’s Manual © December 18, 2024 DFI Inc.
  • Page 2: Fcc And Doc Statement On Class B

    1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | RAP310...
  • Page 3: Table Of Contents

    NCT6126D HW Monitor ► Smart FAN Function ► CPU FAN Setting ....34 NCT6126D HW Monitor ► Smart FAN Function ► SYS_FAN1 Setting ....34 NCT6126D HW Monitor ► Smart FAN Function ► SYS_FAN 2 Setting ....34 User's Manual | RAP310...
  • Page 4: About This Manual

    • To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | RAP310...
  • Page 5: About The Package

    The board and accessories in the package may not come similar to the information listed above. This may differ in accordance with the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales repre- sentative. User's Manual | RAP310...
  • Page 6: Chapter 1 - Introduction

    1 x RS-232 6 x USB 3.2 Gen 2 2 x USB 2.0 Display 1 x DP++ 1 x HDMI 1 x VGA Audio 1 x Line-out 1 x Mic-in 1 x Line-in (opt. by request, MOQ required) User's Manual | RAP310...
  • Page 7 Operating: 5 to 95% RH Storage: 5 to 95% RH MTBF MECHANISM Dimensions microATX Form Factor: 244mm (9.6") x 244mm (9.6") Height PCB: 1.6mm Top Side: TBD Bottom Side: TBD STANDARDS AND Certifications CE, FCC Class B, RoHS CERTIFICATIONS User's Manual | RAP310...
  • Page 8: Block Diagram

    Chapter 1 INTRODUCTION X Block Diagram X Dimension User's Manual | RAP310...
  • Page 9: Chapter 2 - Hardware Installation

    M.2 M Power Select ▲MIC-In ▼Line-Out ▼Line-In Case Open ▲LAN2 ▼USB2_4/5 ▼USB3_4/5 OOB I2C ▲LAN1 ▼USB2_2/3 ESPI Header ▼USB3_2/3 USB3.2 Gen2 AT/ATX Mode Select M.2 E-Key USB2.0 Front Panel ▲DP++ SATA3 ▼HDMI ▲COM1 SATA2 42 43 ▼VGA PCIE4 SATA1 User's Manual | RAP310...
  • Page 10: Jumper Settings

    X Jumper Settings AT/ATX Mode Select (JP2) M.2 M Power Select (JP3) Battery Battery M.2 E-Key M.2 E-Key „ 1-2 On: AT mode (default) „ 2-3 On: ATX mode „ 1-2 On: 3.3V_RUN (default) „ 2-3 On: 3.3V_ALW User's Manual | RAP310...
  • Page 11: E Power Select (Jp4)

    Chapter 2 HARDWARE INSTALLATION M.2 E Power Select (JP4) Battery M.2 E-Key „ 1-2 On: 3.3V_RUN (default) „ 2-3 On: 3.3V_ALW User's Manual | RAP310...
  • Page 12: Pin Assignment

    Chapter 2 HARDWARE INSTALLATION X Pin Assignment System Fan1 (J11) System Fan2 (J12) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment TACH TACH User's Manual | RAP310...
  • Page 13: System Fan3 (J13)

    Chapter 2 HARDWARE INSTALLATION System Fan3 (J13) Case Open (SOJ1) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment Case Open# TACH User's Manual | RAP310...
  • Page 14: Cpu Fan (J9)

    Chapter 2 HARDWARE INSTALLATION CPU Fan (J9) S/PDIF (AUJ1) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment SPOUT CTRL SPIN User's Manual | RAP310...
  • Page 15: Sata0 (J3) Sata1 (J4)

    Chapter 2 HARDWARE INSTALLATION SATA1 (J4) SATA0 (J3) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment User's Manual | RAP310...
  • Page 16: Sata2 (J5)

    Chapter 2 HARDWARE INSTALLATION SATA3 (J6) SATA2 (J5) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment User's Manual | RAP310...
  • Page 17: Oob Spirom Update (J1)

    Chapter 2 HARDWARE INSTALLATION SMBus Header (J37) OOB SPIROM Update (J1) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment Assignment GPI_SPI_SW 3.3V_ALW SPI_SO-R SMB_CLK SMB_DATA SPI_SI-R SMB_INT I2C_CLK SPI_CLK-R I2C_SDA I2C_INT SPI_CS0- 1.8V_ALW User's Manual | RAP310...
  • Page 18: Oob I2C Header (J7)

    Chapter 2 HARDWARE INSTALLATION Front Audio (AUJ2) OOB I2C Header (J7) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment Assignment MIC2_L MIC2_R SIO_SCL LINE2_R MIC2_JD SIO_SDA LINE2_L LINE2_JD User's Manual | RAP310...
  • Page 19: Com1 (Dpcn3)

    COM2 (TSJ1) COM1 (DPCN3) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment Assignment Assignment MDCD-/RS422_RX+ MSIN-/RS422_RX- / MDCD- MSIN- / RS485_D+ RS485_D- MDTR-/RS422_TX- MSO- MDTR- RS422_TX MDSR- MDSR- MRTS- MCTS- MRTS- MCTS MRI- ---- MRI- ---- User's Manual | RAP310...
  • Page 20: Com3 (Tsj2) Com4 (Tsj3)

    Chapter 2 HARDWARE INSTALLATION COM3 (TSJ2) COM4 (TSJ3) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment Assignment Assignment MSIN- MDCD- MSIN- MDCD- MSO- MDTR- MSO- MDTR- MDSR- MDSR- MRTS- MCTS- MRTS- MCTS- MRI- ---- MRI- ---- User's Manual | RAP310...
  • Page 21: Dio (J15)

    Chapter 2 HARDWARE INSTALLATION DIO (J15) USB2_12/13 (UBJ2) Battery Battery M.2 E-Key M.2 E-Key Assignment DI_3 DI_2 Assignment Assignment DI_1 SBV6 SBV6 DI_0 DO_3 USBP_C_3N USBP_C_6N DO_2 USBP_C_3P USBP_C_6P DO_1 DO_0 ---- +5V_ALW User's Manual | RAP310...
  • Page 22: Usb2_10/11 (Ubj3)

    Chapter 2 HARDWARE INSTALLATION USB2_10/11 (UBJ3) PS2 Header (SOJ3) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment Assignment Assignment SBV6 PS2_KCLK PS2_MCLK SBV6 PS2_KDAT PS2_MDAT USBP_C_7N USBP_C_10N USBP_C_7P USBP_C_10P ---- BVCC BVCC ---- User's Manual | RAP310...
  • Page 23: Front Panel (J8) Espi Header (J14)

    HARDWARE INSTALLATION Front Panel (J8) eSPI Header (J14) Battery Battery M.2 E-Key M.2 E-Key Assignment Assignment Assignment Assignment 3V3SB ESPI_CLK 3V3SB ESPI_RESET# 3V3_RUN 3V3SB ESPI_ALT# UART_TX HDD_LED SUS_LED ESPI_D0 ESPI_D1 ESPI_CS SYS_RST- PWR_BTN- ESPI_D2 UART_RX ESPI_D3 3V3SB User's Manual | RAP310...
  • Page 24: Usb3_6/7 , Usb2_6/7 (Ubj1)

    Chapter 2 HARDWARE INSTALLATION USB3_6/7 , USB2_6/7 (UBJ1) Assignment Assignment SBV3 USBP_C_9P USB3_RX5_DN USBP_C_9N USB3_RX5_DP Battery USB3_TX4_DP USB3_TX5_DN USB3_TX4_DN USB3_TX5_DP USB3_RX4_DP USBP_C_8N USB3_RX4_DN M.2 E-Key USBP_C_8P SBV3 User's Manual | RAP310...
  • Page 25: System Memory

    DIMMs. Not all slots need to be populated. Dual Channel (DC) DIMM4 Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate. User's Manual | RAP310...
  • Page 26: Removing The Dimm Module

    Hold the card by its edges and remove it from the slot. The tabs snap automatically to the edges of the card and lock the card in place. Step 1 Step 1 Step 2 Step 2 Step 3 Step 3 User's Manual | RAP310...
  • Page 27: Expansion Slots

    4. Make sure the notch on card is aligned to the key on the socket. Battery 5. Make sure the standoff screw is removed from the standoff. M.2 Module M.2 Socket M.2 E-Key Stand-off Notch M.2 E-Key M.2 M-Key User's Manual | RAP310...
  • Page 28 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. User's Manual | RAP310...
  • Page 29: Chapter 3 - Bios Settings

    When “X” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | RAP310...
  • Page 30: Main

    The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | RAP310...
  • Page 31: Trusted Computing

    This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. Pending operation To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. User's Manual | RAP310...
  • Page 32: Nct6126D Super Io Configuration ► Serial Port 1, 2 Configuration

    Advanced Advanced NCT6126D Super IO Configuration NCT6126D Super IO Configuration ► Serial Port 1, 2 Configuration ► Serial Port 3, 4 Configuration Serial Port Serial Port Enable or disable serial port. Enable or disable serial port. User's Manual | RAP310...
  • Page 33: Nct6126D Hw Monitor

    Advanced NCT6126D HW Monitor NCT6126D HW Monitor ► Smart FAN Function This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Smart Fan Function Smart Fan Function Setting. User's Manual | RAP310...
  • Page 34: Nct6126D Hw Monitor ► Smart Fan Function ► Cpu Fan Setting

    ► Smart FAN Function ► SYS_FAN 2 Setting ► Smart FAN Function ► CPU FAN Setting NCT6126D HW Monitor NCT6126D HW Monitor ► Smart FAN Function ► SYS_FAN1 Setting ► Smart FAN Function ► SYS_FAN 3 Setting User's Manual | RAP310...
  • Page 35: Nct6126D Hw Monitor Serial Port Console Redirection

    Console Redirection By enabling Console Redirection of a COM port, the sub-menu of console redirection settings will become available for configuration as detailed in the following. User's Manual | RAP310...
  • Page 36: Console Redirection Settings

    Select serial port transmission speed: 9600, 19200, 38400, 57600 or 115200. Data Bits Select data bits: 7 bits or 8 bits. Parity Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. User's Manual | RAP310...
  • Page 37: Serial Port Console Redirection Cpu Configuration

    Chapter 3 BIOS SETTINGS Advanced Advanced CPU Configuration SATA Configuration Options User's Manual | RAP310...
  • Page 38: Network Stack Configuration

    Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | RAP310...
  • Page 39: Amd Chipset Setting

    Chapter 3 BIOS SETTINGS Advanced Advanced NvMe Configuration AMD CHIPSET Setting User's Manual | RAP310...
  • Page 40: Security

    Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. Expert Key Management Enables expert users to modify Secure Boot Policy variables without full authentication. User's Manual | RAP310...
  • Page 41: Boot

    To restore and load the optimized default values, select this field and then press <Enter>. A dia-log box will appear. Select Yes to restore the default values of all the setup options. Boot Option Priorities Rearrange the system boot order of available boot devices. User's Manual | RAP310...
  • Page 42: Updating The Bios

    MAC address should be burned or not. c. After updating unique MAC Address from manufacturing, NVM will be protected immediately after power cycle. Users cannot update NVM or MAC address. User's Manual | RAP310...
