Chipset
X

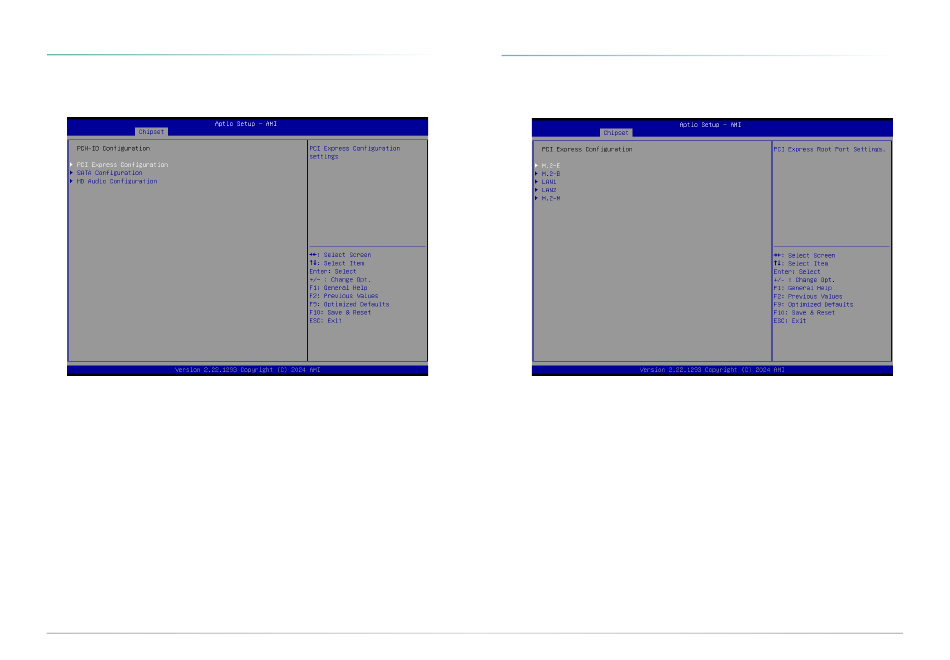

PCH-IO Configuration

PCI Express Configuration
PCI Express Configuration Settings
SATA Configuration
SATA Device Otpions Settings
HD Audio Configuration
HD Audio Subsystem Configuration Settings
User's Manual | RPS101_RPS103
Chipset
X
PCH-IO Configuration
► PCI Express Configuration
Select one of the PCI Express channels and press enter to configure the following settings.
LAN1, LAN2, LAN3, M.2-E, M.2-B, M.2-M
Control the PCI Express Root Port.
Chapter 3
BIOS SETTINGS
44
