3.2

Hardware Setup

JTAG
JTAG
JTAG
Intel
Xilinx
JTAG breakout
board
FPGA MODE

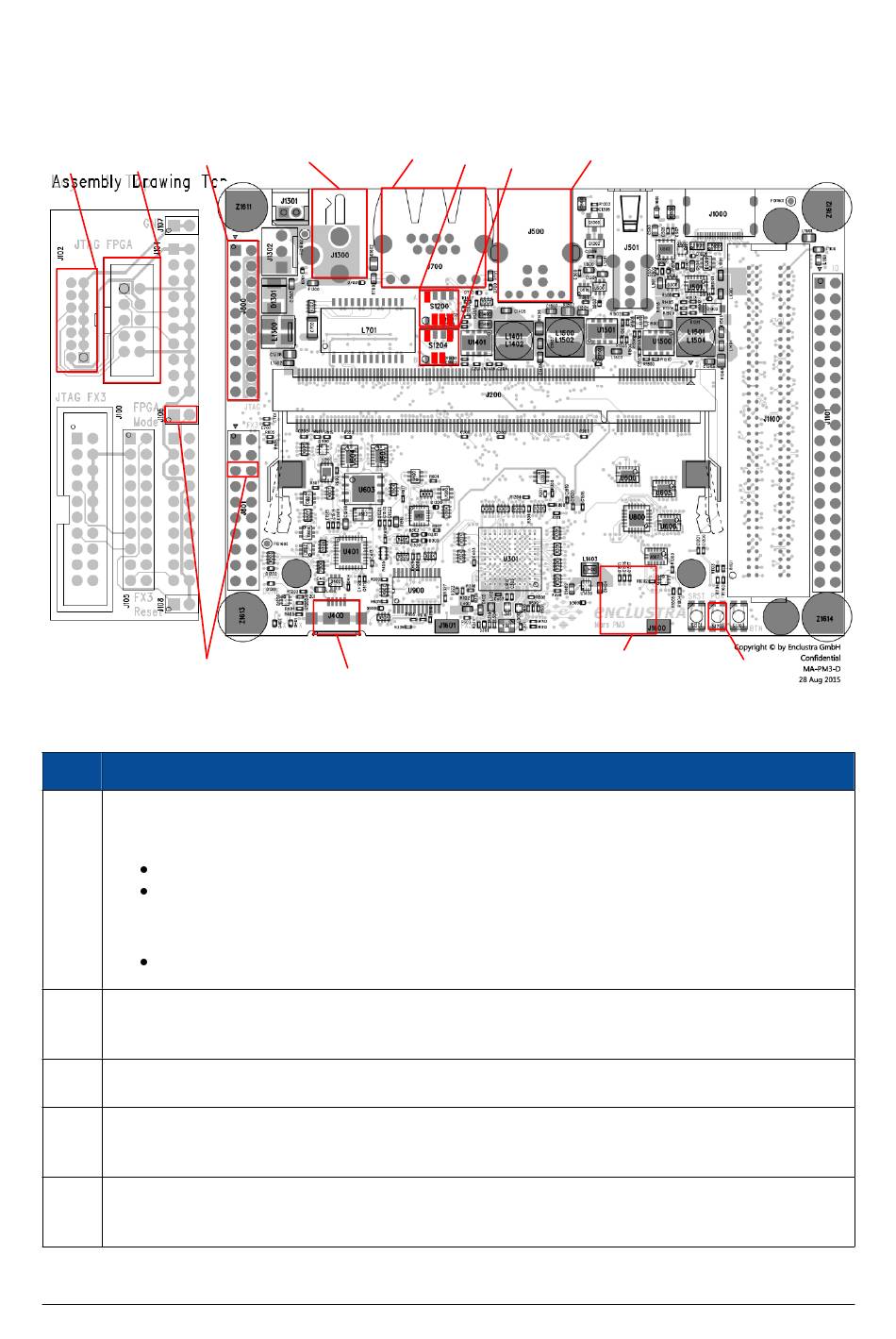

Figure 2: Mars PM3 Base Board Assembly Drawing (Top View)
Step Description
1 Set the configuration DIP switches on the Mars PM3 base board as follows (see labels
and CFG B in Figure 2):
CFG A = [1: ON, 2: OFF, 3: OFF, 4: OFF]
CFG B = [1: ON, 2: OFF, 3: OFF, 4: ON]
For Mars PM3 base board revision 4 or older, set the configuration DIP switches as follows:
CFG = [1: OFF, 2: OFF, 3: OFF, 4: OFF]
2 Make sure the SD card slot of the Mars PM3 base board is empty (see label
2).
3 Mount the Mars AX3 FPGA module to the Mars PM3 base board.
4 Connect the micro USB cable between your computer and the Mars PM3 base board. Use the
micro USB port labeled
5 Connect the 12 V DC power supply plug to the power connector of the Mars PM3 base board
(see label 12 V DC
Continued on next page...
D-0000-492-002
ETH
12 V DC
USBUB
USBUB in Figure 2.
in Figure 2).
USB
CFG A
CFG B
SD Card – on the
9 / 24 Version 2022.1_v1.0.2, 04.01.2023
POR
bottom side
SD Card
CFG A
in Figure
