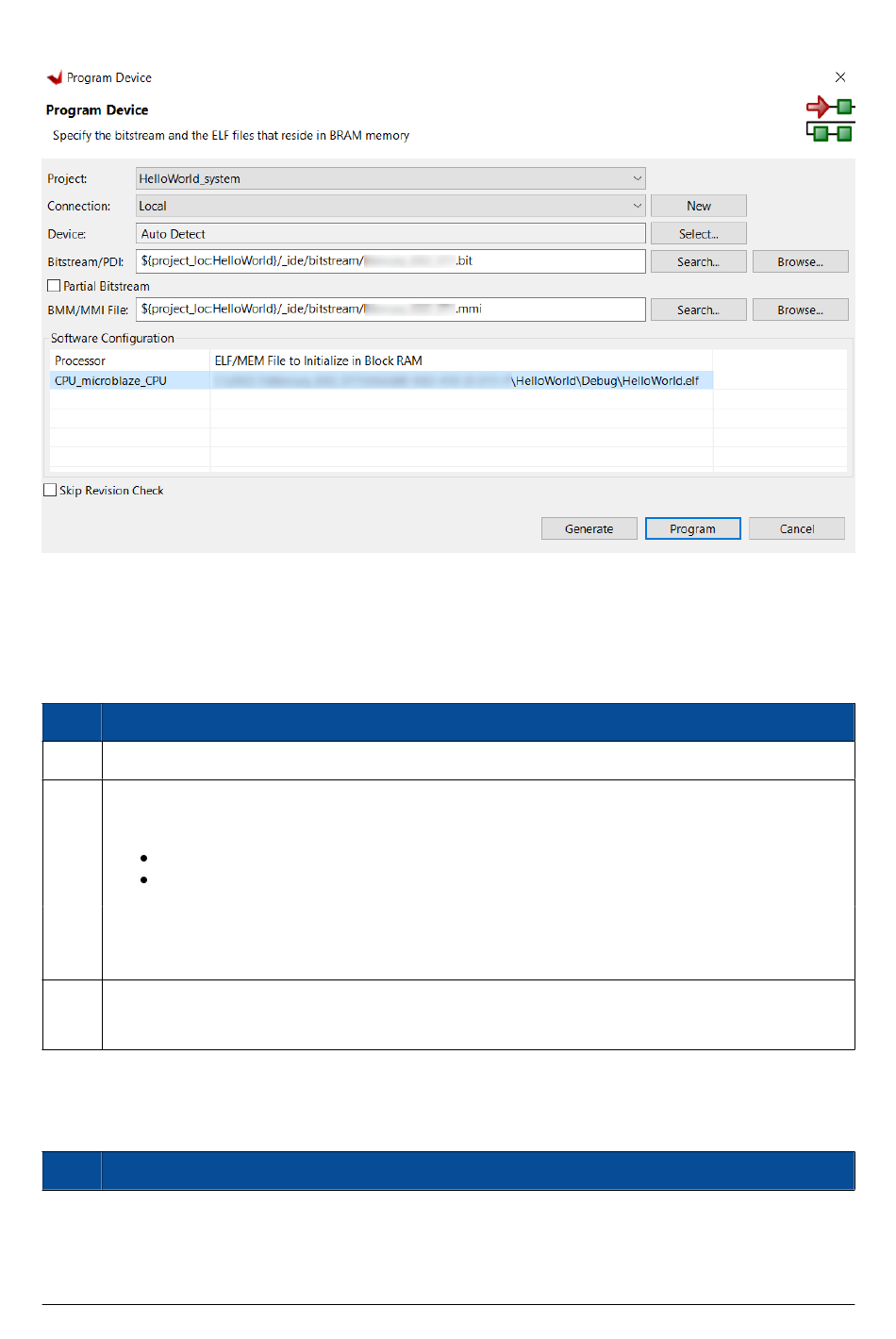

Figure 6: Initialize Block RAM settings
4.1
QSPI Flash Boot
4.1.1
Preparing the Hardware
Step
Description
1
Remove the power supply from the Mars PM3 base board (see label
2
Enable the QSPI flash boot mode by setting the configuration DIP switches on the Mars PM3
base board as follows (see labels
CFG A = [1: OFF, 2: OFF, 3: OFF, 4: OFF]
CFG B = [1: OFF, 2: OFF, 3: OFF, 4: ON]
2*)
For Mars PM3 base board revision 4 or older, enable the QSPI flash boot mode by removing
the jumper between pins 5 and 6 of J801 of Mars PM3 base board of the FPGA MODE jumper
located on the JTAG breakout board (see label
3
Connect the 12 V DC power supply plug to the power connector of the Mars PM3 base board
(see label
12 V DC
Table 9: Preparing the Hardware for QSPI Flash Boot Mode Step-by-Step Guide
4.1.2
Programming the QSPI Flash
Step
Description
Continued on next page...
D-0000-492-002
CFG A
and
in Figure 2).
17 / 24
CFG B
in Figure 2):
FPGA MODE
in Figure 2).
Version 2022.1_v1.0.2, 04.01.2023
12 V DC
in Figure 2).
