3-3 Communications Settings

3-3 Communications Settings

The methods for setting the communications with the host are described here.
The NS-Runtime can communicate to the host through Serial Port A or Serial Port B (Host
link, toolbus), Ethernet, and Controller Link.
1. Select the PT Menu – Communication Setting
2. Comm. Setting Dialog Box will be displayed.
3-3-1

Serial Port A / Serial Port B

Serial Port A / Serial Port B can communicate by means of the host link and toolbus
methods.

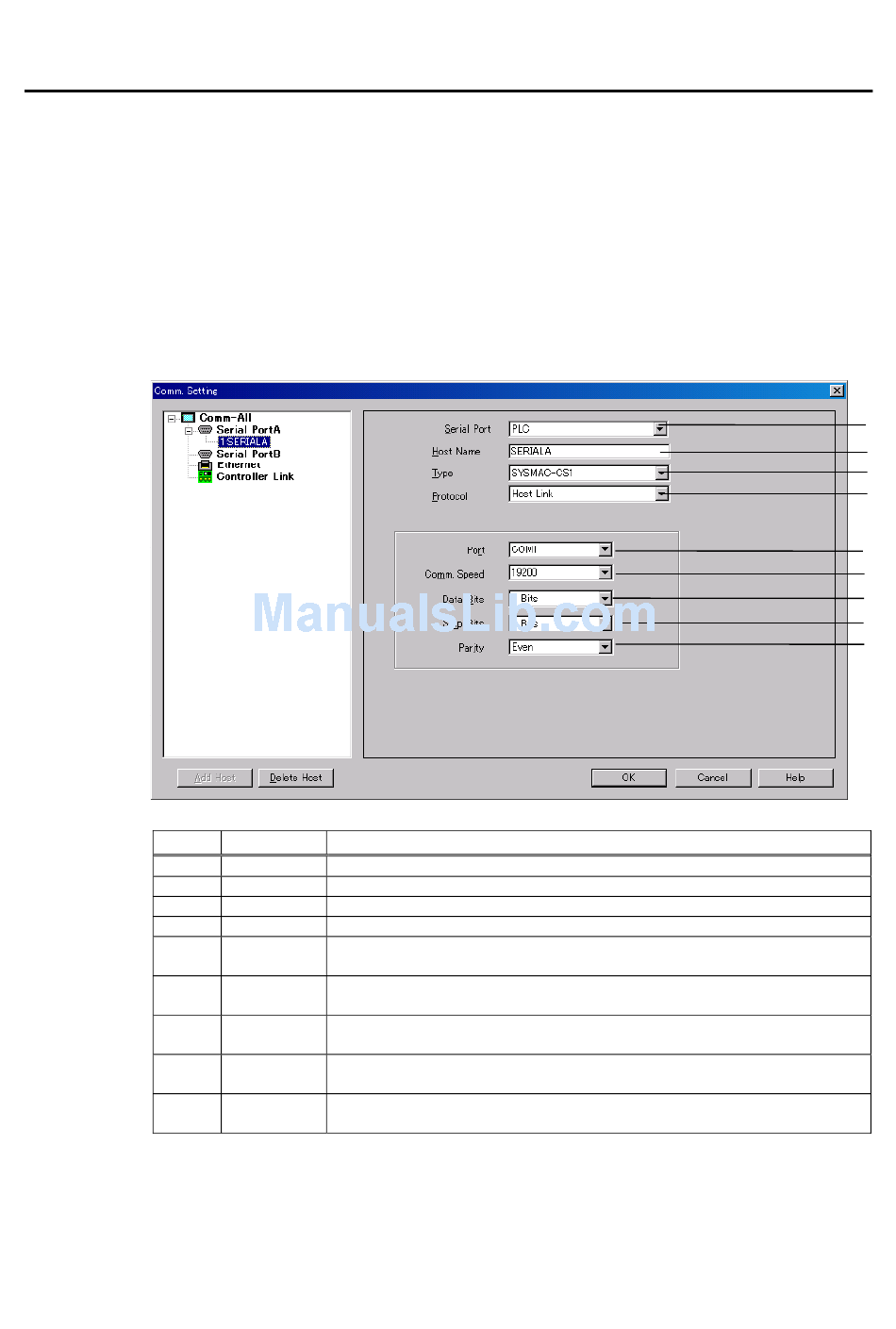

1. Select Serial Port A and Serial Port B in the Comm. Setting Dialog Box.
No.
1
2
3
4
5
6
7
8
9
3-10
Item
Serial Port Set the PLC when using a Serial Port.
Host Name Set any host name.
Type Select SYSMAC-CV, SYSMAC-CS1, SYSMAC-CJ1 or SYSMAC-CJ2.
Protocol Select Host Link or toolbus.
Port Set a COM port name that is used for communicating in the NS-Runtime
environment.
Comm. Set 19200, 38400, 57600 or 115200 for the baud rate.
Speed
Data Bits When setting Host Link for the Protocol, set 4 Bits, 5 Bits, 6 Bits, 7 Bits or 8
Bits for the data bits.
Stop Bits When setting Host Link for the Protocol, set 1 bit or 2 bits for the stop bit
length.
Parity When setting Host Link for the Protocol, set Even, Odd, None, Mark or
Space for the parity bits.
Description
1
2
3
4
5
6
7
8
9
